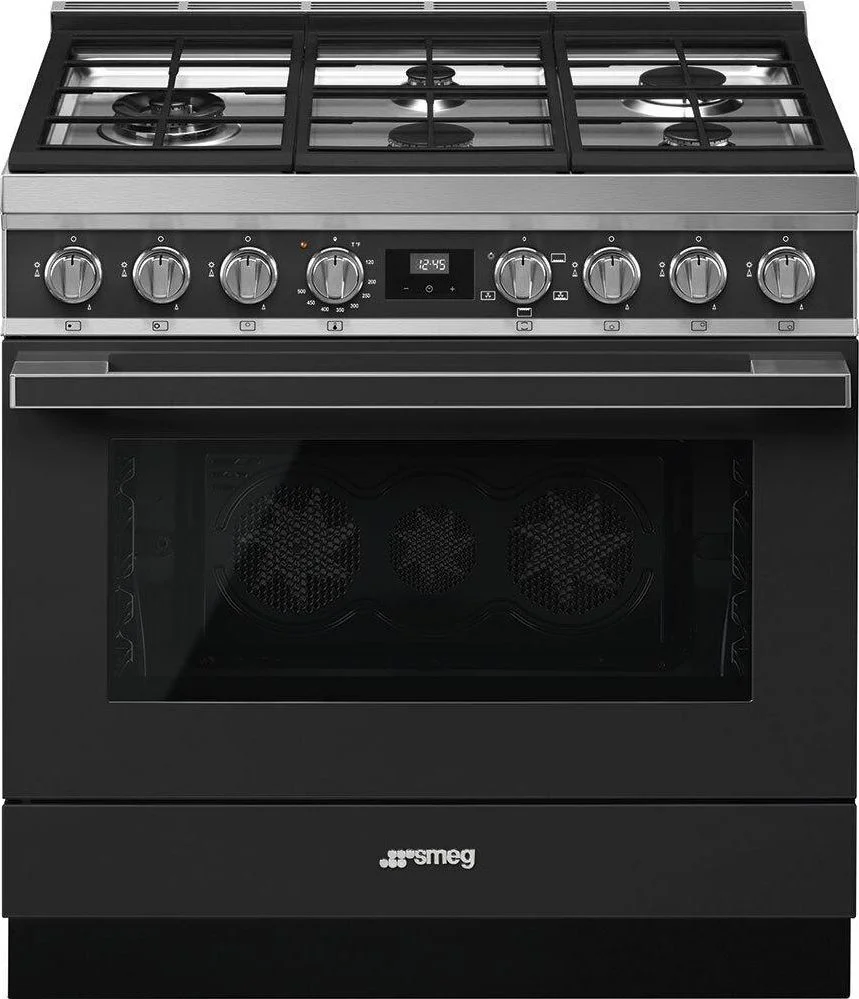

PRODUCT DESCRIPTION
PORTOFINO STYLE
Stainless steel control knobs
Triple Convection
Soft close oven door
Full-width continuous grates
Push-pull stainless steel storage compartment
GAS OVEN:
4 cooking modes
Programmable Timer with Touch display
Adjustable thermostat 120(degree) - 500(degree)F
Air-cooled triple-glazed removable door
Triple Convection
Oven capacity: 4.5 cu. ft.
Ever Clean enameled interior cavity
5 shelf positions
2 x halogen oven lights
GAS RANGETOP:
5 gas burners
Center-rear 4500 BTUs
Center-front 10500 BTUs
Right-rear 12000 BTUs
Right-front 8000 BTUs
Left double-inset super burner 20000 BTUs
Heavy-duty cast iron grates
Automatic electric ignition
LP gas conversion kit included
SAFETY:
Gas safety valves
Air-cooled door to prevent overheating
Connected load nominal power: 200W - 2 Amps
Voltage rating: 120V 60Hz
ACCESSORIES INCLUDED:
1 wok ring
1 deep oven tray
1 total-extraction telescopic guide
2 chrome shelves
1 black toe kick
Specifications
Product family
Range
Range size
36"
Range fuel
Gas
N. of ovens
1
Main oven
Gas with grill
EAN code
8017709260637
Color
Anthracite
Aesthetics
Portofino
Design
Flush mounted
Material
Painted metal
Door
With frame
Control panel finish
Metal enameled
Cooktop color
Stainless steel
Handle
Portofino
Controls color
Stainless steel
Upstand
Yes
Display
Touch
Grates
Cast Iron
Door glass type
Gray
Handle color
Colored
Control knobs
Portofino
No. of controls
8
Feet
Stainless steel
Plinth
Black
Storage compartment
Push-pull
Timer
Yes
End-of-cooking alarm
Yes
Minimum Temperature
120 (degree)F
Maximum temperature
500 (degree)F
Cooking zones
5
Zone 1 - Type
Gas - Dual ultra-rapid
Zone 2 - Type
Gas - AUX
Zone 3 - Type
Gas - Rapid
Zone 4 - Type
Gas - Rapid
Zone 5 - Type
Gas - Semi-rapid
Zone 1 - Power
20000 BTU
Zone 2 - Power
4500 BTU
Zone 3 - Power
10500 BTU
Zone 4 - Power
12000 BTU
Zone 5 - Power
8000 BTU
Burners type
Standard
Burner caps
Enameled matte black
Automatic gas ignition
Yes
Gas safety valves
Yes
Volume
0.16 cu. ft.
Cavity material
EverClean enamel
No. of shelves
5
Shelves type
Metal racks
No. of lights
2
Light type
Halogen
Light Power
40 W
Fan number
3
Time setting
Start and end
Door opening
Drop-down
Removable door
Yes
Full-glass inner door
Yes
Removable inner door
Yes
Total no. of door glasses
3
No.of thermo-reflective door glasses
2
Safety thermostat
Yes
Cooling system
Tangential
Grill type
Gas
Soft Close system
Yes
Temperature control
Electro-mechanical
Electrical connection rating
200 W
Current
2 A
Circuit breaker
15 A
Voltage
120 V
Frequency
60 Hz
Power cord length
47 1/4 "
Type of electric cable installed
Yes, Single phase
Gas Type
G20/G25 - 20/25 mbar
Dimensions
915x912x635 mm
Width
35 7/8 "
Height
36 1/16 "
Depth
25 1/16 "
Packaged dimensions
976X950X670 mm
Gross weight
265 lbs
Net weight
230 lbs
Packaged width
37 3/8 "
Packaged depth
26 3/8 "
Packaged height
38 7/16 "
Maximum stackability
4
Packaging
Cardboard box
Packaging composition - Paper
13 lbs
Packaging composition - Polystyrene
14 lbs
Packaging composition - Wood
7 lbs
Packaging composition - Plastics
1 lbs
Other gas nozzles included
G30 LPG liquid gas
Cast iron wok support
1
TOP Oven grid with back stop
2
Grill mesh
1
0.8"-deep tray
1
Telescopic Guide rails, total Extraction
1
GTIN
08017709260637
EAN
8017709260637
Product family: Range
Aesthetics: Portofino
Color: Anthracite
Main oven: Gas with grill
