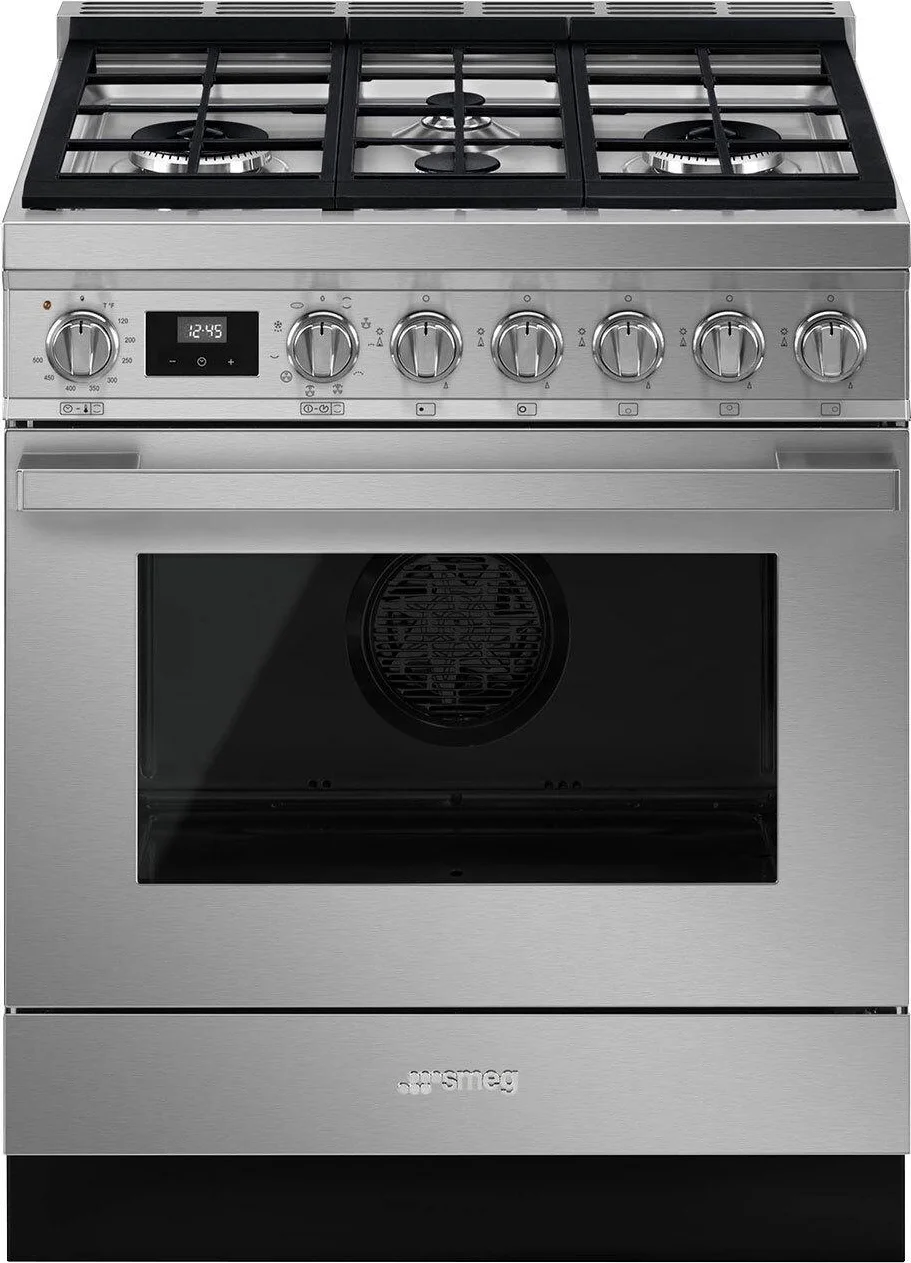

PRODUCT DESCRIPTION
PORTOFINO STYLE
Stainless steel control knobs
Soft close oven door
Full-width continuous grates
Storage compartment
MULTIFUNCTION ELECTRIC OVEN:
10 cooking modes including Pizza Function
Programmable timer with touch display
Adjustable thermostat 120(degree) - 500(degree)F
Air-cooled triple-glazed removable door
True European convection
Oven capacity: 3.6 cu. ft.
Ever Clean enameled interior cavity
4 shelf positions
2 x halogen oven lights
Bake element 1.7kW
Broil element 2.9kW
Convection element 2.7Kw
GAS RANGETOP:
4 gas burners
Diamond con guration burner layout
Center-rear 4500 BTUs
Center-front 8000 BTUs
Right super burner 20000 BTUs
Left double-inset super burner 20000 BTUs
Heavy-duty cast iron grates
Automatic electric ignition
LP gas conversion kit included
SAFETY:
Gas safety valves
Air-cooled door to prevent overheating
Connected load nominal power: 240/120V - 17 Amps
Voltage rating: 240/120V 60Hz
ACCESSORIES INCLUDED:
1 wok ring
1 deep oven tray
1 partial-extraction telescopic guide
2 chrome shelves
1 black toe kick
Specifications
Product family
Range
Range size
30"
Range fuel
Dual-fuel
N. of ovens
1
Main oven
Thermo-ventilated
EAN code
8017709256449
Color
Stainless steel
Finishing
Satin
Aesthetics
Portofino
Design
Flush mounted
Material
Stainless steel
Door
With frame
Control panel finish
Fingerprint-proof stainless steel
Cooktop color
Stainless steel
Handle
Portofino
Controls color
Stainless steel
Upstand
Yes
Display
Touch
Grates
Cast Iron
Door glass type
Gray
Handle color
Brushed stainless steel
Control knobs
Portofino
No. of controls
7
Feet
Stainless steel
Plinth
Black
Storage compartment
Storage drawer
Timer
Yes
End-of-cooking alarm
Yes
Minimum Temperature
120 (degree)F
Maximum temperature
500 (degree)F
Cooking zones
4
Zone 1 - Type
Gas - Dual ultra-rapid
Zone 2 - Type
Gas - Semi-rapid
Zone 3 - Type
AUX
Zone 4 - Type
Gas - Ultra-rapid
Zone 1 - Power
20000 BTU
Zone 2 - Power
8000 BTU
Zone 3 - Power
4500 BTU
Zone 4 - Power
20000 BTU
Burners type
Standard
Burner caps
Enameled matte black
Automatic gas ignition
Yes
Gas safety valves
Yes
Volume
0.13 cu. ft.
Cavity material
EverClean enamel
No. of shelves
4
Shelves type
Metal racks
No. of lights
2
Light type
Halogen
Light Power
40 W
Fan number
1
Time setting
Start and end
Door opening
Drop-down
Light on when door is open
Yes
Removable door
Yes
Full-glass inner door
Yes
Removable inner door
Yes
Total no. of door glasses
3
No.of thermo-reflective door glasses
2
Safety thermostat
Yes
Cooling system
Tangential
Grill type
Electric
Grill power
1700 W
Large grill - Power
2900 W
Bottom heating element - Power
1700 W
Upper heating element - Power
1200 W
Circular heating element - Power
2700 W
Soft Close system
Yes
Temperature control
Electro-mechanical
Electrical connection rating
3700 W
Current
20 A
Circuit breaker
20 A
Voltage
240/208 V
Frequency
60 Hz
Power cord length
47 1/4 "
Type of electric cable installed
Yes, Double phase
Gas Type
G20/G25 - 20/25 mbar
Dimensions
915x762x635 mm
Width
30 1/16 "
Height
36 1/16 "
Depth
25 1/16 "
Packaged dimensions
1010X870X750 mm
Gross weight
258 lbs
Net weight
230 lbs
Packaged width
34 1/4 "
Packaged depth
29 1/2 "
Packaged height
39 3/4 "
Maximum stackability
4
Packaging
Cardboard box
Packaging composition - Paper
10 lbs
Packaging composition - Polystyrene
12 lbs
Packaging composition - Wood
5 lbs
Packaging composition - Plastics
1 lbs
Other gas nozzles included
G30 LPG liquid gas
Cast iron wok support
1
Wide baking tray
1
Oven grid with back-stop, tray support
1
TOP Oven grid with back stop
1
Grill mesh
1
0.8"-deep tray
1
Telescopic Guide rails, partial Extraction
1
GTIN
08017709256449
EAN
8017709256449
