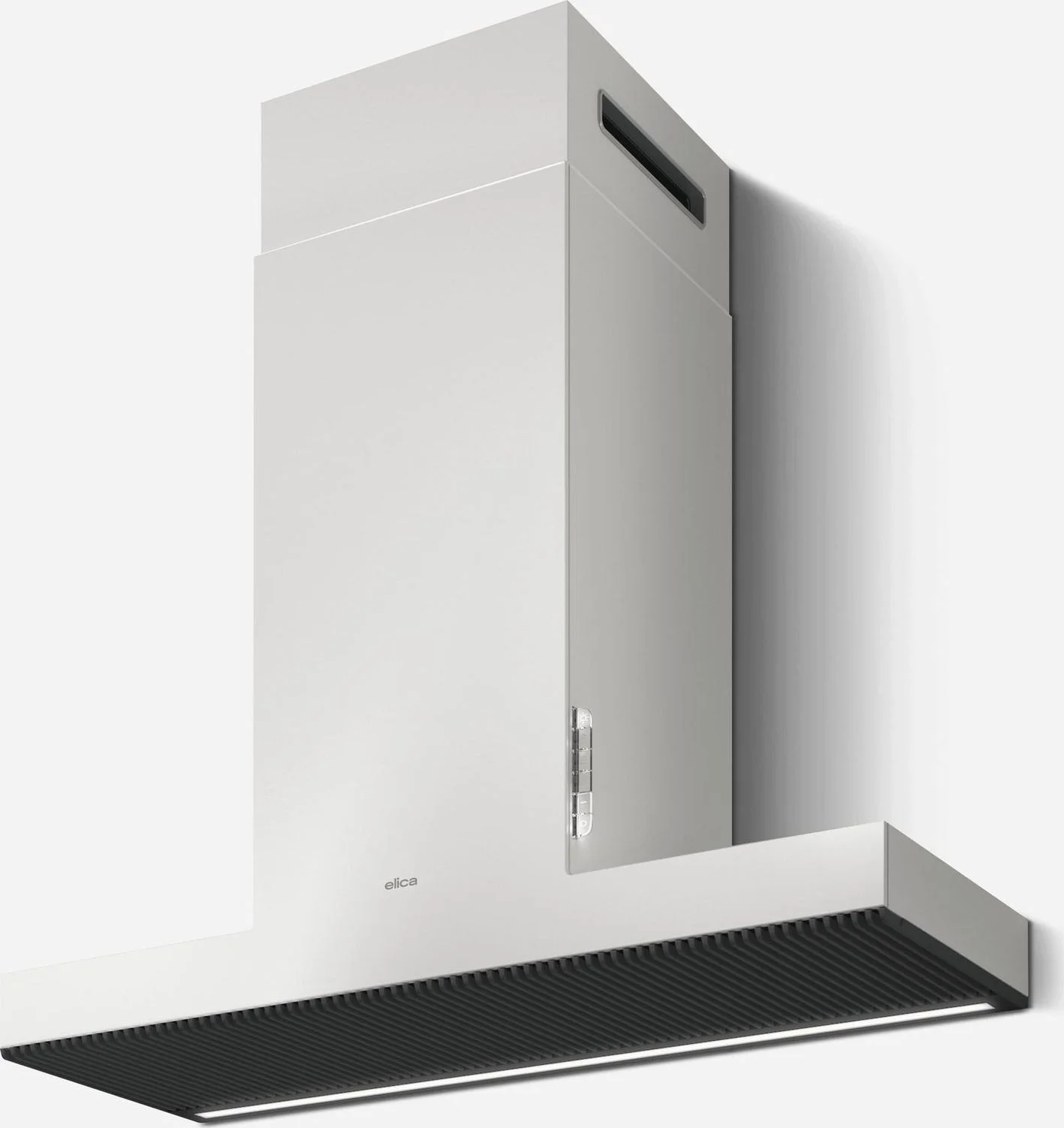

Elica 36" Convertible Ducted Wall Mount Range Hood, Iconic Series in Stainless Steel

Name: Elica EHK636WH 36" Convertible Ducted Wall Mount Range Hood, Iconic Series
Brand: Elica
SKU: EHK636WH
Price: 2219.00 USD
Availability: InStock

SKU: EHK636WH

0 Questions & 0 Answers

Width: 36.00"
Height: NaN"
Weight: NaN lbs
Type: Convertible/Ducted
Remote Control: NO
Energy Star Rated: NO
ADA Compliant: NO
Series: Iconic Series

Elica Iconic Series |Authorized Dealer

Pre-Order

$2,219.00

$2,439.00 Save$220.00

$55.48

)

color: Stainless Steel

Estimates for:

Protect Your Item

2 Year $83.99

3 Year $131.99

4 Year $155.99

5 Year $195.99

Decline

30-Days Free Returns or Exchanges

PRODUCT DESCRIPTION

Harmony and simplicity. With its reduced depth, Haiku is a particularly ergonomic product without compromising its suction capacity. The aesthetic linearity can be seen in the cast iron eff ect aluminum grilles, which strongly characterize the product. They are easy to remove and equipped with a blocking system designed to avoid accidental falls. Haiku has the only system with adjustable depth.

general specification

142 items

Warranty

3 Year Parts and In-Home Labor Warranty. Third year awarded after product registration on www.elica.com

Fracci n arancelaria

8414600100.00

SHIPPING WEIGHT (kg)

41.50

NET WEIGHT (kg)

31.70

CARTON LENGHT (mm)

781.00

CARTON HEIGHT (mm)

413.00

CARTON WIDTH (mm)

1074.00

VOLUMEN (M3)

0.35

SHIPPING WEIGHT (lb)

91.49

NET WEIGHT (lb)

69.89

CARTON LENGHT

30.75

CARTON HEIGHT

16.26

CARTON WIDTH

42.28

COUNTRY OF MANUFACTURE

QTY PACKAGE

1.00

INTENDED APPROVED USE

Residential use

Finish

Stainless steel + white KRION

Material

Stainless Steel

Color

white

Type of Ventilation

Convertible

HOODS FEATURES

Long life filter, Special Materials, Led Light, Maintenance alarm, Total Integration, Comfort silence

WIDTH (IN)

36"

WIDTH (CM)

91.44

AIRFLOW (M3/H)

1020.00

CFM (MAX)

600.00

db (min)

36.40

db (max)

55.00

SONES

1.8 - 6.8

EXHAUST VERSION

Convertible with Kit

EXHAUST SIZE

Round 6"

DUCT SHAPE

Round

EXHAUST LOCATION

Top Only

RECTANGULAR DUCTH HEIGHT

RECTANGULAR DUCT WIDTH

Round duct diameter

ELECTRIC (VOLTS)

120.00

AMPERAGE

3.8 A

HERTZ

60.00

WATTS

460.00

LIGHTING

Strip LED 1 x 7 W 3500 K

BULB TYPE

Strip LED

BULB INCLUDED

YES

NUMBER OF LIGHTS

1.00

BULB WATTS

7.00

KELVINS

3500.00

GREASE FILTER TYPE

Sophisticated Black Iron Grates + 6 Layer Aluminium Mesh Filter

DISHWASHERSAFE FILTER

YES

FILTER MATERIAL

Iron

BLOWER TYPE

Interior Unit

CONTROL TYPE

Sensitive Touch Control with Backlight

SPEED CONTROL

YES

NUMBER OF SPEEDS

3 + booster

REMOTE CONTROL

POWER SOURCE

Power Cord

OUTDOOR USE

SMUDGE RESISTANT

PANEL READY

RECIRCULATION KIT NEEDED

YES

CFM REDUCTION

DIMENSIONS (CM)

91.44 W x 32.00 D x 81.28-124.46 H

DIMENSIONS (INCH)

36" W x 12 3/5 D x 32 - 49"H

ADJUSTABLE HEIGHT

YES

Overall Height - Top to Bottom

32 -49

Overall Width - Side to Side2

36"

Overall Depth - Front to Back

Hood Height

32"

Min - Max Compatible Ceiling Height (Cover electronic cooking)

7'3"

Min - Max Compatible Ceiling Height ( Cover gas cooking)

10'1"

Minimum Height Above Cooktop (ELECTRIC)

Minimum Height Above Cooktop (GAS)

Maximum Height Above Cooktop

36"

Chimney Width - Side to Side

12"

Chimney Depth - Front to Back

12"

Chimney Height - Top to Bottom

RECIRCULATION KIT

Long Life Recirculating Carbon Filter

CFC0141725AUL

Recirculation (400 CFM) 2 round carbon filters

Recirculation (400 CFM) Contains 6 deflector & 3 carbon filters

Recirculation (600 CFM) Contains 6 deflector, 3 flat carbon filters & clips

Recirculation (600 CFM) Contains 6 deflector & 2 carbon filters

Recirculation (600 CFM) 2 round carbon filters

Recirculation (600 CFM) 4 round carbon filters

Recirculation (600 CFM) 6 round carbon filters

Recirculation (600 CFM) 6 round Deflector

Recirculation (1200 CFM) 4 round deflector

Recirculation (1200 CFM) 4 round carbon filters

Recirculation (1200 CFM) (8 round deflector)

Long Chimney Ext/Chimney extension

Chimney extension Can reach 8 8 - 12 4 (ducted), 9 0 -12 8 (recirculating)

Chimney extension Can reach 7 9 - 10 9 (ducted), 8 1 -11 1 (recirculating)

Chimney extension Reaches ceiling heights 8 5 -12 1 (ducted), 9 1 -12 5 (recirculating)

Chimney extension Reaches ceiling heights 7 5 -10 3 (ducted), 8 2 -10 11 (recirculating)

Long Chimney Extension(6 )

Long Chimney Extension(11 )

Long Chimney Extension(12 )

Long Chimney Extension(13 )

Long Chimney Extension (6 with grates)

TELESCOPIC DUCT COVER

DUCT TRANSITION

TRANSITION REDUCER KIT 10 round down to 8 round - attaches to 10 round transition

BACKDRAFT DAMPER

NON RETURN VALVE

UPGRADE FILTER

RECIRCULATION DUCT COVERS

RECIRCULATION DEFLECTOR

RECIRCULATION FILTERS

CFM REDUCTION KIT

BACKSPLASH KIT

INTERNAL BLOWER

INLINE BLOWER

EXTERNAL BLOWER

INLINE BLOWER SHELL KIT (600 CFM)

INLINE BLOWER SHELL KIT (1200 CFM)

EXTERNAL BLOWER SHELL KIT

HEAT LAMPS

SPACER/LINER

Hood Liner for 30

Hood Liner for 36

Hood Liner for 48"

WALL MOUNT BRACKET

HIGH CEILING EXTENSION KIT

REMOTE CONTROL KIT

Duct cover extension 6

Duct cover extension 18

ELECTRONIC CFM

REDUCTION BYPASS

ETL

UL listed

AHAM verified

TITLE 24

Prop65 Disclosure

YES

ENERGY STAR

WIFI CAPABLE

COMERCIAL USE APPROVED

ADA COMPLIANT

APP CAPABLE

VENTILATION DIRECTION

HORIZONTAL

SMART COMPATIBLE

FITLER INDICATOR LIGHT

YES

HEAT SENSOR

CHAROCAL FILTER

YES

NOM CERTIFICATION

Activo

GS1

3 items

GTIN

00190603003925

EAN

0190603003925

UPC

190603003925

Documents

Manual

PDF

Specsheet

PDF
