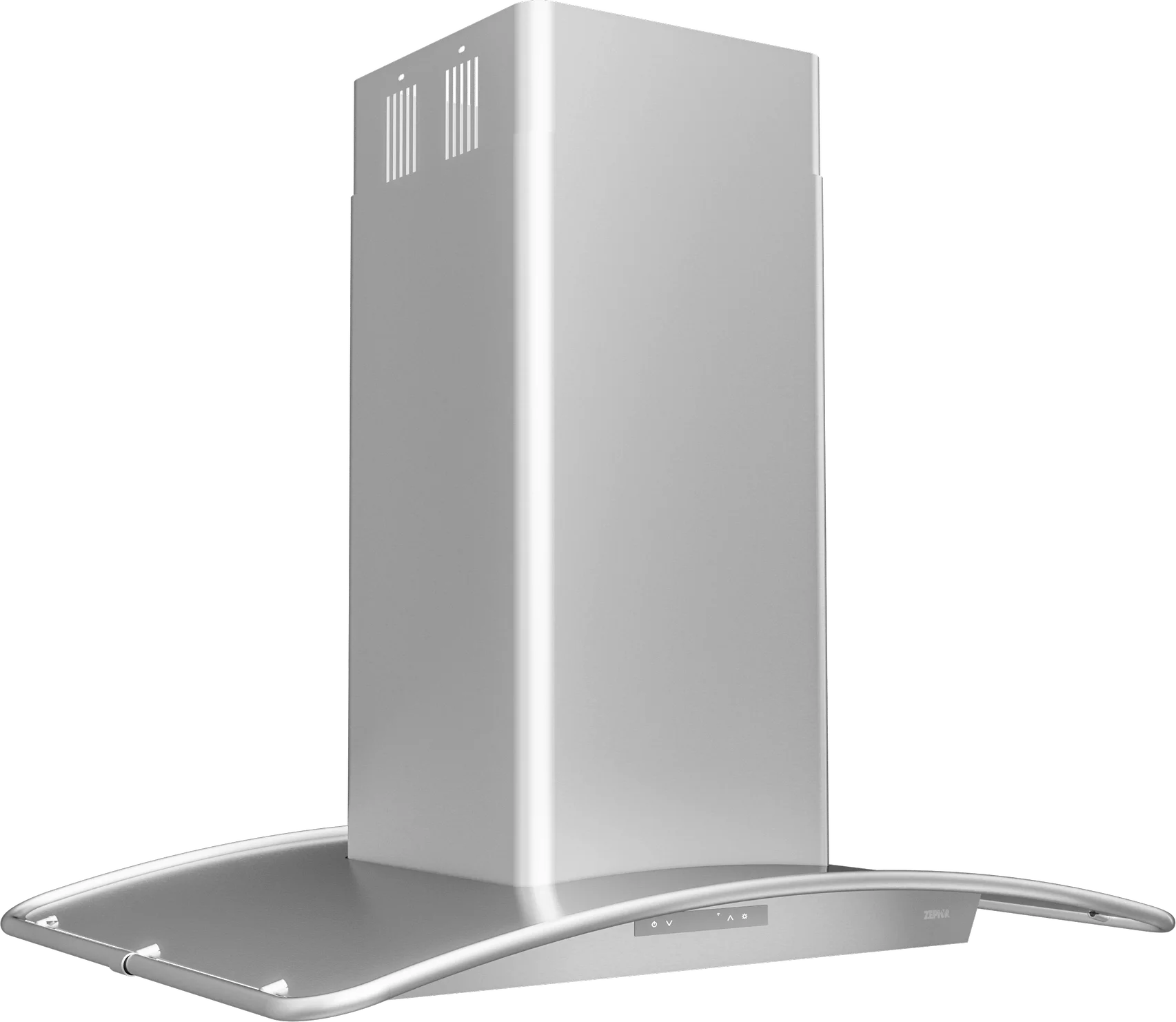

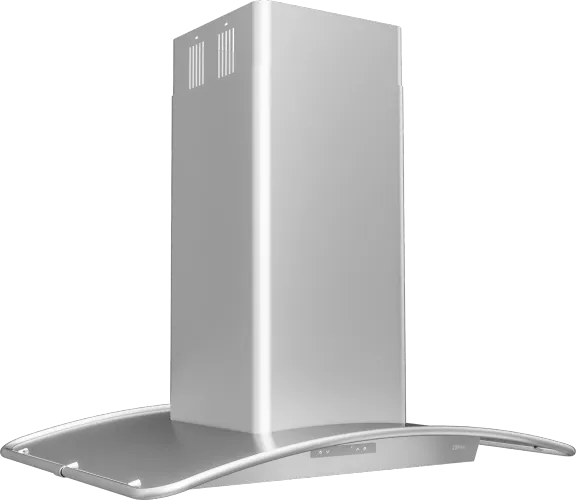

Zephyr 36" Ducted Island Mount Range Hood, Core Collection in Stainless Steel

SKU: ZMLM90CS

0 Questions & 0 Answers

Width: 35.18"
Type: Ducted
Height: 28.50"
Depth: 25.56"
Ventilation Type: Convertible
ADA Compliant: Yes, with optional remote
Energy Star Rated: No
Cooking Power: 600 Watts
Series: Core Collection

Zephyr Core Collection |Authorized Dealer

Pre-Order

$2,099.00

$2,249.00 Save$150.00

⚡️ 2X reward points available

Sign in / Sign up to earn 4,198 points (

$104.95

)

color: Stainless Steel

Zephyr ZMLM90CS

Estimates for:

Protect Your Item

2 Year FREE

3 Year $131.99

4 Year $155.99

5 Year $195.99

Decline

30-Days Free Returns or Exchanges

PRODUCT DESCRIPTION

Milano Connect Island, 90cm, SS, LED, ACT

general specification

67 items

Brand

Zephyr

Manufacturer

Zephyr

Category

Range Hood

Sub-Category

Island

Vent Type

Convertible

UPC

646328008443

GTIN

00646328008443

Country of Origin

Taiwan

Model Group

ZML-C

Model Name

Milano Island

Collection

Core Collection

Blower Included

Yes

Blower CFM w/ACT

590, 390, 290

Internal Blower 1 CFM

700

Internal Blower 1 Min. Sones

0.8

Internal Blower 1 Max Sones

6

Minimum CFM

200

Installation Type

Island

For Outdoor Use

No

Color

Stainless Steel

Controls Type

Proximity Touch

Blower Speeds

6

Automatic Delay-Off

Yes

Clean Air Function

Yes

Lighting Type

LED

Lights Quantity

4

Watts Per Bulb

6

Lights Levels

3

Grease Filter Type

Mesh

Compatible Mesh or Baffle Filter Part Number

50200043

Duct Discharge

Vertical

Duct Size; Vertical; IN

8

Mounting Height Above Cooktop; IN

24 - 36

Voltage

120

Maximum Amperage

5

ADA Compliant

Yes, with optional remote

Warranty Parts / Labor

3 / 1

Compatible Appliances

14000005, ZRC-00ML, Z1C-03ML, MUA008A, Z0F-C002

Bluetooth Connected

No

Wi-Fi Connected

Yes

Remote Included

No

Remote Optional

Yes

Energy Star Certified

No

Alexa & Google Home Compatible

Yes

CEC Title 20 Compliant

Yes

Primary Material

Stainless Steel

Wattage

600

Certification

UL

Nominal Width; IN

36

Net Width; IN

35.2

Net Depth; IN

25.56

Net Height; IN

28.5 - 50

Weight; LBS

94.000

Ceiling Height Minimum

8 ft.

Ceiling Height Maximum

10 ft.

Chimney Height in.

24.5

Chimney Width in.

12.93

Chimney Depth in.

12.75

Shipping Length; IN

43.11

Shipping Width; IN

31.18

Shipping Height; IN

24.21

Shipping Weight; LBS

104.9

Shipping Method

LTL

Freight Class

250

Certification #

E127334

Clean Filter Alert

Yes

Duct Type

Vertical

GS1

3 items

GTIN

00646328008443

EAN

0646328008443

UPC

646328008443

Documents

Prop 65

PDF

Warranty Document

PDF

Installation Manual

PDF

Specifications Sheet

PDF

Exploded View Diagram

PDF
