PRODUCT DESCRIPTION
Specifications
Brand
Zephyr
Manufacturer
Zephyr
Category
Range Hood
Sub-Category
Island
Vent Type
Ducted
UPC
646328003523
GTIN
00646328003523
Country of Origin
Taiwan
Model Group
CTP-B
Model Name

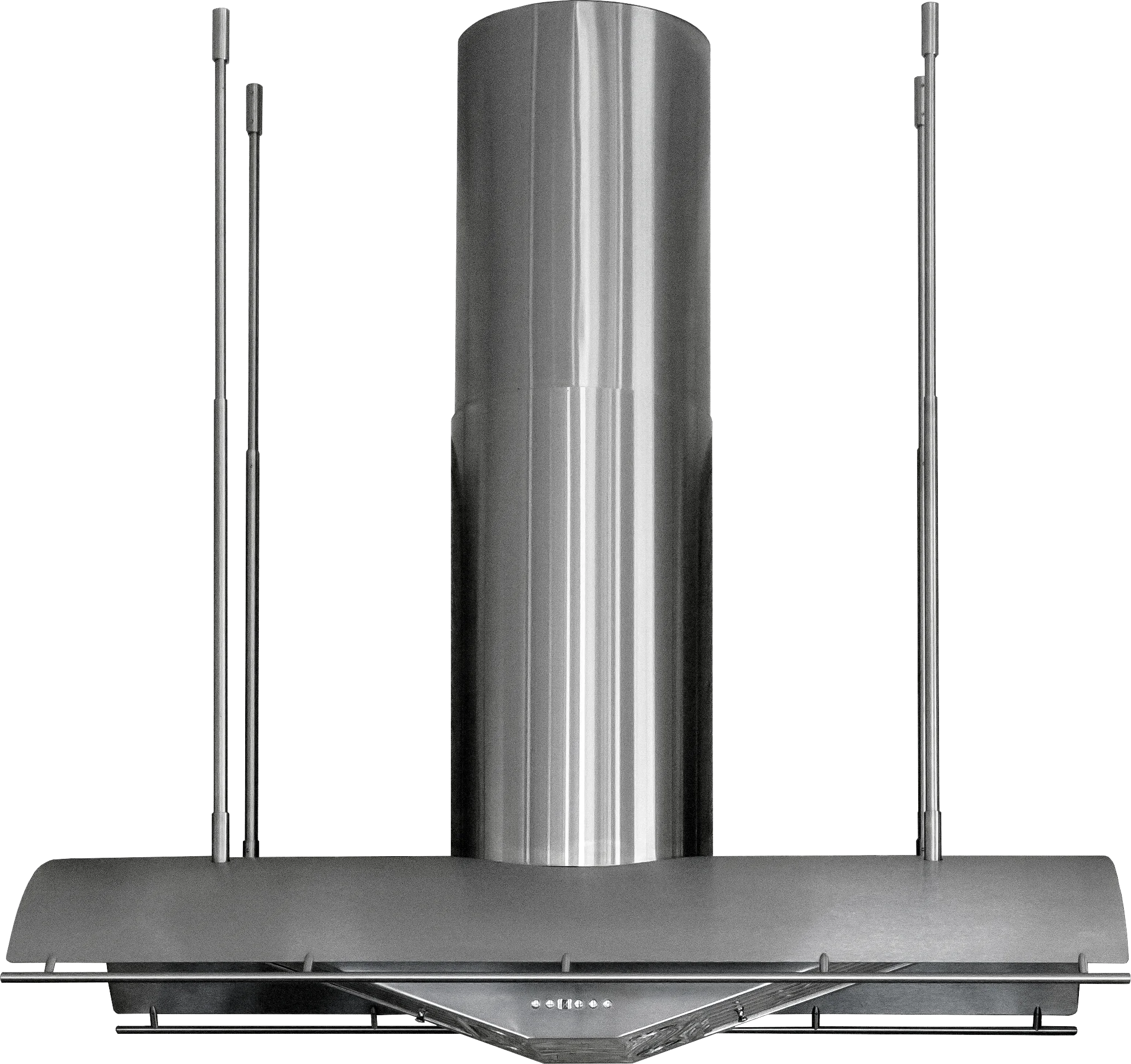

Trapeze Island
Collection
Designer Collection
Replacement Model
CTP-E48CSX
Blower Included
No
Internal Blower 1 CFM
290
Internal Blower 1 Min. Sones
1.4
Internal Blower 1 Max Sones
3
Internal Blower 2 CFM
600
Internal Blower 2 Max Sones
6
In-Line Blower CFM
1000
External Blower CFM
1000
Minimum CFM
240
Installation Type
Island
For Outdoor Use
No
Color
Stainless Steel
Controls Type
Electronic
Blower Speeds
3
Automatic Delay-Off
Yes
Clean Air Function
No
Lighting Type
LED
Lights Quantity
4
Watts Per Bulb
6
Lights Levels
2
Grease Filter Type
Pro baffle
Compatible Mesh or Baffle Filter Part Number
50210022
Duct Discharge
Vertical
Duct Size; Horizontal; IN
N/A
Duct Size; Vertical; IN
8
Mounting Height Above Cooktop; IN
26 - 36
Voltage
120
Maximum Amperage
6.5
ADA Compliant
Yes, with optional remote
Warranty Parts / Labor
3 / 1
Compatible Appliances
Z1C-00TP, 14000005, MUA008A, MUA010A
Bluetooth Connected
No
Wi-Fi Connected
No
Remote Included
No
Remote Optional
Yes
Energy Star Certified
No
Alexa & Google Home Compatible
No
CEC Title 20 Compliant
Yes
Primary Material
Stainless Steel
Wattage
426
Certification
UL
Nominal Width; IN
48
Net Width; IN
48
Net Depth; IN
26.625
Net Height; IN
34 - 52
Weight; LBS
84
Ceiling Height Minimum
8 ft.
Ceiling Height Maximum
10 ft.
Chimney Height in.
25
Chimney Width in.
12.62
Chimney Depth in.
12.62
Shipping Length; IN
29.53
Shipping Width; IN
51.97
Shipping Height; IN
26.38
Shipping Weight; LBS
116
Shipping Method
LTL
Freight Class
250
Certification #
E127334
Clean Filter Alert
Yes
Duct Type
Vertical
GTIN
00646328003523
EAN
0646328003523
UPC
646328003523
Multiple Blower Options
Bloom(TM) HD LED Light Bulbs
Directional Lighting
Professional Baffle Filters
Electronic Touch Controls
Optional wireless remote control
Optional Extension Duct Cover Kit
