Model Name

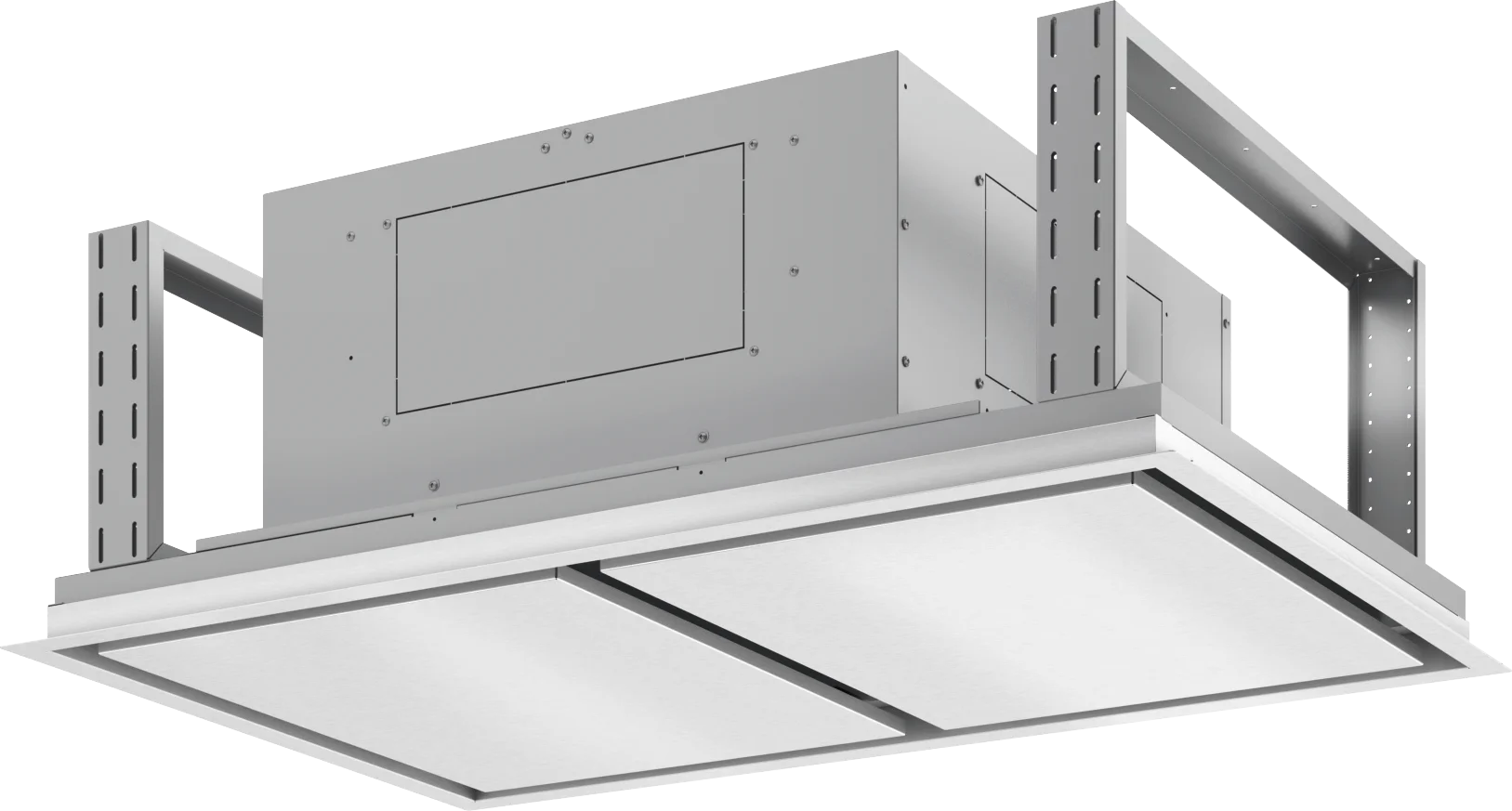

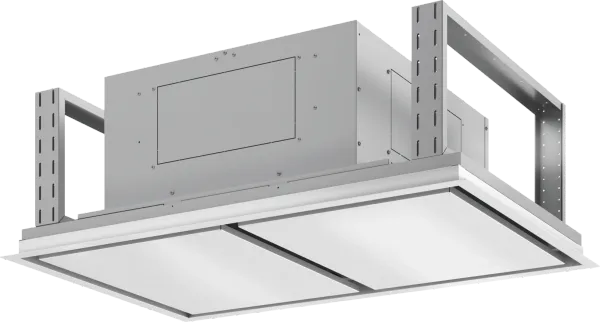

Lux Connect Island
Collection
Designer Collection
Internal Blower 1 CFM
290
Internal Blower 1 Min. Sones
1.4
Internal Blower 1 Max Sones
3
Internal Blower 2 CFM
600
Internal Blower 2 Max Sones
6
Internal Blower 3 CFM
1100
Internal Blower 3 Max Sones
8
Controls Type
Capacitive Touch
Compatible Mesh or Baffle Filter Part Number
50200046
Duct Discharge
Vertical or Horizontal
Duct Size; Horizontal; IN
6, 10
Duct Size; Vertical; IN
6, 10
Mounting Height Above Cooktop; IN
30 - 72
Warranty Parts / Labor
3 / 1
Compatible Appliances
CBI-290C, CBI-600A, PBI-1100B, PBN-1000A, CBE-1000, CBI-390A, ZRC-01LX, MUA006A, MUA008A, Z0F-C002, 14000005
Alexa & Google Home Compatible
Yes
CEC Title 20 Compliant
Yes
Primary Material
Stainless Steel
Net Height; IN
14.375 - 23.875
Ceiling Height Minimum
6 ft.
Ceiling Height Maximum
9 ft.
Shipping Weight; LBS
90.4
