PRODUCT DESCRIPTION

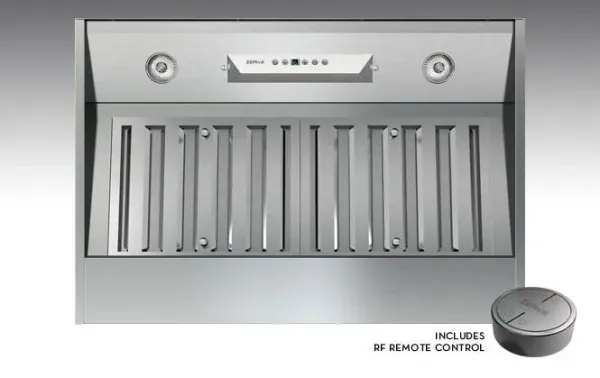

Monsoon I has taken the standard one-piece liner to the next level with innovative features that enhance performance and are easy to maintain.
Some key features:
For a full list of features and installation dimensions, please download the Monsoon I spec sheet.
Specifications
Brand
Zephyr
Manufacturer
Zephyr
Category
Range Hood
Sub-Category
Insert
Vent Type
Ducted
UPC
646328002601
GTIN
00646328002601
Country of Origin
Taiwan
Model Group
AK92
Model Name
Monsoon I Insert
Collection
Core Collection
Replacement Model
AK9228BS
Blower Included
Yes
Blower CFM w/ACT
390, 290
Internal Blower 1 CFM
600
Internal Blower 1 Min. Sones
1
Internal Blower 1 Max Sones
6
Minimum CFM
200
Installation Type
Insert
For Outdoor Use
No
Color
Stainless Steel
Controls Type
Electronic
Blower Speeds
6
Automatic Delay-Off
Yes
Clean Air Function
Yes
Lighting Type
Halogen
Lights Quantity
2
Watts Per Bulb
35
Lights Levels
2
Grease Filter Type
Pro baffle
Compatible Mesh or Baffle Filter Part Number
50210013
Duct Discharge
Vertical or Horizontal
Duct Size; Horizontal; IN
8, 3.25 x 10
Duct Size; Vertical; IN
8
Mounting Height Above Cooktop; IN
26 - 36
Voltage
120
Maximum Amperage
5
ADA Compliant
Yes
Warranty Parts / Labor
3 / 1
Compatible Appliances
MUA006A, Z0B0040, 14000005
Bluetooth Connected
No
Wi-Fi Connected
No
Remote Included
Yes
Remote Optional
No
Energy Star Certified
No
Alexa & Google Home Compatible
No
CEC Title 20 Compliant
Yes
Primary Material
Stainless Steel
Wattage
600
Certification
UL
Nominal Width; IN
30
Net Width; IN
28.375
Net Depth; IN
19.25
Net Height; IN
12
Weight; LBS
38.1
Ceiling Height Minimum
8 ft.
Ceiling Height Maximum
12 ft.
Shipping Length; IN
17.32
Shipping Width; IN
31.93
Shipping Height; IN
25.88
Shipping Weight; LBS
47.5
Shipping Method
Small Parcel
Freight Class
150
Duct Type
Vertical
GTIN
00646328002601
EAN
0646328002601
UPC
646328002601
Documents
