PRODUCT DESCRIPTION
Specifications
Brand
Zephyr
Manufacturer
Zephyr
Category
Range Hood
Sub-Category
Insert
Vent Type
Convertible
UPC
646328009884
GTIN
00646328009884
Country of Origin
Taiwan
Model Group
AK81-B
Model Name

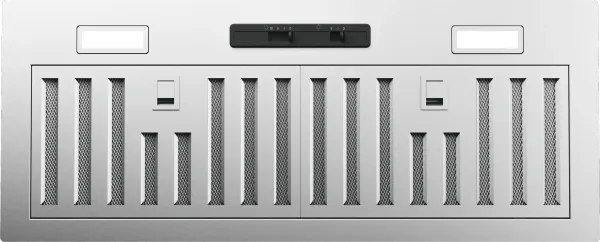

Tornado I Insert
Collection
Core Collection
Blower Included
Yes
Internal Blower 1 CFM
600
Internal Blower 1 Min. Sones
1.4
Internal Blower 1 Max Sones
6
Minimum CFM
200
Installation Type
Insert
For Outdoor Use
No
Color
Stainless Steel
Controls Type
Mechanical Slide
Blower Speeds
3
Automatic Delay-Off
No
Clean Air Function
No
Lighting Type
LED
Lights Quantity
2
Watts Per Bulb
6
Lights Levels
2
Grease Filter Type
Hybrid Baffle
Compatible Mesh or Baffle Filter Part Number
Z0F-B002
Duct Discharge
Vertical or Horizontal
Duct Size; Horizontal; IN
6
Duct Size; Vertical; IN
6
Mounting Height Above Cooktop; IN
20 - 34
Voltage
120
Maximum Amperage
3
ADA Compliant
Yes, with optional wall switch
Warranty Parts / Labor
10 / 1
Compatible Appliances
ZRC-0080, Z0F-C008, AK0800AS, AK0836AS, MUA006A
Bluetooth Connected
No
Wi-Fi Connected
No
Remote Included
No
Remote Optional
No
Energy Star Certified
No
Alexa & Google Home Compatible
No
CEC Title 20 Compliant
Yes
CEC Title 24 Compliant
Yes
Primary Material
Stainless Steel
Wattage
360
Certification
UL
Nominal Width; IN
28
Net Width; IN
27.5625
Net Depth; IN
11.1875
Net Height; IN
10.5
Weight; LBS
21.6
Ceiling Height Minimum
8 ft.
Ceiling Height Maximum
12 ft.
Shipping Length; IN
31
Shipping Width; IN
15
Shipping Height; IN
17
Shipping Weight; LBS
26
Shipping Method
Small Parcel
Freight Class
150
Certification #
E127334
Clean Filter Alert
No
Cutout Depth in.
10.625
Cutout Width in.
26.875
Duct Type
Vertical
GTIN
00646328009884
EAN
0646328009884
UPC
646328009884
LumiLight LED Lighting
Powerful 600-CFM Blower
Hybrid Baffle Filters
Mechanical Slide Controls
Dual-Level Lighting
Optional Liner Accessories Available
Optional Ductless Recirculating Kit
