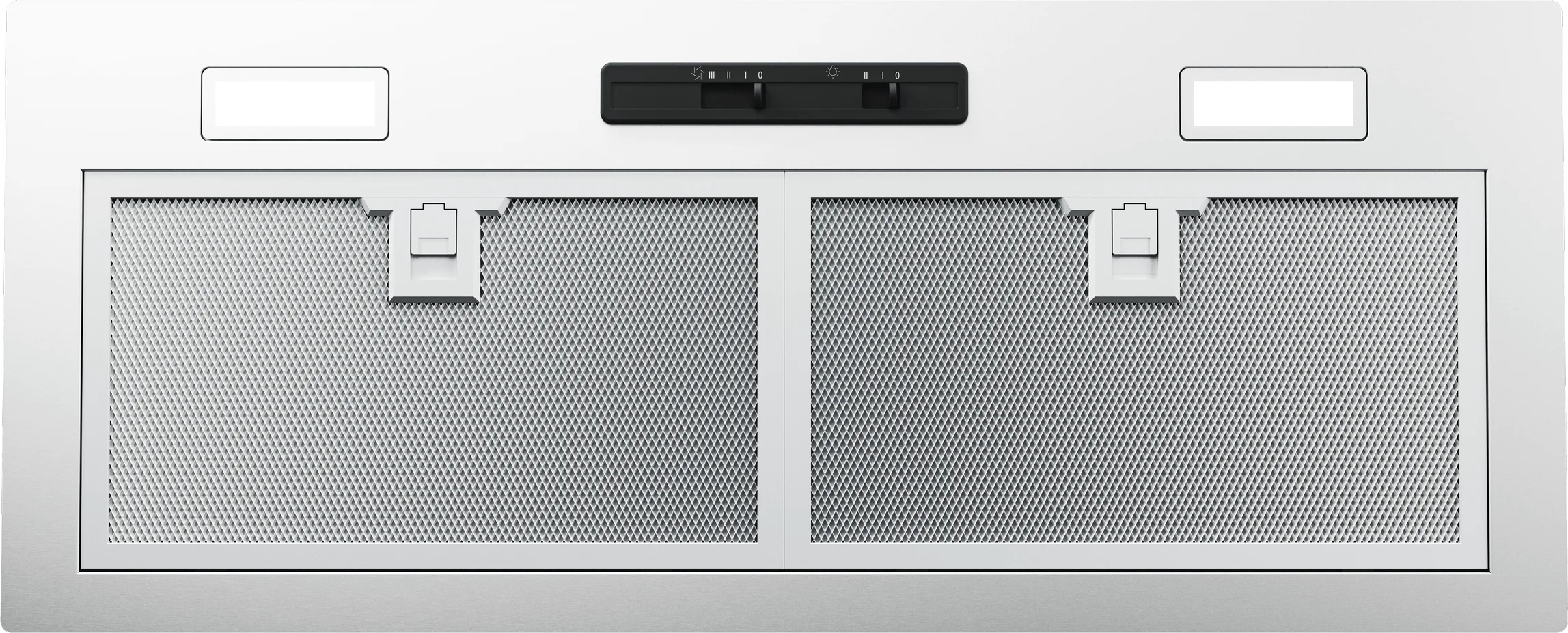

Zephyr 28" Convertible Ducted Insert Hood, Core Collection in Stainless Steel

SKU: AK8000CS

0 Questions & 0 Answers

Width: 27.56"
Type: Convertible/Ducted
Height: 15.50"
Depth: 11.18"
Ventilation Type: Convertible
ADA Compliant: Yes, with optional wall switch
Energy Star Rated: No
Cooking Power: 360 Watts
Series: Core Collection

Zephyr Core Collection |Authorized Dealer

In Stock | Only 2 left

$499.00

$549.00 Save$50.00

⚡️ 2X reward points available

Sign in / Sign up to earn 998 points (

$24.95

)

color: Stainless Steel

Zephyr AK8000CS

Estimates for:

Protect Your Item

2 Year FREE

3 Year $75.99

4 Year $95.99

5 Year $139.99

Decline

30-Days Free Returns or Exchanges

PRODUCT DESCRIPTION

Twister, Power Pack, 27-9/16", SS, 400 CFM

general specification

67 items

Brand

Zephyr

Manufacturer

Zephyr

Category

Range Hood

Sub-Category

Insert

Vent Type

Convertible

UPC

646328009877

GTIN

00646328009877

Country of Origin

Taiwan

Model Group

AK80-C

Model Name

Twister Insert

Collection

Core Collection

Blower Included

Yes

Internal Blower 1 CFM

400

Internal Blower 1 Min. Sones

1.4

Internal Blower 1 Max Sones

5

Minimum CFM

200

Installation Type

Insert

For Outdoor Use

No

Color

Stainless Steel

Controls Type

Mechanical Slide

Blower Speeds

3

Automatic Delay-Off

No

Clean Air Function

No

Lighting Type

LED

Lights Quantity

2

Watts Per Bulb

6

Lights Levels

2

Grease Filter Type

Mesh

Compatible Mesh or Baffle Filter Part Number

Z0F-B002

Duct Discharge

Vertical or Horizontal

Duct Size; Horizontal; IN

6

Duct Size; Vertical; IN

6

Mounting Height Above Cooktop; IN

20 - 34

Voltage

120

Maximum Amperage

3

ADA Compliant

Yes, with optional wall switch

Warranty Parts / Labor

10 / 1

Compatible Appliances

ZRC-0080, Z0F-C008, AK0800AS, AK0836AS

Bluetooth Connected

No

Wi-Fi Connected

No

Remote Included

No

Remote Optional

No

Energy Star Certified

No

Alexa & Google Home Compatible

No

CEC Title 20 Compliant

Yes

CEC Title 24 Compliant

Yes

Primary Material

Stainless Steel

Wattage

360

Certification

UL

Nominal Width; IN

28

Net Width; IN

27.5625

Net Depth; IN

11.1875

Net Height; IN

10.5

Weight; LBS

21.6

Ceiling Height Minimum

8 ft.

Ceiling Height Maximum

12 ft.

Shipping Length; IN

31

Shipping Width; IN

15

Shipping Height; IN

17

Shipping Weight; LBS

25

Shipping Method

Small Parcel

Freight Class

150

Certification #

E127334

Clean Filter Alert

No

Cutout Depth in.

10.625

Cutout Width in.

26.875

Duct Type

Vertical

GS1

3 items

GTIN

00646328009877

EAN

0646328009877

UPC

646328009877

Documents

Prop 65

PDF

Warranty Document

PDF

Installation Manual

PDF

Specifications Sheet

PDF

Exploded View Diagram

PDF
