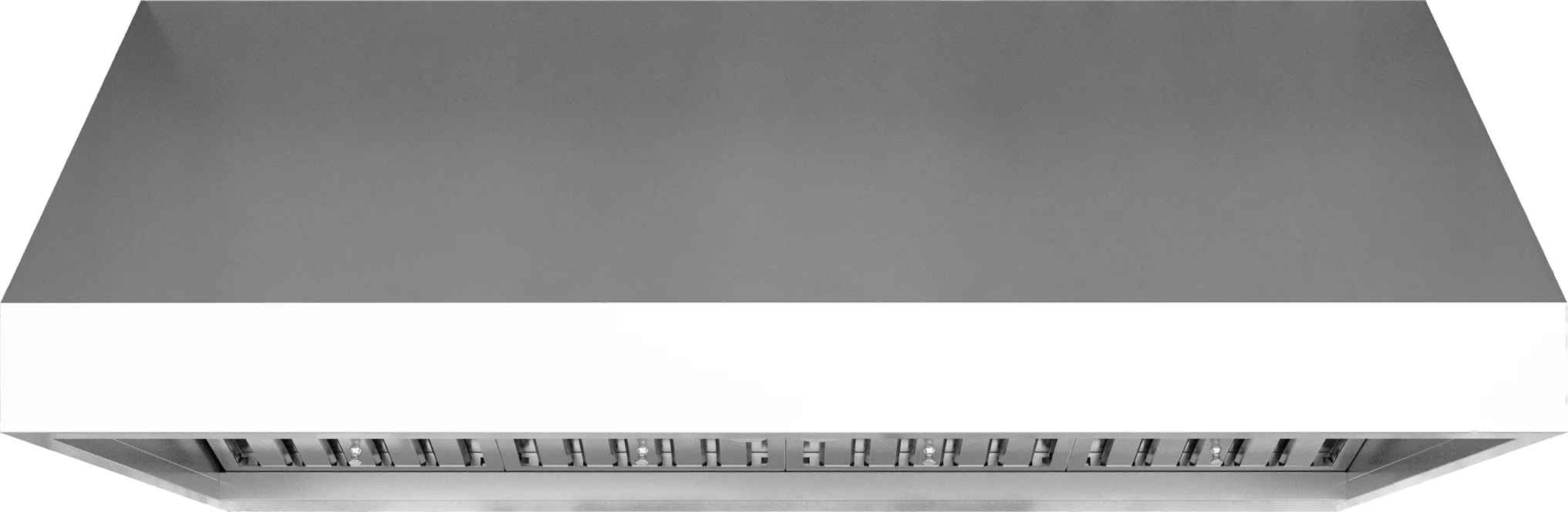

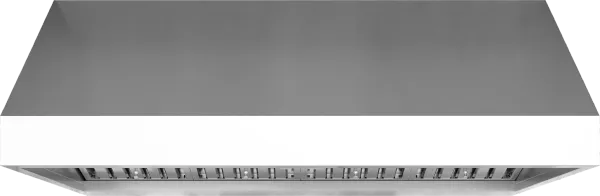

Zephyr 36" Outdoor Wall Mount Range Hood, Pro Series, 1200 CFM in Stainless Steel

SKU: AK7836CS
Labor Day
  • Width: 35.87"
  • Height: 18.00"
  • Depth: 32.00"
  • Energy Star Rated: no
  • ADA Compliant: No
  • Cooking Power: 1080 Watts
  • Series: Pro Collection
  • Type: Ducted
  • Outdoor Use: Yes
Zephyr Pro Collection |Authorized Dealer
Pre-Order

color: Stainless Steel

Zephyr AK7836CS

Estimates for:

Protect Your Item

$2,599.00

$2,799.00 Save$200.00
EARN 2,599 POINTS (sign in / sign up for free)

Protect Your Item

PRODUCT DESCRIPTION

Cypress Wall Outdoor, 36in, LED, SS, 1200 CFM

Specifications

Brand

Zephyr

Manufacturer

Zephyr

Category

Range Hood

Sub-Category

Wall

Vent Type

Ducted

UPC

646328010583

GTIN

00646328010583

Country of Origin

Taiwan

Model Group

AK78-C

Model Name

Cypress Wall Outdoor

Collection

Pro Collection

Blower Included

Yes

Internal Blower 1 CFM

1200

Internal Blower 1 Min. Sones

3.5

Internal Blower 1 Max Sones

9

Minimum CFM

450

Installation Type

Wall

For Outdoor Use

Yes

Color

Stainless Steel

Controls Type

Control Knob

Blower Speeds

3

Automatic Delay-Off

No

Clean Air Function

No

Lighting Type

LED

Lights Quantity

2

Watts Per Bulb

6

Lights Levels

2

Grease Filter Type

Pro baffle

Compatible Mesh or Baffle Filter Part Number

50210031

Duct Discharge

Vertical or Horizontal

Duct Size; Horizontal; IN

10

Duct Size; Vertical; IN

10

Mounting Height Above Cooktop; IN

32-42

Voltage

120

Maximum Amperage

9

ADA Compliant

No

Warranty Parts / Labor

3 / 1

Compatible Appliances

AK0736BS, Z1C-0178

Bluetooth Connected

No

Wi-Fi Connected

No

Remote Included

No

Remote Optional

No

Energy Star Certified

No

Alexa & Google Home Compatible

No

CEC Title 20 Compliant

Yes

Primary Material

Stainless Steel

Wattage

1080

Certification

UL

Nominal Width; IN

36

Net Width; IN

35.875

Net Depth; IN

32

Net Height; IN

18

Weight; LBS

84

Ceiling Height Minimum

8 ft.

Ceiling Height Maximum

12 ft.

Shipping Length; IN

35.04

Shipping Width; IN

38.58

Shipping Height; IN

22.63

Shipping Weight; LBS

98.32

Shipping Method

LTL

Freight Class

250

Certification #

E127334

Duct Type

Vertical

GTIN

00646328010583

EAN

0646328010583

UPC

646328010583

High-grade Stainless Steel

Outdoor Rated

Professional Baffle Filters

Welded and polished body

Vertical or horizontal ducting

Metallic Knob Controls

Optional Extension Duct Cover Kit

Welded and and polished body
