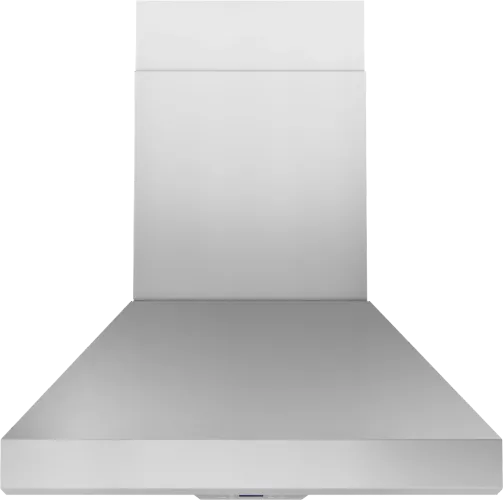

Zephyr 36" Ducted Island Mount Range Hood, Pro Collection in Stainless Steel

SKU: AK7736BS

0 Questions & 0 Answers

Energy Star Rated: No
Width: 35.93"
Type: Ducted
Height: 33.00"
Depth: 31.62"
Ventilation Type: Ducted
ADA Compliant: Yes, with optional remote
Cooking Power: 300 Watts
Series: Pro Collection

Zephyr Pro Collection |Authorized Dealer

Pre-Order

$3,699.00

$3,899.00 Save$200.00

⚡️ 2X reward points available

Sign in / Sign up to earn 7,398 points (

$184.95

)

color: Stainless Steel

Zephyr AK7736BS

Estimates for:

Protect Your Item

2 Year FREE

3 Year $235.99

4 Year $299.99

5 Year $359.99

Decline

30-Days Free Returns or Exchanges

PRODUCT DESCRIPTION

Titan Island, 36in, SS, PowerWave, 750 CFM w/ACT

general specification

69 items

Brand

Zephyr

Manufacturer

Zephyr

Category

Range Hood

Sub-Category

Island

Vent Type

Ducted

UPC

646328010552

GTIN

00646328010552

Country of Origin

Taiwan

Model Group

AK77-B

Model Name

Titan Island

Collection

Pro Collection

Replacement Model

AK7736CS

Blower Included

Yes

Blower CFM w/ACT

590, 390, 290

Internal Blower 1 CFM

750

Internal Blower 1 Min. Sones

0.5

Internal Blower 1 Max Sones

7

Minimum CFM

200

Installation Type

Island

For Outdoor Use

No

Color

Stainless Steel

Controls Type

Electronic LCD

Blower Speeds

6

Automatic Delay-Off

Yes

Clean Air Function

Yes

Lighting Type

LED

Lights Quantity

2

Watts Per Bulb

6

Lights Levels

2

Grease Filter Type

Pro baffle

Compatible Mesh or Baffle Filter Part Number

50210036

Duct Discharge

Vertical

Duct Size; Horizontal; IN

N/A

Duct Size; Vertical; IN

8, 10

Mounting Height Above Cooktop; IN

24 - 36

Voltage

120

Maximum Amperage

8

ADA Compliant

Yes, with optional remote

Warranty Parts / Labor

3 / 1

Compatible Appliances

PBD-1300B, Z1C-0077, 14000005, MUA008A, MUA010A

Bluetooth Connected

No

Wi-Fi Connected

No

Remote Included

No

Remote Optional

Yes

Energy Star Certified

No

Alexa & Google Home Compatible

No

CEC Title 20 Compliant

Yes

CEC Title 24 Compliant

Yes

Primary Material

Stainless Steel

Wattage

300

Certification

UL

Nominal Width; IN

36

Net Width; IN

35.9375

Net Depth; IN

31.625

Net Height; IN

33 - 50

Weight; LBS

100.8

Ceiling Height Minimum

8 ft.

Ceiling Height Maximum

10 ft.

Chimney Height in.

18.5

Chimney Width in.

17.93

Chimney Depth in.

16.25

Shipping Length; IN

48

Shipping Width; IN

45

Shipping Height; IN

42

Shipping Weight; LBS

180

Shipping Method

LTL

Freight Class

250

Certification #

E127334

Duct Type

Vertical

GS1

3 items

GTIN

00646328010552

EAN

0646328010552

UPC

646328010552

Documents

Prop 65

PDF

Warranty Document

PDF

Installation Manual

PDF

Specifications Sheet

PDF

Exploded View Diagram

PDF
