PRODUCT DESCRIPTION
Specifications
Brand
Zephyr
Manufacturer
Zephyr
Category
Range Hood
Sub-Category
Under Cabinet
Vent Type
Convertible
UPC
646328008504
GTIN
00646328008504
Country of Origin
Taiwan
Model Group
AK11-B
Model Name

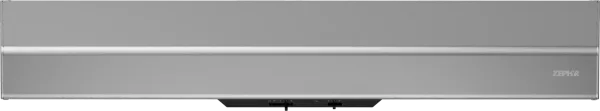

Breeze I Under-Cabinet
Collection
Core Collection
Blower Included
Yes
Internal Blower 1 CFM
250
Internal Blower 1 Min. Sones
1.8
Internal Blower 1 Max Sones
3.5
Minimum CFM
100
Installation Type
Under Cabinet
For Outdoor Use
No
Color
Stainless Steel
Controls Type
Mechanical Slide
Blower Speeds
3
Automatic Delay-Off
No
Clean Air Function
No
Lighting Type
LED
Lights Quantity
1
Watts Per Bulb
6
Lights Levels
2
Grease Filter Type
Mesh
Compatible Mesh or Baffle Filter Part Number
Z0F-B002
Duct Discharge
Vertical or Horizontal
Duct Size; Horizontal; IN
3.25 x 10
Duct Size; Vertical; IN
3.25 x 10
Mounting Height Above Cooktop; IN
20 - 32
Voltage
120
Maximum Amperage
2
ADA Compliant
Yes, with optional wall switch
Warranty Parts / Labor
3 / 1
Compatible Appliances
0AK11-21001, 0AK11-20001
Bluetooth Connected
No
Wi-Fi Connected
No
Remote Included
No
Remote Optional
No
Energy Star Certified
No
Alexa & Google Home Compatible
No
CEC Title 20 Compliant
Yes
CEC Title 24 Compliant
Yes
Primary Material
Stainless Steel
Wattage
240
Certification
UL
Nominal Width; IN
24
Net Width; IN
23.9
Net Depth; IN
20.125
Net Height; IN
5.5
Weight; LBS
17.300
Ceiling Height Minimum
8 ft.
Ceiling Height Maximum
12 ft.
Shipping Length; IN
28
Shipping Width; IN
9
Shipping Height; IN
25
Shipping Weight; LBS
21
Shipping Method
Small Parcel
Freight Class
150
Certification #
E127334
Clean Filter Alert
No
Duct Type
Vertical
GTIN
00646328008504
EAN
0646328008504
UPC
646328008504
LumiLight LED Lighting
Value Driven
Low-profile body
Extra-wide mesh filters
Vertical or horizontal ducting
Multiple color options
Optional Ductless Recirculating Kit
