PRODUCT DESCRIPTION
Specifications
Collection
Performance
Origin
China
UPC
814830010678
Height
7"
Width
36"
Depth
22 1/8"
Dimensions D x W x H
22 1/8" x 36" x 7"
Product Weight
32
Warranty 1 Explained
90 Day Love It Or Leave It
Warranty 2 Explained
1 Year Limited Material And Workmanship for the original owner
ADA Compatible
No
Certification
UL
Prop 65
Yes
Freight Class
85
Shipping Weight
35
Carton Height
11"
Carton Width
39"
Carton Depth
25"
Shipping Method
LTL
Amperage
2.5 Amps
Electrical
120V - 60Hz - 2.5 Amps
Frequency (Hz)
60 Hz
Voltage (volts)
120 VAC
Wattage (watts)
300 watts
Appliance Type
Range Hoods
CCC Code Compliance Control
No
CFM @ Speed 1
130
CFM @ Speed 2
210
CFM @ Speed 3
300
CFM @ Speed 4
390
CFM @ Speed 5
420
CFM @ Speed 6
550
Color/Finish
Stainless
Commerical/Residential
Residential
Control Type
Backlit LCD
Cooktop Lights
Twin 20Watt Halogen Lamps
Duct Size
6" Dia. or 3 1/4" x 10"
Ductless Convertible
Ducted Only
Filter Type
Filter Free Design
Install Type
Undercabinet
Installation Type
Undercabinet
LIght Colors
White
Light Type
Twin 20Watt Halogen Lamps
Lighting Features
Twin 20W Halogen
Maximum Air Flow Capacity CFM)
550
Minimum Air Flow Capacity (CFM)
130
Mounting Height Above Cooktop
26" - 32"
Number of Light Bulbs
2
Number of Speeds
6
Returnable
No
Sones @ Speed 1
1.4
Sones @ Speed 2
2.8
Sones @ Speed 3
3.7
Sones @ Speed 4
4.8
Sones @ Speed 5
5.5
Vent Location
6" Top - 3 1/4" x 10" Top or Rear
Vent Material
Metal
Wireless Compatibility
No
Control Lighting
Backlit
Controls
Illuminated Touch Controls
Location
Indoor
Sound Level
0.5 - 5.5 Sones
Assembled Depth (in.)
No
GTIN
00814830010678
EAN
0814830010678
UPC
814830010678

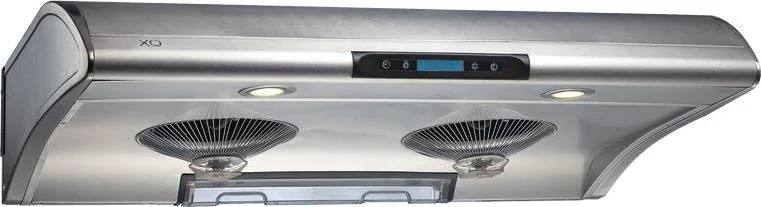

Backlit Electronic 6 Speed Control
Twin turbine fans deliver up to 550 CFM to efficiently remove smoke and fumes
Twin Halogen lamps brightly illuminate the cooktop
Advanced Filter Free Design
Adjustable Delay Off Feature
Digital clock
Available in black, stainless or white
1 year limited parts and labor warranty for the original owner
6" Round Vertical or 3 1/4" x 10" Vertical or Rear Duct Required
