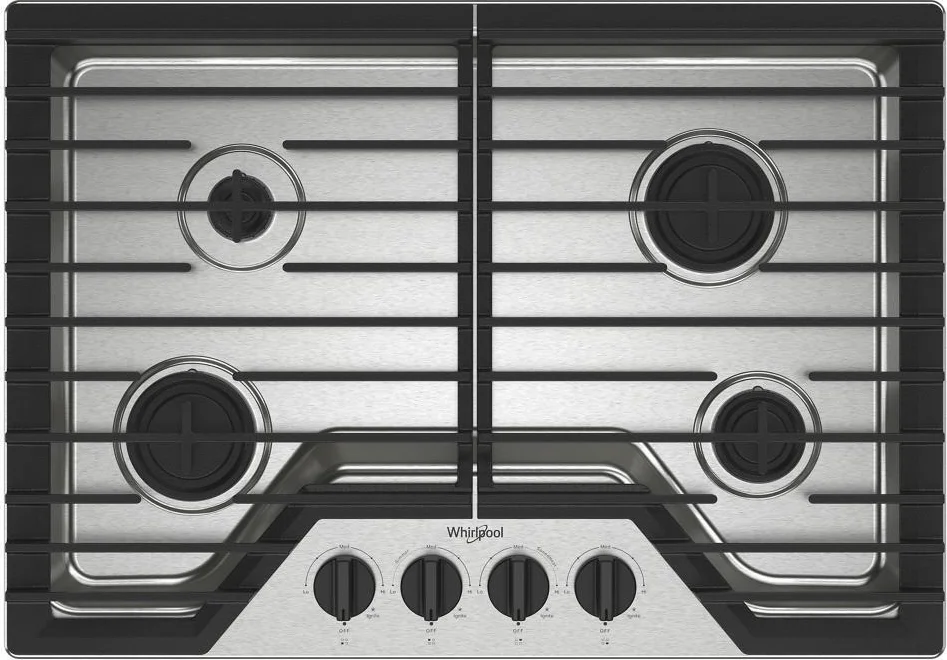

Whirlpool 30" Gas Cooktop, 4 Burners in Stainless Steel

Ada Compliant

ADA Height and Side Reach Compliant

Prop65

Standard

Ul

Yes

Control Location

Front

Control Type

Knobs

Infinite Heat Controls

No

Cooktop Surface Color

Stainless

Digital Display

No

Griddle Included

N/A

Heating Element On Indicator Light

No

Hot Surface Indicator Light

No

Ignition Type

Direct Spark Ignition

Automatic Pan Detection

No

Automatic Pan Size Adjustment

No

Combinations With Oven

WOES3027L; WOES5027L; WOES5030L; WOES7027P; WOES7030P; WOS11EM4; WOS51EC0; WOS51EC7; WOS51ES4; WOS52ES4M; WOS72EC0; WOS72EC7; WOS92EC0; WOS92EC7; WOS97ES0; WOSA2EC0

Cooktop Configuration

All Burners

Installs Over Built-in Oven

Yes

Lp Convertible

Yes - Kit Included

Power Outage Compatible

Yes

Product Height

5.5625

Carton Height

12.99

Gross Weight

61.3

Carton Width

34.68

Product Depth

21.0

Cutout Depth Max

20

Cutout Width Min

28.5

Cutout Depth

20

Carton Depth

24.96

Cutout Width

29.563

Cutout Depth Min

19

Cutout Width Max

29.563

Net Weight

56.9

Product Width

30.0

Power Cord Included

Yes

Cooktop Element Style

Sealed Burner

Left Front Element-burner Power

12000 BTU

Left Front Element-burner Type

Standard

Left Rear Element-burner Power

5000 BTU

Left Rear Element-burner Type

Simmer

Number of Cooking Element-burners

4

Power Boost

No

Right Front Element-burner Power

9100 BTU

Right Front Element-burner Type

Standard

Right Rear Element-burner Power

18,000 BTU

Right Rear Element-burner Type

Power

Knob Color

Black

Knob Type

Plastic

Combination Match With Oven

WOES3027L; WOES5027L; WOES5030L; WOES7027P; WOES7030P; WOS11EM4; WOS51EC0; WOS51EC7; WOS51ES4; WOS52EM4; WOS52ES4M; WOS72EC0; WOS72EC7; WOS92EC0; WOS92EC7; WOS97EC0; WOS97ES0; WOSA2EC0

Grate Details

Cast Iron Grates; Continuous; Dishwasher Safe; Matte Finish

Number of Grates

2

Works With

No

Downdraft Vent

No

Ventilation Type

N/A

Venting

N/A

GTIN

00883049678139

EAN

0883049678139

UPC

883049678139
