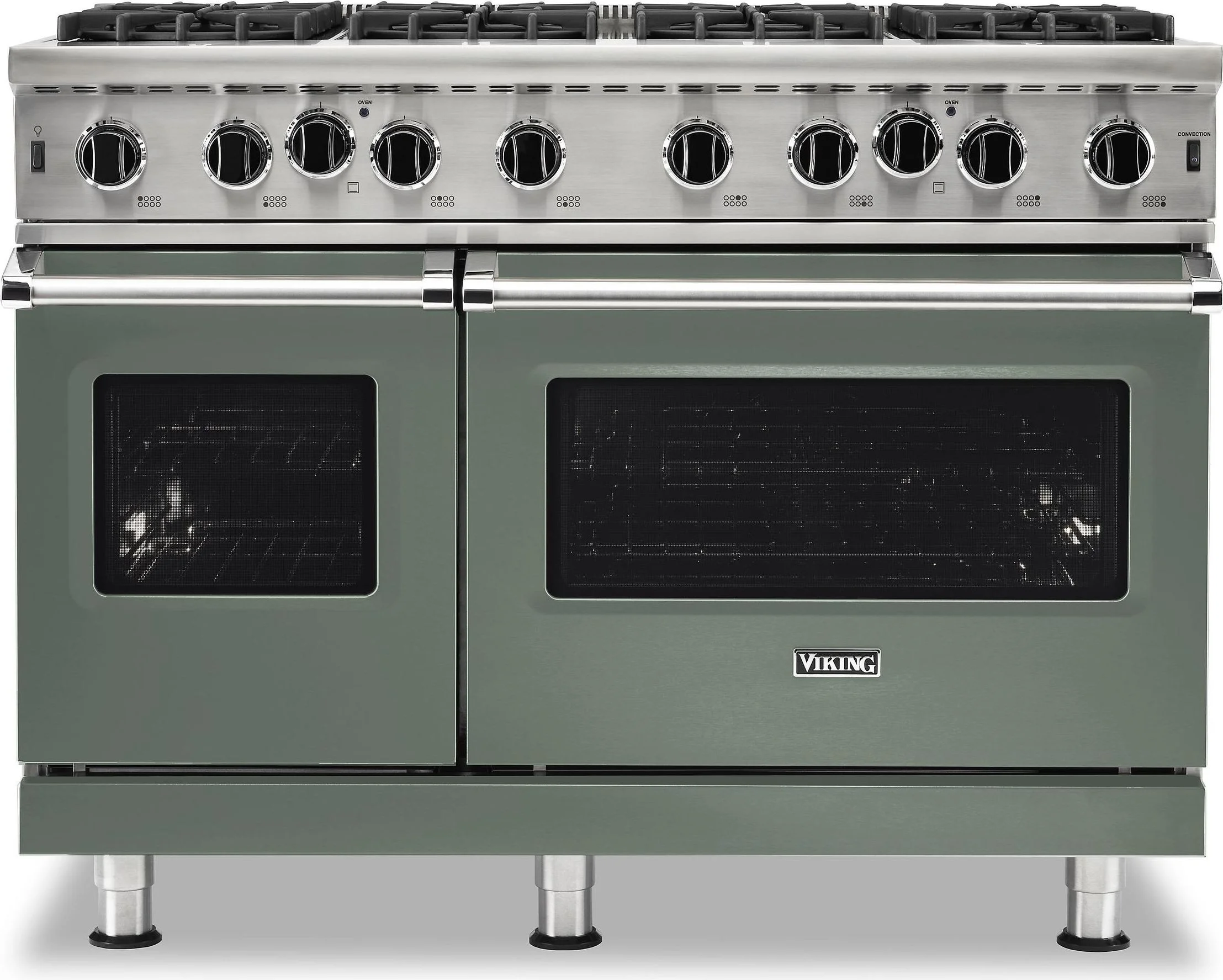

Viking 48" Freestanding Gas Range, 5 Series, 6.1 cu. ft. Capacity in Eucalyptus

Commercial-Type Cooking Power

• 15,000 BTU stainless steel burners with porcelain/cast iron caps
• Exclusive! VariSimmer(TM) setting for all burners
• Exclusive! All burners equipped with SureSpark(TM) Ignition System for consistent and reliable ignition
  • Automatic re-ignition; surface burners light at any position on the knob and re-light if extinguished even on lowest setting
• Exclusive! Combination of single 30,000 BTU U-shaped burner and infrared broiler with SureSpark(TM) Ignition System; left oven in 48" wide model has one 15,000 BTU burner
• GourmetGlo(TM) Infrared Broiler provides intense searing heat for broiling applications (right oven only in 48" wide model)
• New BlackChrome Metal Knobs ship standard
• New larger window opening
• Extremely large convection oven
• Right Oven - large convection oven
  • Overall 23"W. x 16 1/8"H. x 18 3/4"D. - 4.0 cubic feet
  • AHAM Standard 23"W. x 16 1/8"H. x 17"D. - 3.7 cubic feet
  • Three heavy-duty racks/six porcelain coated rack positions
• Left Bake Oven
  • Overall 12 1/8"W. x 16 1/8"H. x 18 3/4"D. - 2.1 cubic feet
  • AHAM Standard 12 1/8"W. x 16 1/8"H. x 18 1/8"D. - 2.0 cubic feet
  • Two heavy-duty racks/six porcelain coated rack positions
• Six functions - natural airflow bake, convection bake, infrared broil, convection infrared broil, convection dehydrate, and convection defrost (right oven only in 48" wide model)
• All convection functions utilize the ProFlow(TM) Convection Air Baffle, which is specifically designed to ensure balanced airflow for even heat distribution
• Convection fan switch conveniently located on control panel
• Two halogen oven lights for excellent visibility throughout the oven cavity

Easy Operation and Cleanup

• Removable pull-out drip tray with roller bearing glides for smooth operation
• Removable grate supports with separately removable, dishwasher-safe porcelain burner bowls
• Burner caps are easily removable for quick cleaning
• Heavy-duty, porcelainized, cast-iron removable surface grates provide continuous front-to-rear, left-to-right surface for easy movement of large pots

Installation Accessories

• 8"H. Backguard - BG8548SS
• High Shelf - HS24536SS
• Countertop Side Trim - P24CST
• Countertop Rear Trim - P48CRTSS
• Curb Base and Custom Curb Base Front - P48CBF4SS

Optional Accessories

• LP/Propane Conversion Kit - LPKPDR

Models

• VGIC5482-8B
• All models are available as LP (add LP after color code)

Warranty Highlights

• Two-year full - complete product
• Ninety-day full - cosmetic parts such as glass, painted items, and decorative items
• Five-year limited - all gas burners

California Prop. 65 WARNING: Cancer and birth defects or other reproductive harm - www.P65Warnings.ca.gov
For more information about compliance with California AB1200 and Colorado HB1345 visit: www.vikingrange.com/consumer/category/products/disclosures
