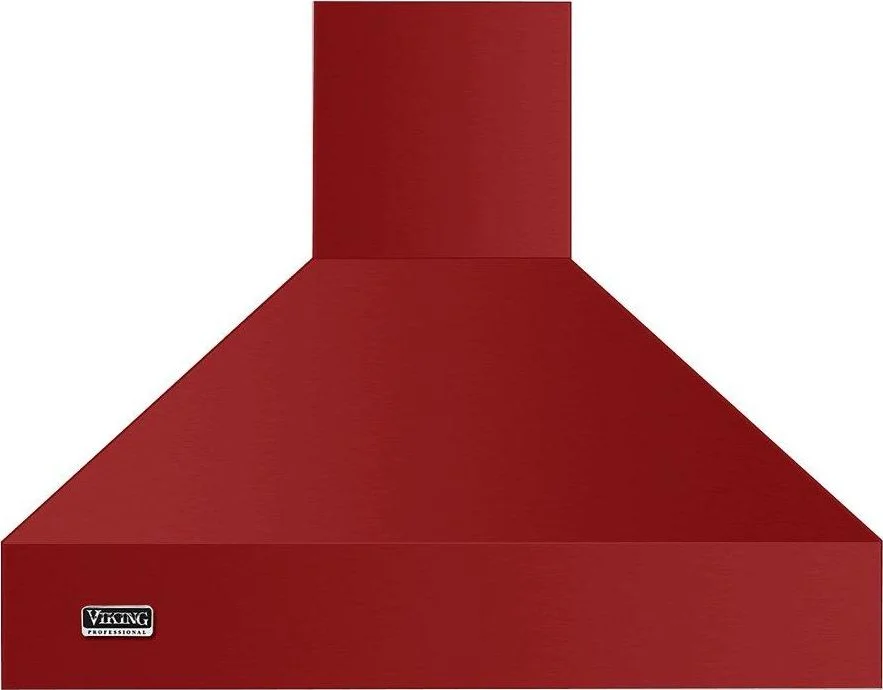

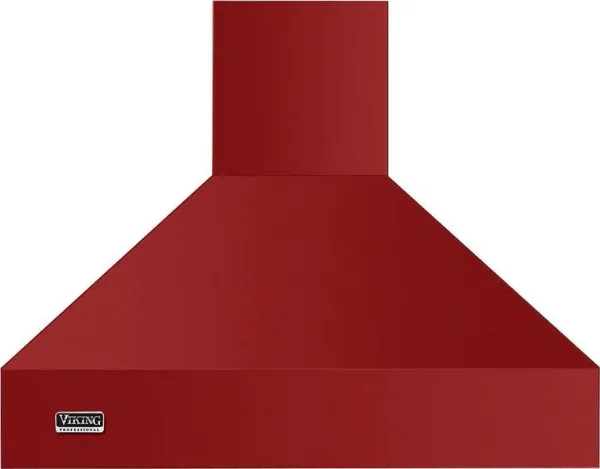

Viking 42" Ducted Hood in Apple Red

Appearance and Design

• Backlit LED knobs extend and illuminate to control lighting level and fan speed, then fully retract when not in use
• Seamless design provides a refined finish to your kitchen
• Heavy-duty, commercial-type size, construction, design, and styling

Ventilators

• Choose from interior, exterior or in-line ventilators
  • 600 CFM (VINV600) interior-power ventilator kit
  • 900 CFM (DEV900) and 1,200 CFM (DEV1200) exterior-power ventilator kits
  • 1,200 CFM (DIL1200) in-line ventilator kit
  • All ventilators work with variable speed controls for custom venting - separate on/off switch allows consumer to leave ventilator at favorite setting
• One ventilator, one duct run for any size hood/ventilator
• Must use Viking ventilator kits with Viking hoods; use of non-Viking kits voids product warranty

Bright LED Lighting

• Dimmable lighting controls provide custom illumination for enhanced surface cooking visibility
• Long-life LED light bulbs are energy efficient and easily replaceable

Easy Maintenance and Clean-up

• Commercial-type baffle filters efficiently remove heat and grease vapors from the air
• Stainless steel dishwasher-safe filters are easily removed for quick cleaning
• Low-profile filter system reduces interior hood space, leaving less surface to clean

Included Accessories

• Adjustable duct cover comes standard with hood (for 8' to 9' ceilings)
• Canopy finish matches hood canopy finish

Other Installation Accessories

Duct Cover Extensions

• DCCE1210
• Extend height of duct cover by up to 12 inches (for 10' ceilings)
• Color finishes to match hood canopy/duct cover finish

Warming Shelf Panels

• WGP42
• Fold up/down, heavy-duty warming shelves hold cookware and condiments
• May be used with heat lamp to keep food warm
• Two shelves - each is 15 7/8" wide by 10 1/8" deep
• Available in stainless steel (SS) only

Backsplashes

• BKS42
• Protect wall space below hood
• Create a continuous finish between cooking surface and hood
• Low maintenance, easy to clean
• Available in stainless steel (SS) only

In-Line Blower Accessories

• VSIL10 - Duct Silencer Accessory for 10" duct
• ILVK - Vibration Isolator Kit Accessory

Exclusive Color Finishes

• Available in Classic Finishes: Stainless Steel (SS), Black (BK), White (WH), Apple Red (AR), Burgundy (BU), Cobalt Blue (CB), Graphite Gray (GG) and our NEW! Contemporary Finishes: Alluvial Blue (AB) , Arctic Grey (AG) , Blackforest Green (BF) , Bywater Blue (BW) , Cast Black (CS) , Cypress Green (CY) , Damascus Grey (DG) , Frost White (FW) , Kalamata Red (KA) , Pacific Grey (PG) , Reduction Red (RE) , Slate Blue (SB) , San Marzano Red (SM) , Vanilla Cream (VC)

Model numbers

• VCWH54248 - Professional 42"W./18"H. Chimney Wall Hood
