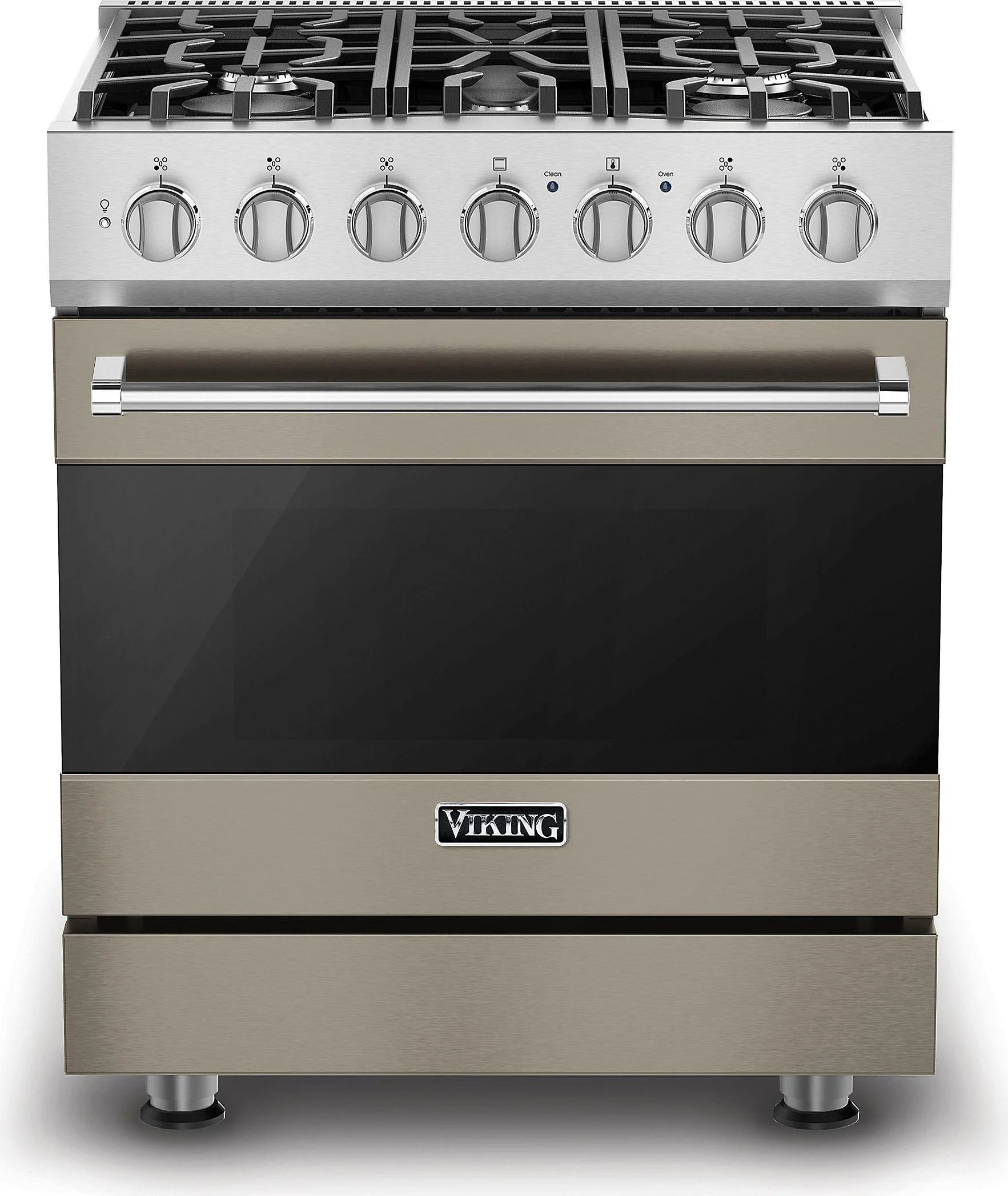

Viking 30" Freestanding Dual Fuel Range, 3 Series, 4.7 cu. ft. Capacity in Nantucket

Features and Functions

• Wide variety of BTU ratings to accommodate all types of surface cooking needs - including a NEW fifth burner
  • Left front - 18,000 BTU
  • Left rear - 9,100 BTU
  • Center - 9,100 BTU
  • Right front - 17,000 BTU
  • Right rear - 12,000 BTU
• Sealed burners with porcelainized cast-iron burner caps and grates
• Exclusive - SureSpark(TM) Ignition System
  • Automatic electric spark ignition/re-ignition; surface burners light at any position on the knob and re-light if extinguished even on lowest setting
• Exclusive - largest oven cavity in the industry
  • 4.7 cu. ft. overall
  • 4.1 cu. ft. measured to AHAM standard (See specifications chart for oven interior dimensions)
• High performance cooking modes include Bake, Convection Bake, TruConvec(TM) Convection Cook, Convection Roast, Hi Broil, Medium Broil, Low Broil, Convection Broil, Convection Dehydrate, and Convection Defrost
• Exclusive - Patented Vari-Speed Dual Flow(TM) convection system has the largest convection fan in the industry; the 8 1/2" fan works bi-directionally for maximum airflow and
  excellent cooking results
• Concealed 10-pass dual bake element provides precise temperature control
• 10-pass broiler with heat reflector provides superior broiling performance
• Rapid Ready(TM) Preheat provides one of the fastest preheat times so your oven is ready to cook when you are
• Oven has six porcelain-coated rack supports and comes standard with one heavy-duty TruGlide(TM) full extension oven rack and two standard racks
• Halogen oven lighting provides excellent visibility
• Shipped standard with island trim

Easy Operation and Cleanup

• Extremely large self-clean convection oven
• Permanently sealed burners - spills cannot enter the one-piece tooled and porcelainized burner box
• Durable metal die-cast knobs with child-proof, push-to-turn safety feature
• Customer removable knobs, grates, and burners/caps for easy cleaning
• Grate design provides continuous cooking surface for easy movement of pots and pans

Installation Accessories

• 6" high backguard (RD301BG6SS)
• Countertop side trim (RD24CSTSS)
• Countertop rear trim (P30CRTSS)
• Curb base and custom curb base front (P30CBF4SS)
• LP conversion kit (RDLPKR2)
• Natural Gas conversion kit (RNKR2)

Model Number

• RVDR3302-5B - 30" Dual Fuel Self-Clean Range with Five Burners
