PRODUCT DESCRIPTION
Features

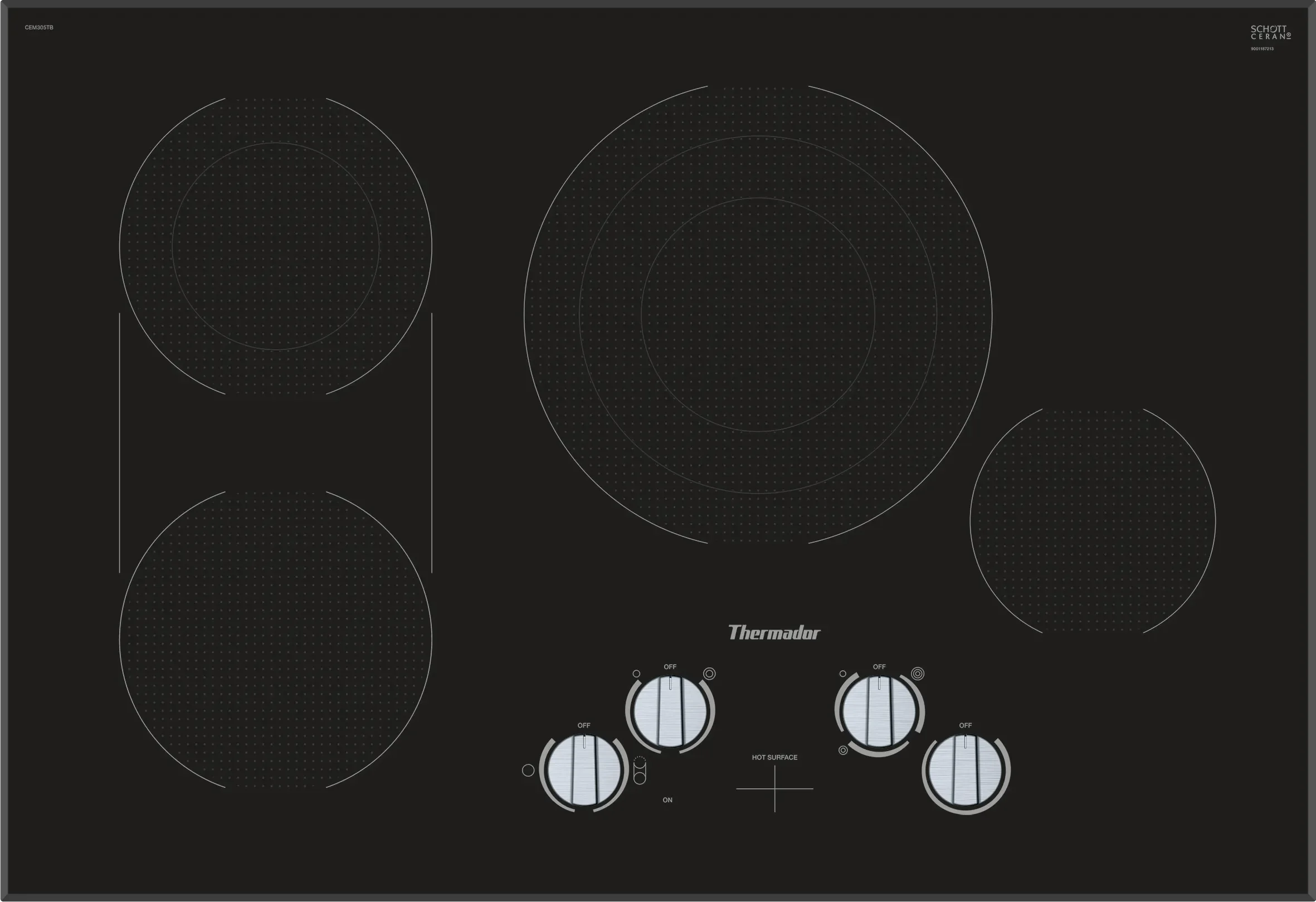

Black Glass with a frameless design
Black Glass creates a sleek design to complement any kitchen.
Dual Zone Bridge connects two round cooking zones
Evenly heat large pans, griddles, and oblong cookware with connecting heat bridge and dual-zone elements, exclusive to Thermador(R).
Know when your cooktop is hot
The cooktop clearly indicates when elements are still hot.
Specifications
Energy source
Electric
Type of Control
Fixed, Front, Metal Knobs, Push-to-turn
Total Number of Heating Elements
4
Cooking Zone Flexibility
Two-ring Cooking Zone, Triple Zone Element
Power Levels
9 Power Levels
Watts
8200
ADA Compliant (When Installed to ADA requirements)
No
Color of Surface
Black
Design
Built-in
Number of electric elements
0
Number of electric cooking zones
4
Type of frame
4 Facettes
Number of Gas Burners
0
Number of halogen elements
0
Installation Type
Built-in
Total Number of Heating Elements
4
Number of radiant elements
4
Number of electric warming zones
0
Overall Appliance Dimensions (HxWxD) (in)
7/16" + 4 x 31" x 21 1/4"
Net Weight
26.000 lbs
Minimum distance from counter front (in)
2 1/4
Minimum distance from rear wall (in)
2
Dimension of 1st heating element (in)
7"
Location of heating element
front left
Type of heating element
Radiant heating
Location of 2nd heating element
center left
Dimension of 3rd heating element (in)
5" ; 7"
Location of 3rd heating element
back left
Type of 3rd heating element
Radiant heating
Location of 4th heating element
middle back
Location of 5th heating element
back right
Location of 6th heating element
center right
Dimension of 7th heating element (in)
6"
Location of 7th heating element
front right
Type of 7th heating element
Radiant heating
Location of 8th heating element
front middle / central
Location of 9th heating element
front centre/cent
Residual Heat Indicator
Yes
Frequency
60 Hz
Energy source
Electric
Watts
8,200 W
Included Accessories
1 x glass scraper
GTIN
00825225924845
EAN
0825225924845
UPC
825225924845
Color
Black
Frame Type
No Frame
Type of Control
Knobs
Overall Appliance Dimensions (HxWxD) (in)
7/16" + 4 x 31" x 21 1/4"
Size
30 Inch
Required Cutout Size (HxWxD) (in)
4 x 28 3/4 x 19 7/8
Amps
40/30
Volts
240/208
Product Packaging Dimensions (HxWxD)
8 1/4'' x 37 3/8'' x 24"
Total Number of Heating Elements
4
Cooking Zone Flexibility
Two-ring Cooking Zone, Triple Zone Element
Join Split Function of Cooking Zones
No
TeppanyakiPro(TM)
No
Power Levels
9 Power Levels
Glass protect
No
Keep Warm
No
Automatic Cookware Detection
No
ADA Compliant (When Installed to ADA requirements)
No
PanBoost(R)
No
MoveMode(R)
No
HeatShift(R) Increase/ Decrease Power Level via Moving Pot
No
MyZone(R)
No
Frying Sensor Technology
Not Applicable
Cooking Sensor Ready - Sensor Not Included
No
Home Connect(R) WiFi-enabled
No
Cooktop Hood Sync
No
Precisely Control the Temperature With These Stylish Knobs.
This Variable Setting Offers A Range of Power From High Heat To Simmer.
Is an Exclusive Feature That Connects Two Round Cooking Zones, Enabling Use of Large Oval or Rectangular Cookware for Even Heating.
Combine Three Cooking Zones Into One To Adapt To the Size of Your Cookware.
Know when your cooktop is hot
Dual Zone Bridge connects two round cooking zones
Black Glass with a frameless design
