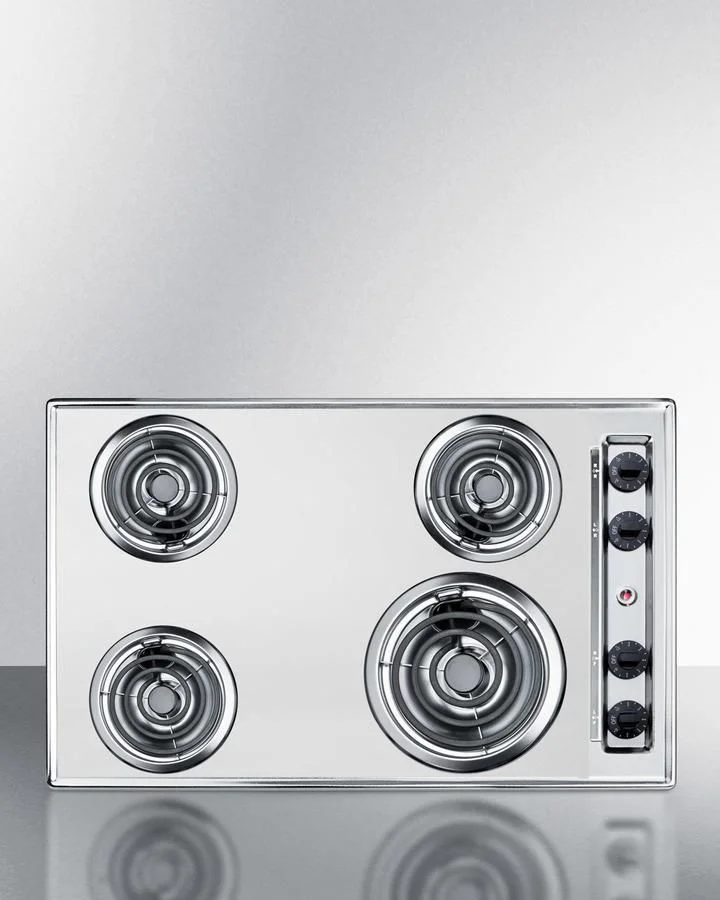

Summit 30" Electric Radiant Coil Drop-In Cooktop in Chrome

SKU: ZEL05
  • Fuel Type: Electric
  • Width: 29.75"
  • Height: 3.75"
  • Depth: 20.00"
  • Wi-Fi Connected: No
  • Sabbath Mode: No
  • ADA Compliant: No
  • Downdraft Ventilation: No
  • Style: Radiant Coil
  • Type: Drop-In
Summit |Authorized Dealer
In Stock|Only 10 left
$560.00
Sign in / Sign up to earn 560 points (
$14.00
)

Estimates for:

Protect Your Item

PRODUCT DESCRIPTION

Summit Appliance offers a wide selection of American-made household cooktops built for long-lasting durability in space-challenged kitchens. The ZEL05 is a 30" wide 220-240V electric cooktop designed to fit 28 3/8" wide x 18 5/8" deep cutouts. It features a brushed chrome surface, with a recessed design that helps to contain spills. Side-located push-to-turn knobs offer easy and safe use, with an indicator lights to show when the cooktop is on. Designed to meet the most current UL safety standards, this unit features one 8" 950W and three 6" 650W coil elements. These operate at lower wattage than standard electric cooktops, allowing for a slow but steady heating process that will not cycle off. Each element includes a removable chrome drip pan for easier cleanup. This is a 220V cooktop and requires professional installation. It is compatible with a standard 40 amp 3 or 4-wire range cord. The ZEL05 is designed and constructed in the USA. Additional finishes are available, as well as 24" sizes for larger kitchen spaces and matching wall ovens. Browse our website to explore our complete selection.

Specifications

overview

Nominal Height
4.0" (10 cm)
Height of Cabinet
3.75" (10 cm)
Nominal Width
30.0" (76 cm)
Width
29.75" (76 cm)
Nominal Depth
20.0" (51 cm)
Depth
20.0" (51 cm)
Cabinet
Chrome
US Electrical Safety
UL
Canadian Electrical Safety
ULC
Amps
30.0
Voltage/Frequency
230 V AC/60 Hz
Weight
30.0 lbs. (14 kg)
Parts & Labor Warranty
1 Year
UPC
761101061665

electric cooktop

Heating Type
Radiant
Element Type
Coils
Number of Elements
4
Controls
Dial
Countertop Cutout Width
28.38" (72 cm)
Countertop Cutout Depth
18.63" (47 cm)
Element #1 Size
6.0" (15 cm)
Element #1 Wattage
675.0
Element #2 Size
8.0" (20 cm)
Element #2 Wattage
950.0
Element #3 Size
6.0" (15 cm)
Element #3 Wattage
675.0
Element #4 Size
6.0" (15 cm)
Element #4 Wattage
675.0
Power Cord Included
No

GS1

GTIN
00761101061665
EAN
0761101061665
UPC
761101061665
