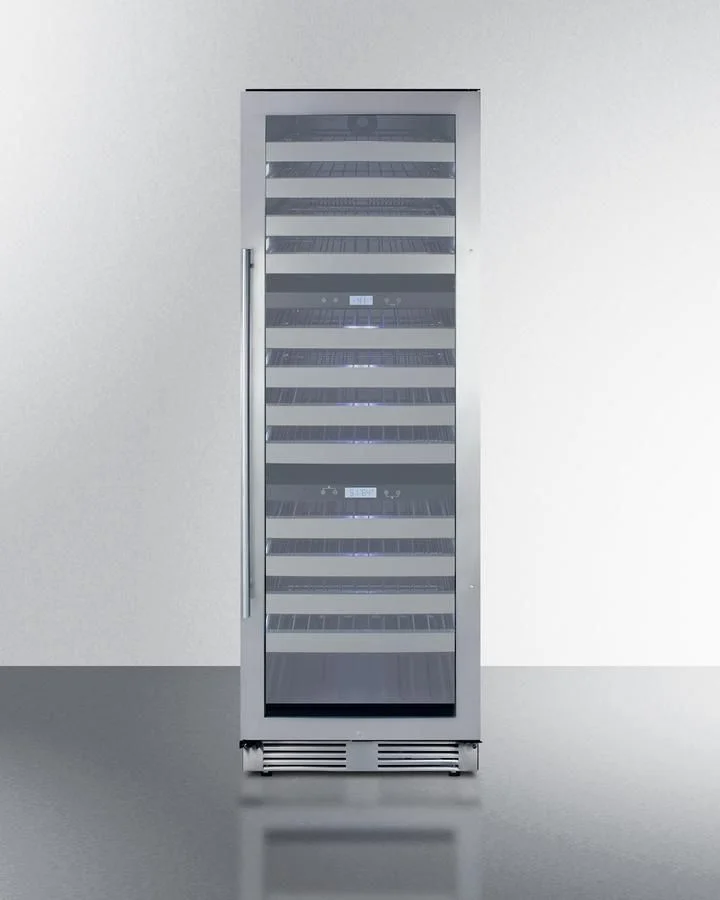

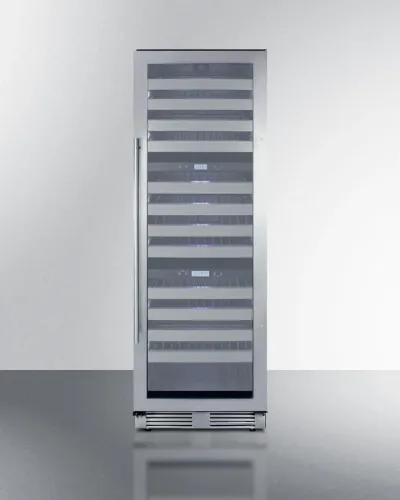

Summit 24" Full Size Triple Zone Wine Cooler

Nominal Height

70.0" (178 cm)

Height of Cabinet

69.5" (177 cm)

Nominal Width

24.0" (61 cm)

Width

23.63" (60 cm)

Nominal Depth

27.0" (69 cm)

Depth

26.5" (67 cm)

Depth with Handle

28.25" (72 cm)

Depth with door at 90(degree)

8.75" (22 cm)

Bottles

149 bottles

Defrost Type

Automatic

Door

Glass/SS

Cabinet

Black

US Electrical Safety

ETL

Canadian Electrical Safety

ETL-C

Sanitation

ETL-S

Amps

1.3

Voltage/Frequency

115 V AC/60 Hz

Weight

269.0 lbs. (122 kg)

Parts & Labor Warranty

1 Year

Compressor Warranty

5 Years

UPC

761101077246

Number of Zones

3

Door Swing

RHD

Reversible

Factory Reversible

Shelf Type

Wire

Shelf Qty

12

Thermostat Type

Digital

Interior Light

Yes

Fan Type

Interior and Exterior

Refrigerant Type

R600a

Refrigerant Amount

1.58 oz.

High Side PSI

320.0

Low Side PSI

120.0

Interior Height 1

62.75" (159 cm)

Interior Width 1

20.5" (52 cm)

Interior Depth 1

26.5" (67 cm)

Level Legs

2

Temperature Range

41-65(degree)F (upper zone); 41-54(degree)F (middle zone); 54-65(degree)F (lower zone)

Sound Level

34.1 dB

GTIN

00761101077246

EAN

0761101077246

UPC

761101077246

ETL-S listed to NSF-7 standards for use in restaurants, bars, and other foodservice settings

Versatile upper zone accommodates red, white, or sparkling wine. The middle zone chills white wine while the lower zone preserves yours reds at a warmer temperature

Two cooling systems (one for the upper zone and one for the middle/lower zones) ensure your collection is kept under the proper conditions

Provides a full display of the interior, with two levels of glass for added protection

Single-piece door trim offers a more deluxe look

Located inside the unit, the digital thermostats allow easy temperature management with a display in Celsius or Fahrenheit

12 shelves on ball-bearing glides glide out smoothly for easier loading and optimum capacity

Fronts feature a stainless steel accent to elevate your presentation

Interior can hold up to 149 standard 750ml Bordeaux style bottles (17 bottles stacked on the upper shelf, 11 bottles on each additional shelf, and 11 on the slotted floor). If storing wider Burgundy style bottles (typically used for Pinot Noir or Chardonnay), you can accommodate up to 102 bottles (8 per shelf with 6 stacked on the slotted floor)

13 LED lights provide an attractive and energy-efficient illumination of your collection with a gentle white hue

Keyed lock secures all three zones (2 keys included)

Upper zone: 41-65(degree)F for red, white, or sparkling wine; Middle zone: 41-54(degree)F perfect for chilling white; Lower zone: 54-65(degree)F for holding reds at a warmer temperature

Allows for front ventilation in an elegant design

Rubber trim prevents air in the upper zone from affecting the air temperature in the middle and lower zones

Helps to purify air for an odor-free interior

Audibly sounds if the interior rises or falls out of recommended range

Alerts if unit door is ajar for more than 5 minutes

Ensures a tight seal for energy savings and improved performance

Flush back allows for a better fit and easier cleanability

Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Allows the unit to be used freestanding

Environmentally friendly design with no ozone-damaging chemicals

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
