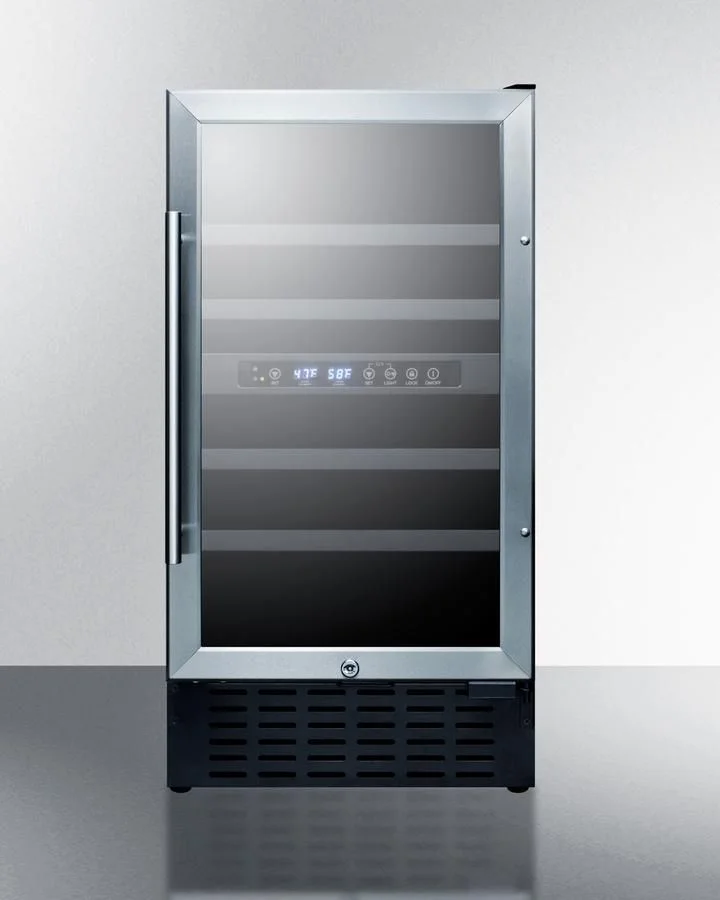

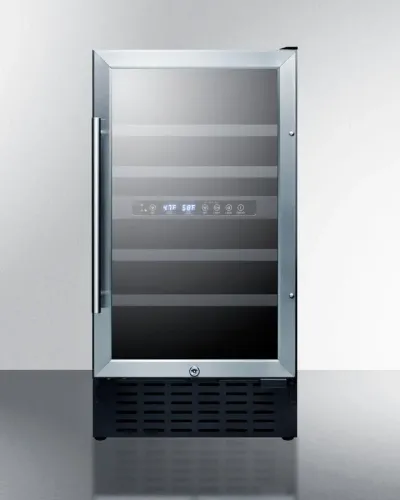

Summit 18" Built-In Wine Cooler, 3.3 cu. ft. Capacity

Nominal Height

32.0" (81 cm)

Height of Cabinet

31.63" (80 cm)

Nominal Width

18.0" (46 cm)

Width

17.94" (46 cm)

Nominal Depth

24.0" (61 cm)

Depth

23.5" (60 cm)

Depth with Handle

25.25" (64 cm)

Depth with door at 90(degree)

39.75" (101 cm)

Capacity

3.3 cu.ft. (93 L)

Bottles

28 bottles

Defrost Type

Automatic

Door

Glass

Cabinet

Stainless Steel

US Electrical Safety

ETL

Canadian Electrical Safety

ETL-C

Sanitation

ETL-S

Amps

1.25

Voltage/Frequency

115 V AC/60 Hz

Weight

95.0 lbs. (43 kg)

Parts & Labor Warranty

1 Year

Compressor Warranty

5 Years

UPC

761101058436

Number of Zones

2

Door Swing

RHD

Reversible

Yes

Adjustable Shelves

Yes

Shelf Type

Wood

Shelf Qty

4

Thermostat Type

Digital

Interior Light

Yes

Fan Type

Interior and Exterior

Refrigerant Type

R600a

Refrigerant Amount

1.23 oz.

High Side PSI

150.0

Low Side PSI

50.0

Interior Height 1

10.63" (27 cm)

Interior Width 1

14.25" (36 cm)

Interior Depth 1

18.0" (46 cm)

Compressor Step Height

5.25" (13 cm)

Compressor Step Width

14.25" (36 cm)

Compressor Step Depth

5.0" (13 cm)

Level Legs

4

Temperature Range

41 to 64 F

Interior Height 2

12.25" (31 cm)

Interior Width 2

14.25" (36 cm)

Interior Depth 2

18.0" (46 cm)

GTIN

00761101058436

EAN

0761101058436

UPC

761101058436

Keep white wine in the upper compartment stored between 41 and 50 F and red wine at a warmer 50 to 64 F range in the lower chamber

Make the best use of space by installing your appliance under the counter

304 grade finish on the exterior cabinet for a professional look with lasting durability

Versatile interior can store up to 28 standard 750ml Bordeaux style or 22 wider Burgundy style bottles

Provides a full display of stored contents with a heat-safe double tempered design

Keyed lock for a secure interior, with 2 keys included

Electronic controls for precise temperature management.

Temperature readout can be shown in Celsius or Fahrenheit

Gentle illumination for each temperature zone for an elegant presentation

Reduced maintenance with the convenience of auto defrost

4 wooden shelves in a painted black finish offer the perfect storage for wine bottles in a classic wooden finish

Keep your options flexible with a reversible door that is easy to switch when your arrangement changes

Stainless steel handle completes the look

Space saving design

Hinge is flush with cabinet, adding no additional height to the unit

Fully finished cabinet also allows freestanding use

Environmentally friendly design with no ozone-damaging chemicals

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
