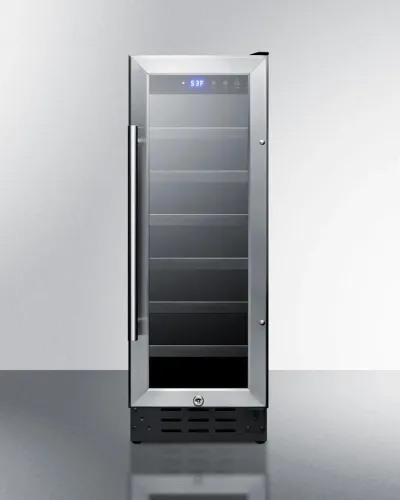

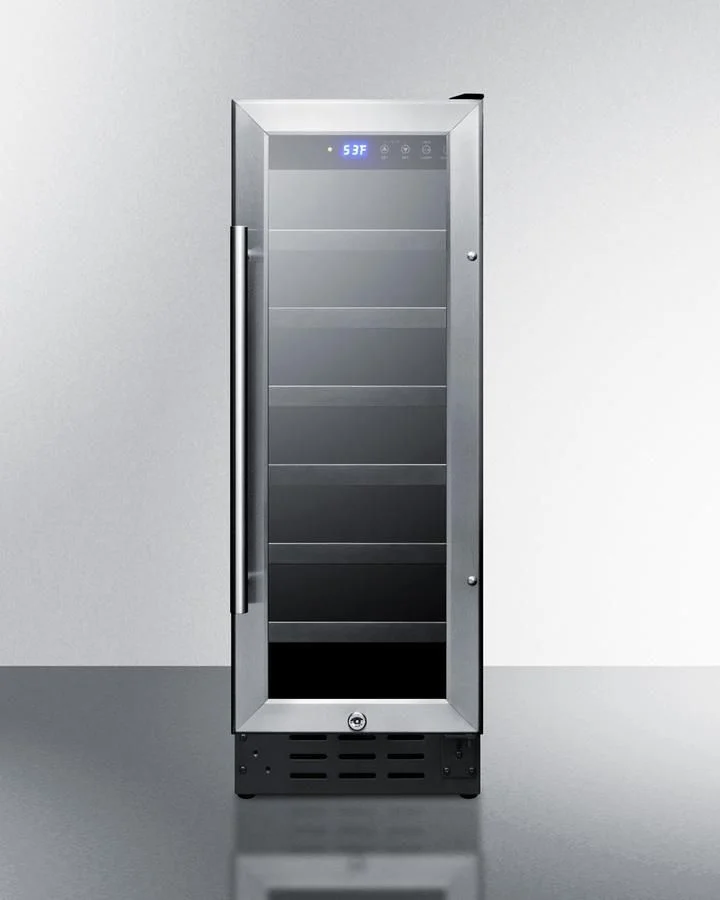

Summit 12" Built-In Wine Cooler

Nominal Height

35.0" (89 cm)

Height of Cabinet

34.38" (87 cm)

Nominal Width

12.0" (30 cm)

Width

11.88" (30 cm)

Nominal Depth

23.0" (58 cm)

Depth

22.38" (57 cm)

Depth with Handle

24.13" (61 cm)

Depth with door at 90(degree)

33.0" (84 cm)

Bottles

21 bottles

Defrost Type

Automatic

Door

Glass

Cabinet

Black

US Electrical Safety

ETL

Canadian Electrical Safety

ETL-C

Sanitation

ETL-S

Amps

1.25

Voltage/Frequency

115 V AC/60 Hz

Weight

66.0 lbs. (30 kg)

Parts & Labor Warranty

1 Year

Compressor Warranty

5 Years

UPC

761101059501

Number of Zones

1

Door Swing

RHD

Reversible

Yes

Adjustable Shelves

Yes

Shelf Type

Wood

Shelf Qty

6

Thermostat Type

Digital

Interior Light

Yes

Fan Type

Interior and Exterior

Refrigerant Type

R600a

Refrigerant Amount

0.88 oz.

High Side PSI

150.0

Low Side PSI

50.0

Interior Height 1

25.0" (64 cm)

Interior Width 1

9.13" (23 cm)

Interior Depth 1

17.0" (43 cm)

Compressor Step Height

3.75" (10 cm)

Compressor Step Width

9.13" (23 cm)

Compressor Step Depth

4.5" (11 cm)

Level Legs

4

Temperature Range

41 to 68 F

GTIN

00761101059501

EAN

0761101059501

UPC

761101059501

Make the best use of space by installing your appliance under the counter

Meets UL Commercial Standard 471 and is ETL-S listed to NSF-7 commercial standards

Provides a full display of your stored collection with a heat-safe double tempered design

Keyed security on the wine cellar door

Interior can hold 21 bottles in standard Bordeaux style or wider Burgundy style

Electronic controls for precise temperature management, with indicator lights for red, white, and sparkling wines

Temperature readout can be shown in Celsius or Fahrenheit

Slide-out shelves offer the perfect storage for bottles

On/off button to illuminate your collection

Reduced maintenance and steady temperature performance

Stainless steel look for added elegance

Space saving design with easier cleanability

Keep your options flexible with a reversible door that is easy to switch when your arrangement changes

Allows the unit to be used freestanding

Environmentally friendly design with no ozone-damaging chemicals

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
