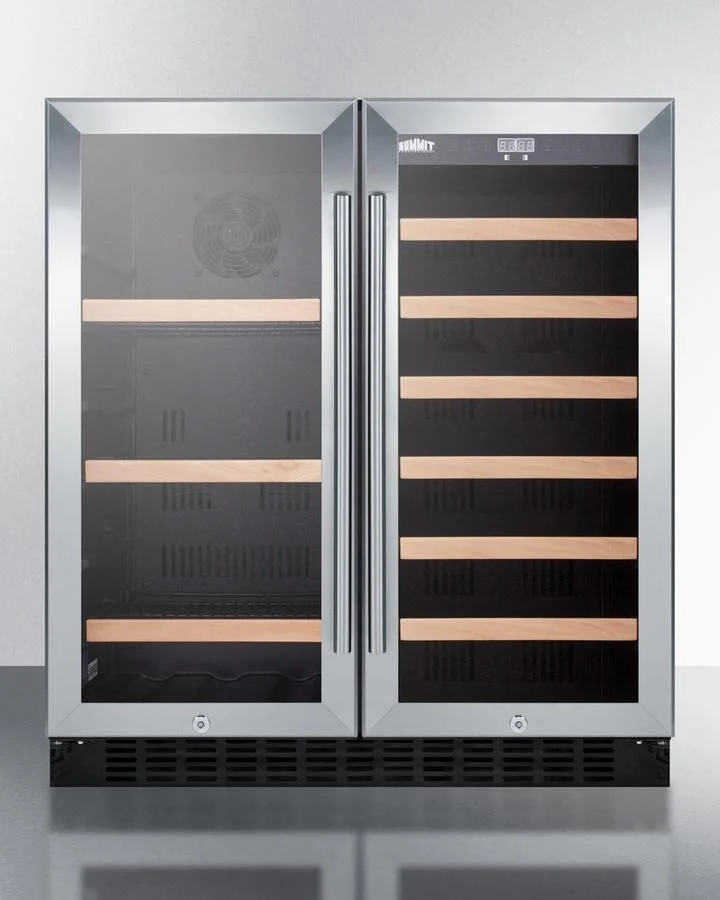

Summit 30" Wide Built-in Wine/beverage Center

Nominal Height

34.0" (86 cm)

Height of Cabinet

34.0" (86 cm)

Nominal Width

30.0" (76 cm)

Width

29.5" (75 cm)

Nominal Depth

24.0" (61 cm)

Depth

23.5" (60 cm)

Depth with Handle

25.25" (64 cm)

Depth with door at 90(degree)

37.0" (94 cm)

Capacity

5.8 cu.ft. (164 L)

Defrost Type

Automatic

Door

Glass

Cabinet

Black

US Electrical Safety

ETL

Canadian Electrical Safety

ETL-C

Amps

1.5

Voltage/Frequency

115 V AC/60 Hz

Weight

132.0 lbs. (60 kg)

Parts & Labor Warranty

1 Year

Compressor Warranty

5 Years

UPC

761101050423

Number of Zones

2

Door Swing

French

Adjustable Shelves

Yes

Shelf Type

Wire and Wood

Shelf Qty

9

Thermostat Type

Digital

Interior Light

Yes

Fan Type

Interior and Exterior

Refrigerant Type

R600a

Refrigerant Amount

1.23 oz.

High Side PSI

270.0

Low Side PSI

105.0

Interior Height 1

26.38" (67 cm)

Interior Width 1

12.0" (30 cm)

Interior Depth 1

17.5" (44 cm)

Compressor Step Height

3.0" (8 cm)

Compressor Step Width

26.75" (68 cm)

Compressor Step Depth

5.0" (13 cm)

Level Legs

2

Temperature Range

Left side: 36 to 43 F; Right side: 41 to 72 F

Interior Height 2

24.75" (63 cm)

Interior Width 2

12.0" (30 cm)

Interior Depth 2

17.5" (44 cm)

Sabbath Mode

Yes

GTIN

00761101050423

EAN

0761101050423

UPC

761101050423

Meets UL-471 commercial standards

Make the best use of space by installing this unit under the counter

Two independent zones allow you to store both red and white wine or craft beer at the proper conditions

Interior digital thermostat lets you separately manage the temperature of each section, with a readout viewable in Celsius or Fahrenheit

Store up to 33 standard Bordeaux style wine bottles in the right section and up to 72 8 oz. cans or 48 12 oz. bottles in the beverage section. To accommodate wider Burgundy style wine or champagne bottles, you can remove every other wine shelf

Gentle and energy efficient LED lighting in an attractive white hue offers an elegant view of stored items

Red wine section includes six removable wooden shelves for proper bottle storage

Craft beer section is equipped with three adjustable black wire shelves with an attractive wooden trim to complement the wine section

Floor is specially designed with slots to allow you to store larger champagne or Burgundy style bottles safely on their sides

Sleek stainless steel handles add an elegant touch to any setting

French door swing offers a modern look, with stainless steel door trim for an added accent

Keyed locks on both zones offer separate security for interior contents

Reduced user maintenance with automatic defrost

Internal fans ensure both interiors have a consistent temperature from top to bottom

Setting allows you to disable the digital displays, lights, and alarms for religious observance.

Audible alarm sounds if the interior temperature rises above the recommended range

Alarm will sound if either door is left open for over 60 seconds

In the event of power loss, the unit will retain its last temperature settings upon power recovery

Space-saving design with no exposed coils in the rear offers easy cleanability

Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Allows the unit to be used freestanding

Environmentally friendly design without ozone-damaging chemicals

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
