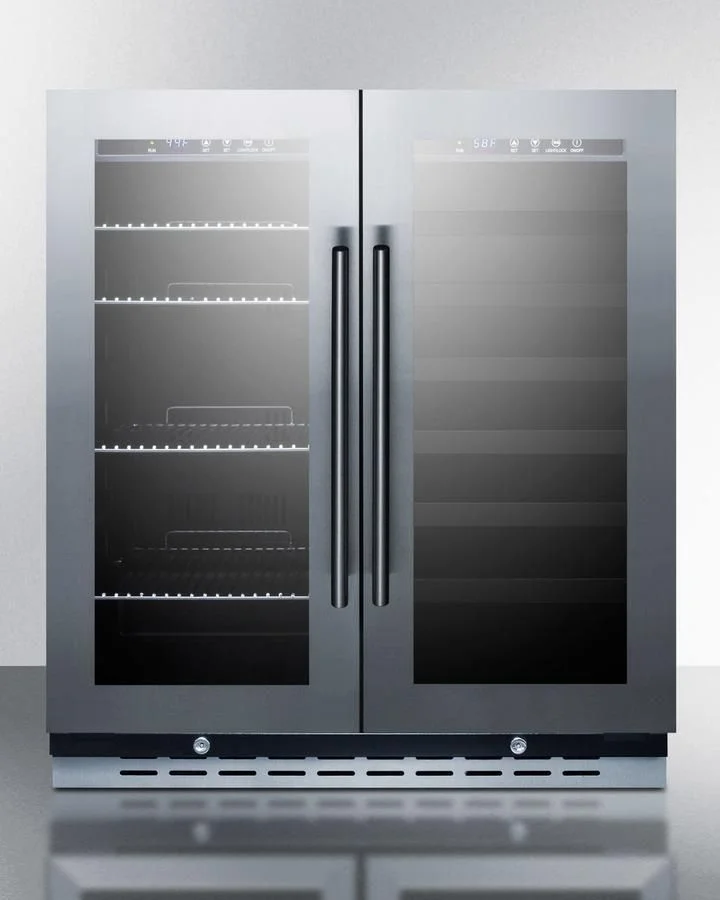

Summit 30" Wide Built-in Wine/beverage Center

Nominal Height

35.0" (89 cm)

Height of Cabinet

34.38" (87 cm)

Nominal Width

30.0" (76 cm)

Width

29.5" (75 cm)

Nominal Depth

23.0" (58 cm)

Depth

22.5" (57 cm)

Depth with Handle

24.25" (62 cm)

Depth with door at 90(degree)

36.0" (91 cm)

Capacity

5.8 cu.ft. (164 L)

Bottles

33 bottles

Defrost Type

Automatic

Door

Glass

Cabinet

Black

US Electrical Safety

ETL

Canadian Electrical Safety

ETL-C

Sanitation

ETL-S

Amps

1.25

Voltage/Frequency

115 V AC/60 Hz

Weight

132.0 lbs. (60 kg)

Parts & Labor Warranty

1 Year

Compressor Warranty

5 Years

UPC

761101055794

Number of Zones

2

Door Swing

French

Adjustable Shelves

Yes

Shelf Type

Wire and Wood

Shelf Qty

10

Thermostat Type

Digital

Interior Light

Yes

Fan Type

Interior and Exterior

Refrigerant Type

R600a

Refrigerant Amount

1.06 oz.

High Side PSI

150.0

Low Side PSI

50.0

Interior Height 1

27.38" (70 cm)

Interior Width 1

11.75" (30 cm)

Interior Depth 1

17.5" (44 cm)

Compressor Step Width

11.75" (30 cm)

Compressor Step Depth

5.0" (13 cm)

Level Legs

4

Temperature Range

41 to 64 F

Interior Height 2

27.38" (70 cm)

Interior Width 2

11.75" (30 cm)

Interior Depth 2

17.5" (44 cm)

GTIN

00761101055794

EAN

0761101055794

UPC

761101055794

ETL-S listed to ANSI-NSF Standard 7 for use in commercial establishments

Make the best use of space by installing this unit under the counter and flush with other cabinetry

Allows the unit to be used freestanding

Two independent zones allow you to store both red and white wine or craft beer at the proper conditions

Gentle and energy efficient LED lighting offers an elegant view of stored items

Each zone is equipped with electronic temperature controls for easy and intuitive temperature management

Includes 6 wooden shelves for bottle storage and 4 flat wire shelves to hold craft beer cans or bottles

Sleek stainless steel handles add an elegant touch to any setting

French door swing offers a modern look, with stainless steel door trim for an added accent

Single-piece door trim offers a more deluxe look

Keyed locks on both zones offer separate security for interior contents

Reduced user maintenance with automatic defrost

Internal fans ensure both interiors have a consistent temperature from top to bottom

Environmentally friendly design without ozone-damaging chemicals

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
