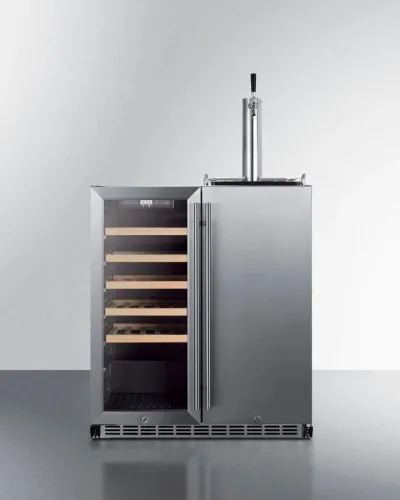

Summit 30" Built-In Wine Cooler, 6.3 cu. ft. Capacity

Nominal Height

35.0" (89 cm)

Height of Cabinet

34.25" (87 cm)

Nominal Width

30.0" (76 cm)

Width

29.5" (75 cm)

Width with Door Open

30.0" (76 cm)

Nominal Depth

24.0" (61 cm)

Depth

23.38" (59 cm)

Depth with Handle

25.13" (64 cm)

Depth with door at 90(degree)

36.5" (93 cm)

Capacity

6.3 cu.ft. (178 L)

Bottles

24 bottles

Defrost Type

Frost-Free

Door

Glass/SS

Cabinet

Stainless Steel

US Electrical Safety

ETL

Canadian Electrical Safety

ETL-C

Amps

1.5

Weight

140.0 lbs. (64 kg)

Parts & Labor Warranty

1 Year

Compressor Warranty

5 Years

UPC

761101081571

Number of Zones

2

Door Swing

French

Adjustable Shelves

Yes

Shelf Type

Wood

Shelf Qty

5

Thermostat

Digital

Interior Light

Yes

Fan

Interior and Exterior

Refrigerant

R600a

Refrigerant Amount

0.78 oz.

High Side PSI

220.0

Low Side PSI

43.0

Level Legs

4

Wheel

4

Temperature Range

Left side: 39 F to 72 F; Right side: 32 F to 72 F

Sound Level

34.1 dB

Interior Height 1

26.75" (68 cm)

Interior Width 1

12.25" (31 cm)

Interior Depth 1

18.5" (47 cm)

Interior Height 2

26.75" (68 cm)

Interior Width 2

12.25" (31 cm)

Interior Depth 2

18.5" (47 cm)

Compressor Step Height

3.75" (10 cm)

Compressor Step Width

12.25" (31 cm)

Compressor Step Depth

5.0" (13 cm)

Tap Kit

Yes

Number of Taps

1

Height with Tap

40.0" (102 cm)

GTIN

00761101081571

EAN

0761101081571

UPC

761101081571

Single compressor operation with two distinct temperature zones allows you to preserve and display wine on the left while tapping draft beer on the right

Includes all the tapping equipment you need to serve beer from a sixtel keg, with a stainless steel tower and faucet, CO2 tank, and regulator

Durable, weatherproof construction designed to hold up to the elements

Front-breathing design allows the unit to be built-in under counters

Each compartment features a wide range, allowing you to find the right temperature for a variety of wine and beer

Keyed lock on each door provides security as needed

Cabinet, kegerator door, and wine cellar door trim feature stainless steel construction for a professional look with lasting durability

No-frost operation for minimal user maintenance

Internal fans ensure both interiors have a consistent temperature from top to bottom

Electronic controls for seamless temperature management, with readout in either Celsius or Fahrenheit

White LED offers an attractive and efficient presentation

Wine cellar includes five slide-out wooden shelves to accommodate your bottles

Stainless steel handles add style to any setting

Right side is designed to accept a 1/6 (sixtel) barrel keg or corny keg

Attractive chrome guard rail helps to neaten service

Two-piece plastic drip tray included to help catch spills

Kegerator interior includes steel cover to protect the floor when loading kegs

Space-saving and makes for quick cleaning of the unit s exterior

Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Set of four wheels (two with locking brakes) for optional installation to allow more mobility as needed

Allows you to lock the control panel to prevent accidental adjustments

Allows the unit to be used freestanding

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Environmentally friendly design with no ozone-damaging chemicals
