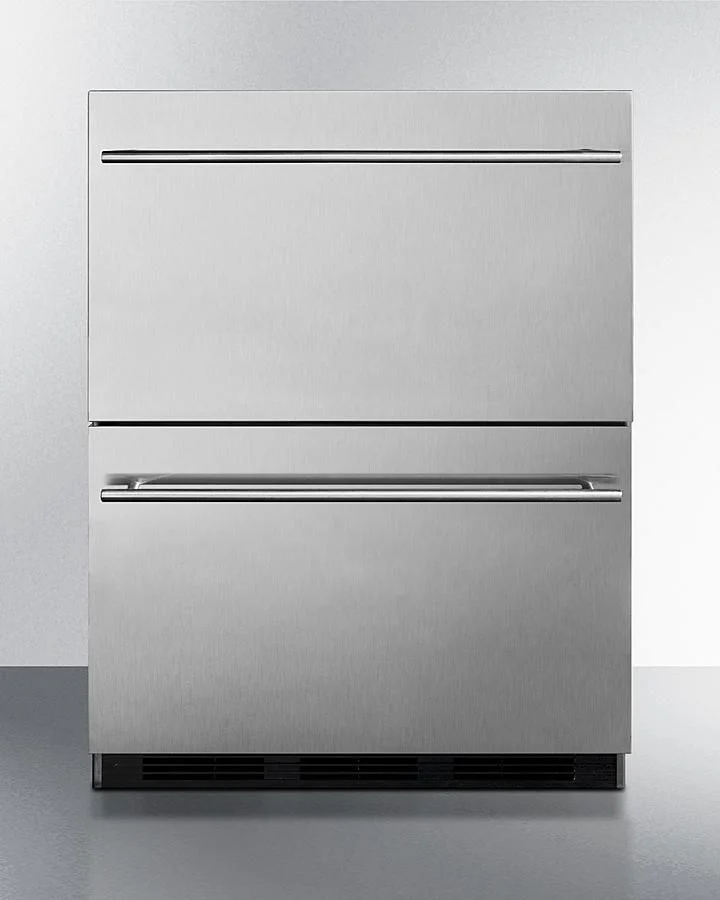

Summit 24" Built-In Drawer Refrigerator, 3.1 cu. ft. Capacity

Nominal Height

32.0" (81 cm)

Height of Cabinet

32.25" (82 cm)

Nominal Width

24.0" (61 cm)

Width

23.63" (60 cm)

Nominal Depth

24.0" (61 cm)

Depth

23.88" (61 cm)

Depth with Handle

25.38" (64 cm)

Depth with door at 90(degree)

41.25" (105 cm)

Capacity

3.1 cu.ft. (88 L)

Defrost Type

Automatic

Door

Stainless Steel

Cabinet

Stainless Steel

US Electrical Safety

ETL

Canadian Electrical Safety

ETL-C

Sanitation

ETL-S

Amps

1.2

Weight

120.0 lbs. (54 kg)

Parts & Labor Warranty

1 Year

Compressor Warranty

5 Years

UPC

761101069517

Thermostat Type

Dial

Fan Type

Interior and Exterior

Refrigerant Type

R600a

Refrigerant Amount

0.64oz.

High Side PSI

180.0

Low Side PSI

80.0

Level Legs Qty

4

Interior Height 1

9.5" (24 cm)

Interior Width 1

18.75" (48 cm)

Interior Depth 1

12.0" (30 cm)

Interior Height 2

12.63" (32 cm)

Interior Width 2

17.25" (44 cm)

Interior Depth 2

16.0" (41 cm)

Compressor Step Height

5.75" (15 cm)

Compressor Step Width

18.75" (48 cm)

Compressor Step Depth

4.0" (10 cm)

GTIN

00761101069517

EAN

0761101069517

UPC

761101069517

32 inch height is designed to fit under ADA compliant counters

ETL-S listed to NSF-7 Standards for use in commercial establishments

Less than 24 inches wide to fit tight spaces

Make the best use of space by installing your appliance under the counter and flush with other cabinetry

Allows the unit to be used freestanding

Built with solid durability, inside and out

Reduced maintenance with auto defrost system

Dial thermostat for easy temperature management

Special rear section is perfect for chilling wine and beer from room to drinking temperature in under an hour

Wire divider lets you separate items into four sections for easier organization

Order our conversion kit to install your own panels over the drawers

Environmentally friendly design does not contain ozone-damaging chemicals

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
