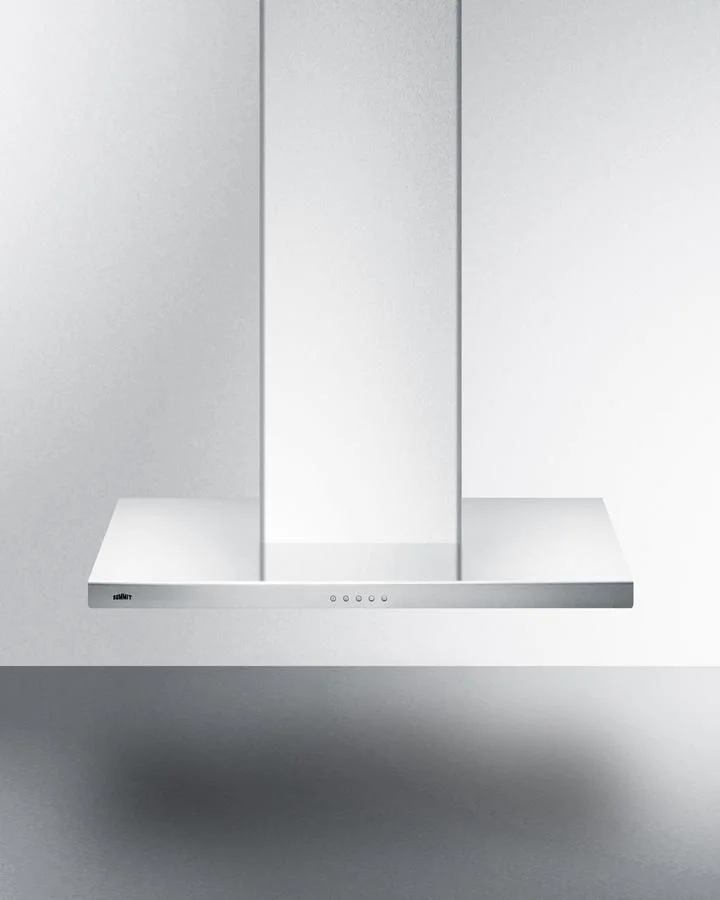

Summit 30" Wide Wall-mounted Range Hood, ADA Compliant

SKU: SEH4630SSADA
  • Energy Star Rated: no
Summit | Authorized Dealer
Pre-Order

Estimates for:

Protect Your Item

$800.00
EARN 800 POINTS (sign in / sign up for free)

Protect Your Item

PRODUCT DESCRIPTION

Summit's selection of European-style range hoods includes units specially designed to be installed in compliance with Sections 308 and 309 of the ADA Guidelines. Sized at 30" wide, model SEH4630SSADA is perfect for all kitchens looking for elegant style and powerful ventilation. This unit features brushed stainless steel construction with a horizontal grain and a rectangular T-shaped canopy to suit any setting. We include a chimney extender that lets you adjust the height to best fit your space. Two pre-installed LED light bulbs offer convenient illumination for your cooking surface. The SEH4630SSADA comes with a remote terminal block and wall switch cover to allow the controls to be installed separately from the hood and at a lower, accessible height following ADA guidelines. The 3-speed fan and 15-minute timer are operated from an easy-to-use slider control panel. Some assembly is required. This range hood can be used ducted with a 6" round duct, or for recirculating/ducted operation. We include two charcoal filters for use in kitchens where there is no exhaust connection to the outside. Two aluminum mesh cassette filters offer plenty of ventilation coverage. This model includes a pre-installed 3-prong 115V cord and mounting bracket. Additional ADA-compliant wall-mounted and under cabinet range hoods are available in a variety of sizes and styles. Browse our website for more choices.

Specifications

Nominal Height

30.0" (76 cm)

Height of Cabinet

29.5" (75 cm)

Nominal Width

30.0" (76 cm)

Width

29.5" (75 cm)

Nominal Depth

20.0" (51 cm)

Depth

19.69" (50 cm)

Door

Stainless Steel

Cabinet

Stainless Steel

US Electrical Safety

ETL

Amps

2.6

Voltage/Frequency

115 V AC/60 Hz

Weight

52.0 lbs. (24 kg)

Parts & Labor Warranty

1 Year

UPC

761101107325

Installation

Wall-Mounted

Venting

Convertible

Controls

Push Button

Light

Yes

Number of Lights

2

Light Type

LED

Number of Fan Speeds

3

Maximum Air Movement

400.0 CFM

Sone Rating

10

Minimum Height

15.75" (40 cm)

Maximum Height

29.5" (75 cm)

Duct Shape

6" Round

GTIN

00761101107325

EAN

0761101107325

UPC

761101107325

Control panel comes on a remote terminal block to be installed according to ADA compliant guidelines for improved accessibility (some assembly required)

Can be used for ducted venting to the outside or recirculating ventilation where no external venting is possible

Two round carbon filters attach to the blower to absorb grease and odors when using the hood in recirculating mode

400 CFM blower to effectively remove smoke and cooking odors from your kitchen

Pre-installed power cord with 3-prong plug for 115V outlets

Includes two pre-installed LED bulbs to illuminate your cooking surface

Durable construction in an attractive style with a horizontal grain

Touch buttons located towards the front of the hood let you adjust your ventilation and lighting as needed

Choose from three speeds to provide the proper level of ventilation for your cooking

Two mesh filters capture grease particles and are removable for easy cleanup

Ideal for most kitchen settings

Popular rectangular T-shape style offers an attractive, modern look to complement any kitchen
