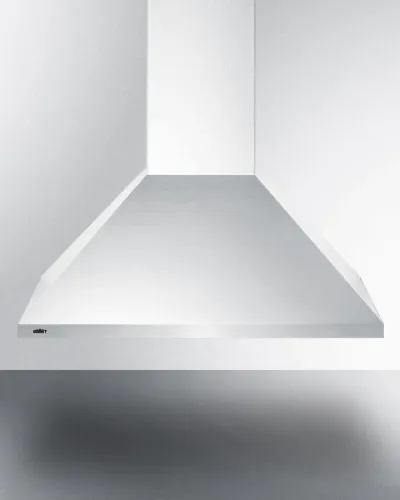

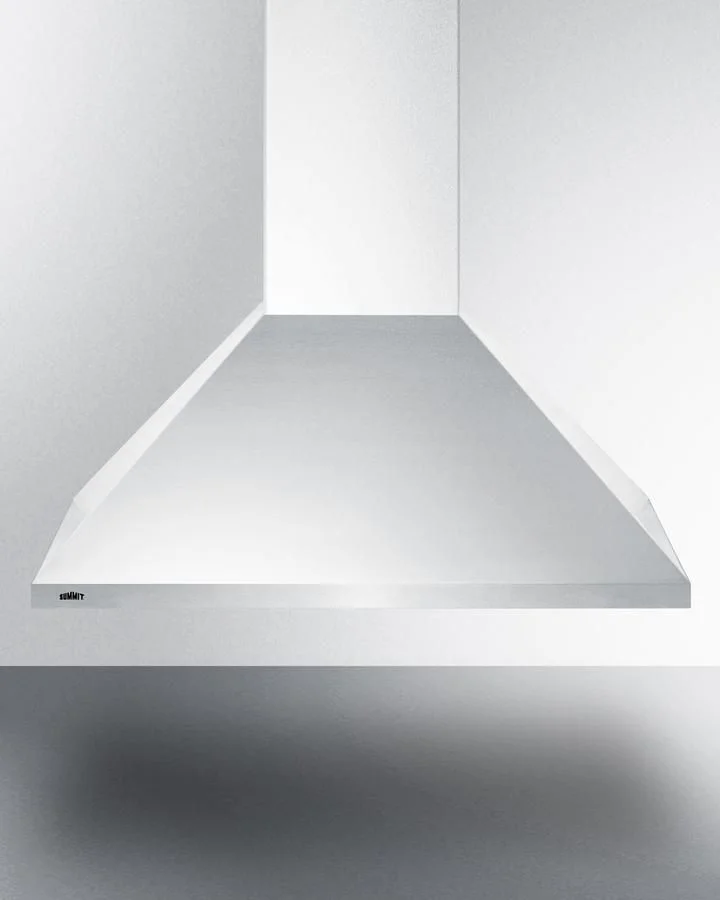

Summit 30" Wide Wall-mounted Range Hood, ADA-compliant

SKU: SEH1530SSADA
  • Energy Star Rated: No
  • Type: Built-In
Summit |Authorized Dealer
In Stock
$765.00
Sign in / Sign up to earn 765 points (
$19.13
)

Estimates for:

Protect Your Item

PRODUCT DESCRIPTION

Summit's selection of European-style range hoods includes units specially designed to be installed in compliance with Sections 308 and 309 of the ADA Guidelines. Sized at 30" wide, model SEH1530SSADA is perfect for all kitchens looking for elegant style and powerful ventilation. This unit features brushed stainless steel construction with a horizontal grain and a rectangular T-shaped canopy to suit any setting. We include a chimney extender that lets you adjust the height to best fit your space. Two pre-installed LED light bulbs offer convenient illumination for your cooking surface. The SEH1530SSADA comes with a remote terminal block and wall switch cover to allow the controls to be installed separately from the hood and at a lower, accessible height following ADA guidelines. The 3-speed fan and 15-minute timer are operated from an easy-to-use slider control panel. Some assembly is required. This range hood can be used ducted with a 6" round duct, or for recirculating/ducted operation. We include two charcoal filters for use in kitchens where there is no exhaust connection to the outside. Two aluminum mesh cassette filters offer plenty of ventilation coverage. This model includes a pre-installed 3-prong 115V cord and mounting bracket. Additional ADA-compliant wall-mounted and under cabinet range hoods are available in a variety of sizes and styles. Browse our website for more choices.

Specifications

overview

Nominal Height
38.0" (97 cm)
Height of Cabinet
37.25" (95 cm)
Nominal Width
30.0" (76 cm)
Width
29.5" (75 cm)
Nominal Depth
20.0" (51 cm)
Depth
19.69" (50 cm)
Door
Stainless Steel
Cabinet
Stainless Steel
US Electrical Safety
ETL
Amps
2.6
Voltage/Frequency
115 V AC/60 Hz
Weight
40.0 lbs. (18 kg)
Parts & Labor Warranty
1 Year
UPC
761101107264

range hood

Installation
Wall-Mounted
Venting
Convertible
Controls
Slide
Light
Yes
Number of Lights
2
Light Type
LED
Number of Fan Speeds
3
Maximum Air Movement
400.0 CFM
Minimum Height
25.5" (65 cm)
Maximum Height
37.25" (95 cm)
Duct Shape
6" Round

GS1

GTIN
00761101107264
EAN
0761101107264
UPC
761101107264
