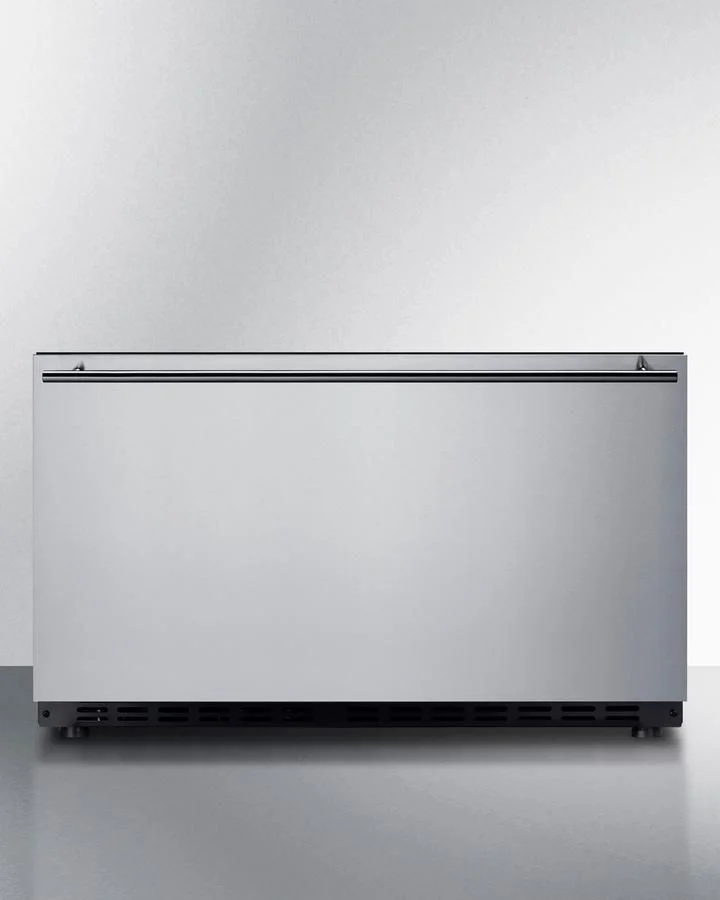

SUMMIT SDR30 | 30" Built-In Drawer Refrigerator, 2.5 cu. ft. Capacity

Name: Summit SDR30 30" Built-In Drawer Refrigerator, 2.5 cu. ft. Capacity
Brand: Summit
SKU: SDR30
Price: 2460.00 USD
Availability: InStock
Rating: 3.0 (14 reviews)

PRODUCT DESCRIPTION

Summit offers a quality line of commercially approved drawer refrigerators, including single drawer options for built-in installation. The SDR30 is a single drawer all-refrigerator that meets NSF-7 and UL-471 commercial standards and is also approved for residential settings. It's sized at just under 30" wide for an easy fit in standard cutouts, with a front-breathing design that allows built-in installation. The fully finished black cabinet also enables freestanding use. The drawer features 304 grade stainless steel construction inside and out, with a fully finished front that can also be customized with your own overlay panel (not included) to match existing cabinetry style (panel dimensions: 15.6" H x 29.5" W at 3/4" maximum thickness). This unit has a sealed rear with no exposed coils and a right angle plug for an easier fit. Inside, the SDR30 has a 2.5 cu.ft. capacity to accommodate your storage needs. Frost-free operation with fan-forced cooling ensures even temperature distribution with minimal user maintenance. A digital thermostat, located atop the refrigerator drawer, makes it easy to manage the temperature, with an LED display that can be read in Celsius or Fahrenheit. Two removable dividers let you separate the drawer into one, two, or three zones to accommodate a variety of sizes. We also include a half-sized glass shelf. LED lighting affords a convenient view of store contents, while a child lock will disable the digital controls after two minutes of inactivity to prevent accidental adjustments. Additional features include audible alarms for high-temperature fluctuations and open drawer alerts, while a temporary memory function helps to recover all settings in the event of power loss. The Sabbath Mode setting disables certain electrical features during periods of religious observance. With its fully-featured, weatherproof design, the SDR30 is the perfect cooling compartment or beverage holder for home kitchens, as well as hotel spaces, foodservice areas, and more. Additional single drawer choices are available in a 21" and 24" width, with a 36" choice available soon. Note: This unit ships with a polycarbonate strip over the control panel to protect it from the elements. If installing this drawer in outdoor kitchens, keep the cover in place.

Specifications

Nominal Height

18.0" (46 cm)

Height of Cabinet

17.75" (45 cm)

Nominal Width

30.0" (76 cm)

Width

29.5" (75 cm)

Nominal Depth

22.0" (56 cm)

Depth

22.0" (56 cm)

Depth with Handle

23.5" (60 cm)

Depth with door at 90(degree)

37.88" (96 cm)

Capacity

2.54 cu.ft. (72 L)

Defrost Type

Frost-Free

Door

Stainless Steel/Panel-Ready

Cabinet

Black

US Electrical Safety

ETL

Canadian Electrical Safety

ETL-C

Sanitation

ETL-S

Energy Usage/Year

280.0kWh/year

Amps

1.0

Voltage/Frequency

115 V AC/60 Hz

Weight

77.0 lbs. (35 kg)

Parts & Labor Warranty

1 Year

Compressor Warranty

5 Years

UPC

761101086606

Sabbath Mode

Yes

Door Swing

Drawer

Reversible

Shelf Type

Glass

Shelf Qty

Adjustable Shelves

Yes

Thermostat Type

Digital

Fan Type

Interior and Exterior

Refrigerant Type

R600a

Refrigerant Amount

0.92oz.

High Side PSI

270.0

Low Side PSI

105.0

Level Legs Qty

Interior Light

Yes

Temperature Range

36 to 43 F

Sound Level

34.3 dB

Interior Height

13.0" (33 cm)

Interior Width

23.63" (60 cm)

Interior Depth

15.5" (39 cm)

Compressor Step Height

6.5" (17 cm)

Compressor Step Width

23.63" (60 cm)

Compressor Step Depth

4.5" (11 cm)

GTIN

00761101086606

EAN

0761101086606

UPC

761101086606

2.5 cu.ft. all-refrigerator in a single drawer style

ETL-S listed to NSF-7 standard and meets UL-471 for use in commercial settings

Front-breathing design allows you to build the drawer into cabinetry

Drawer front and interior constructed from stainless steel for added durability and easy cleanability

Minimum user maintenance with a fully no-frost operation system

Electronic controls located on the top drawer ensure easy temperature management, with an external readout of Celsius or Fahrenheit

Elegant LED lighting in a gentle white hue illuminates the refrigerator for an easy view of the interior

Removable divider makes it easy to organize stored items

Includes one half-sized shelf that lets you create more separation as needed

Fan-forced cooling ensures the unit is evenly cooled

Unit will retain its last settings when power is restored in the event of power loss

A sleek stainless steel handle adds an elegant touch to any setting

Audible alarm will sound if the drawer is left open longer than one minute

Optional setting lets you disable certain electrical functions during periods of religious observance for 48 hours

Disables digital controls after two minutes of activity for added safety

Space-saving design with no exposed coils for easier cleanability

Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Allows the unit to be used freestanding

Environmentally friendly design without ozone-damaging chemicals

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
