SUMMIT SDR241OS | 23" Built-In Drawer Refrigerator, 2.0 cu. ft. Capacity

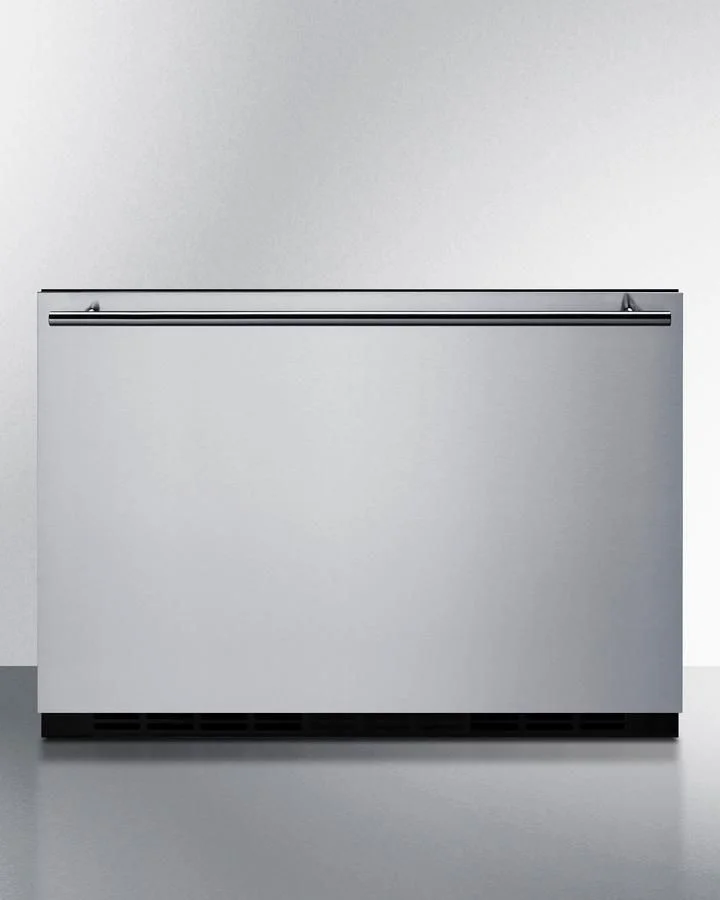

Name: Summit SDR241OS 23" Built-In Drawer Refrigerator, 2.0 cu. ft. Capacity
Brand: Summit
SKU: SDR241OS
Price: 2325.00 USD
Availability: InStock
Rating: 3.0 (14 reviews)

PRODUCT DESCRIPTION

Summit manufactures an extensive selection of built-in refrigeration specially constructed for safe and reliable cooling in outdoor kitchens. The SDR241OS is a single drawer all-refrigerator that meets NSF-7 and UL-471 commercial standards and is also approved for residential settings. It's sized at just under 24" wide for an easy fit in standard cutouts, with a front-breathing design that allows built-in installation. The weatherproof construction allows safe use in outdoor settings, with a sealed back and fully finished black cabinet to ensure all components are protected from the elements. The drawer is constructed from 304 grade stainless steel, with a pro style handle and fully finished front. For more custom style, the drawer is panel-ready, allowing you to match or complement existing cabinetry in a few simple steps (suggested panel dimensions: 15.6" H x 23.4" W at 3/4" maximum thickness). Frost-free operation with fan-forced cooling ensures even temperature distribution with minimal user maintenance. A digital thermostat, located atop the refrigerator drawer, makes it easy to manage the temperature, with an LED display that can be read in Celsius or Fahrenheit. We include a removable clear cover that helps protect all components from the elements. To adjust the settings, slide the off to access the screen. Inside, the SDR241OS offers a full 2 cu.ft. capacity to accommodate your storage needs. Two removable dividers let you separate the drawer into one, two, or three zones to accommodate a variety of sizes. We also include a half-sized glass shelf. LED lighting affords a convenient view of store contents, while a child lock will disable the digital controls after two minutes of inactivity to prevent accidental adjustments. Additional features include audible alarms for high-temperature fluctuations and open drawer alerts, while a temporary memory function helps to recover all settings in the event of power loss. The Sabbath Mode setting disables certain electrical features during periods of religious observance. With its fully-featured, weatherproof design, the SDR241OS is the perfect cooling compartment or beverage holder in outdoor or indoor home kitchens, as well as hotel spaces, foodservice areas, and more. Note: This unit ships with a polycarbonate strip over the control panel to protect it from the elements. If installing this drawer in outdoor kitchens, keep the cover in place.

Specifications

Nominal Height

18.0" (46 cm)

Height of Cabinet

17.75" (45 cm)

Nominal Width

24.0" (61 cm)

Width

23.38" (59 cm)

Nominal Depth

22.0" (56 cm)

Depth

22.0" (56 cm)

Depth with Handle

23.5" (60 cm)

Depth with door at 90(degree)

37.88" (96 cm)

Capacity

2.0 cu.ft. (57 L)

Defrost Type

Frost-Free

Door

Stainless Steel/Panel-Ready

Cabinet

Black

US Electrical Safety

ETL

Canadian Electrical Safety

ETL-C

Sanitation

ETL-S

Energy Usage/Year

265.0kWh/year

Amps

1.0

Voltage/Frequency

115 V AC/60 Hz

Weight

62.0 lbs. (28 kg)

Parts & Labor Warranty

1 Year

Compressor Warranty

5 Years

UPC

761101089119

Sabbath Mode

Yes

Door Swing

Drawer

Reversible

Shelf Type

Glass

Shelf Qty

Adjustable Shelves

Yes

Thermostat Type

Digital

Fan Type

Interior and Exterior

Refrigerant Type

R600a

Refrigerant Amount

0.85oz.

High Side PSI

270.0

Low Side PSI

105.0

Level Legs Qty

Interior Light

Yes

Temperature Range

36 to 43 F

Sound Level

32.6 dB

Interior Height

13.0" (33 cm)

Interior Width

17.75" (45 cm)

Interior Depth

15.5" (39 cm)

Compressor Step Height

6.5" (17 cm)

Compressor Step Width

17.75" (45 cm)

Compressor Step Depth

4.5" (11 cm)

GTIN

00761101089119

EAN

0761101089119

UPC

761101089119

2 cu.ft. all-refrigerator in a single drawer style to complete any indoor or outdoor kitchen space

Durable construction allows safe installation in outdoor kitchens

ETL-S listed to NSF-7 standard and meets UL-471 for use in commercial settings

Front-breathing design allows you to build the drawer into cabinetry

Drawer front and interior constructed from stainless steel for added durability and easy cleanability

Minimum user maintenance with a fully no-frost operation system

Electronic controls located on the top drawer ensure easy temperature management, with an external readout of Celsius or Fahrenheit

Elegant LED lighting in a gentle white hue illuminates the refrigerator for an easy view of the interior

Removable divider makes it easy to organize stored items

Includes one half-sized shelf that lets you create more separation as needed

Fan-forced cooling ensures the unit is evenly cooled

Unit will retain its last settings when power is restored in the event of power loss

A sleek stainless steel handle adds an elegant touch to any setting

Audible alarm will sound if the drawer is left open longer than one minute

Optional setting lets you disable certain electrical functions during periods of religious observance for 48 hours

Runs at under 33 dB for a quiet performance in any setting

Disables digital controls after two minutes of activity for added safety

Space-saving design with no exposed coils for easier cleanability

Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Allows the unit to be used freestanding

Environmentally friendly design without ozone-damaging chemicals

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
