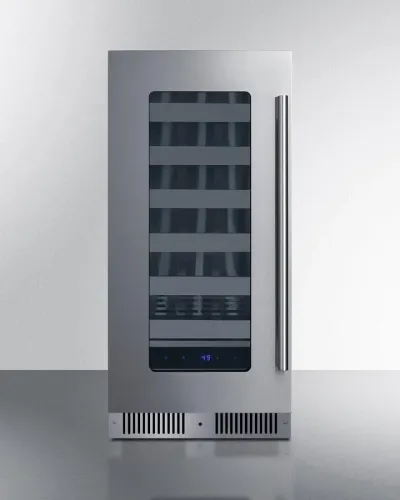

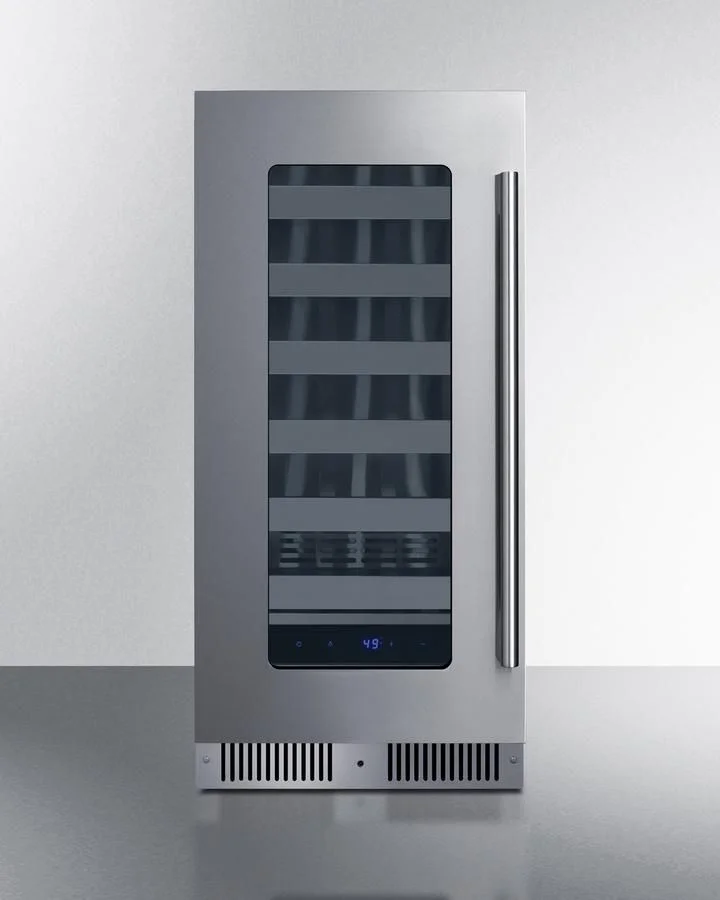

Summit 15" Built-In Wine Cooler, 1.8 cu. ft. Capacity

Nominal Height

34.0" (86 cm)

Height of Cabinet

33.75" (86 cm)

Nominal Width

15.0" (38 cm)

Width

14.75" (37 cm)

Nominal Depth

18.0" (46 cm)

Depth

18.0" (46 cm)

Depth with Handle

19.75" (50 cm)

Depth with door at 90(degree)

32.63" (83 cm)

Capacity

1.8 cu.ft. (51 L)

Bottles

18 bottles

Defrost Type

Frost-Free

Door

Glass

Cabinet

Black

US Electrical Safety

ETL

Canadian Electrical Safety

ETL-C

Sanitation

ETL-S

Amps

1.0

Voltage/Frequency

115 V AC/60 Hz

Weight

88.0 lbs. (40 kg)

Parts & Labor Warranty

1 Year

Compressor Warranty

5 Years

UPC

761101107813

Number of Zones

1

Door Swing

LHD

Adjustable Shelves

Yes

Shelf Type

Steel

Shelf Qty

6

Thermostat Type

Digital

Interior Light

Yes

Fan Type

Interior and Exterior

Refrigerant Type

R600a

Refrigerant Amount

0.64 oz.

High Side PSI

270.0

Low Side PSI

105.0

Interior Height 1

26.0" (66 cm)

Interior Width 1

10.63" (27 cm)

Interior Depth 1

12.25" (31 cm)

Compressor Step Height

3.75" (10 cm)

Compressor Step Width

10.63" (27 cm)

Compressor Step Depth

5.0" (13 cm)

Temperature Range

41(degree)F to 68(degree)F

Sabbath Mode

Yes

Sound Level

33.3 dB

GTIN

00761101107813

EAN

0761101107813

UPC

761101107813

Single zone wine cooler for residential or commercial storage

Front-breathing design lets you make the best use of space by installing your appliance under the counter

ETL-S listed to NSF-7 Standards and meets UL-471 for use in commercial establishments

Elegant design offers a clear but protected view of your interior

Glass is framed by with a flush one-piece stainless steel trim for an elevated look

Smoother opening and a better fit with an integrated European hinge

Walls and floor are constructed from stainless steel for added strength and easy cleanup

Keyed lock for a secure interior (2 keys included)

Stainless steel handle completes the look

Removable steel shelves in a black finish with stainless steel trim for an elegant but modern look

No-frost operation for minimum user maintenance

Easy-to-use digital controls allow for precise temperature settings, which is crucial for maintaining the ideal storage temperature

Thermostat s unique and ergonomic position allows for more accessible temperature readings with zero bending required

Efficient and attractive presentation with white LED lighting strips located on each side of the cabinet that can be adjusted between three levels of brightness

Alarm sounds if the door is left open for more than 60 seconds

Audible alarm sounds if the interior temperature rises out of set range

18-bottle capacity with five gliding shelves that can each hold up to 6 bottles, and a floor shelf to hold up to 3 bottles in a horizontal configuration (NOTE: capacity may vary depending on specific bottle style)

Fan-forced cooling ensures fast temperature recovery and that the unit is evenly cooled from top to bottom

Optional setting lets you disable the lighting and alarm for up to 96 hours

Unit will retain its last settings when power is restored in the event of power loss

Allows the unit to be used freestanding

Space-saving design with no exposed coils that offers easier cleanability

Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

For this unit with a standard right-hand door swing, see model SDHW1532

Environmentally friendly design with no ozone-damaging chemicals

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
