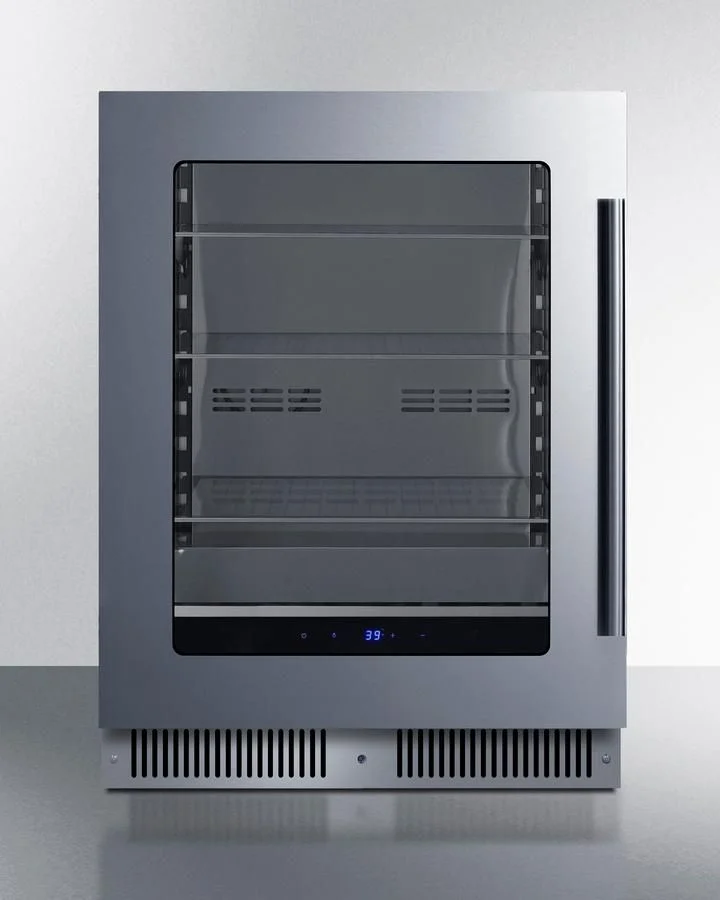

Summit 24" Wide Built-in Beverage Center

Nominal Height

34.0" (86 cm)

Height of Cabinet

33.75" (86 cm)

Nominal Width

24.0" (61 cm)

Width

23.38" (59 cm)

Nominal Depth

18.0" (46 cm)

Depth

18.0" (46 cm)

Depth with Handle

19.75" (50 cm)

Depth with door at 90(degree)

41.25" (105 cm)

Capacity

3.5 cu.ft. (99 L)

Bottles

33 bottles

Defrost Type

Frost-Free

Door

Glass

Cabinet

Black

US Electrical Safety

ETL

Canadian Electrical Safety

ETL-C

Sanitation

ETL-S

Energy Usage/Year

290.0kWh/year

Amps

1.0

Voltage/Frequency

115 V AC/60 Hz

Weight

116.0 lbs. (53 kg)

Parts & Labor Warranty

1 Year

Compressor Warranty

5 Years

UPC

761101107851

Sabbath Mode

Yes

Door Swing

LHD

Shelf Type

Glass

Shelf Qty

3

Adjustable Shelves

Yes

Thermostat Type

Digital

Fan Type

Interior and Exterior

Refrigerant Type

R600a

Refrigerant Amount

1.38oz.

High Side PSI

270.0

Low Side PSI

105.0

Interior Light

Yes

Temperature Range

36(degree) F to 43(degree)F

Sound Level

33.5 dB

Interior Height

26.0" (66 cm)

Interior Width

19.25" (49 cm)

Interior Depth

12.25" (31 cm)

Compressor Step Height

3.75" (10 cm)

Compressor Step Width

19.25" (49 cm)

Compressor Step Depth

5.0" (13 cm)

GTIN

00761101107851

EAN

0761101107851

UPC

761101107851

Undercounter glass door beverage refrigerator for residential or commercial use

ETL-S listed to NSF-7 Standards for use in commercial establishments

Front-breathing design lets you make the best use of space by installing your appliance under the counter

Elegant design offers a clear but protected view of your interior

Glass is framed by with a flush one-piece stainless steel trim for an elevated look

Smoother opening and a better fit with an integrated European hinge

Stainless steel handle completes the look

Walls and floor are constructed from stainless steel for added strength and easy cleanup

Keyed lock for a secure interior (2 keys included)

Easy-to-use digital controls allow for precise temperature settings, which is crucial for maintaining the ideal storage temperature

Audible alarm sounds if the interior temperature rises out of set range

No-frost operation for minimum user maintenance

Thermostat s unique internal position allows for precise temperature readouts and easier temperature management

Efficient and attractive presentation with white LED lighting strips located on each side of the cabinet that can be adjusted between three levels of brightness

Alarm sounds if the door is left open for more than 60 seconds

Optional setting lets you disable the lighting and alarm for up to 48 hours during periods of observance

Unit will retain its last settings when power is restored in the event of power loss

Fan-forced cooling ensures fast temperature recovery and that the unit is evenly cooled from top to bottom

Spill-proof shelving for easy cleanup and flexible storage

Allows the unit to be used freestanding

Space-saving design with no exposed coils that offers easier cleanability

Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

For this unit with a standard right-hand door swing, see model SDHG2443

Environmentally friendly design with no ozone-damaging chemicals

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
