Summit 24" Wide Single Zone Built-In Commercial Wine Cellar in Panel Ready

SKU: SCR610BLCHPNR
  • Total Capacity: 4.00 cu. ft.
  • Width: 23.63"
  • Height: 34.00"
  • Weight: 140.00 lbs
  • Defrost: Automatic
  • Type: Built-In
Summit |Authorized Dealer
In Stock
$2,620.00
Sign in / Sign up to earn 2,620 points (
$65.50
)

color: Panel Ready

Summit SCR610BLCHPNR
  • Bottle display
  • Commercially approved
  • Built-in capable
  • Champagne racks
  • Panel-ready door trim
Learn More

Estimates for:

Protect Your Item

PRODUCT DESCRIPTION

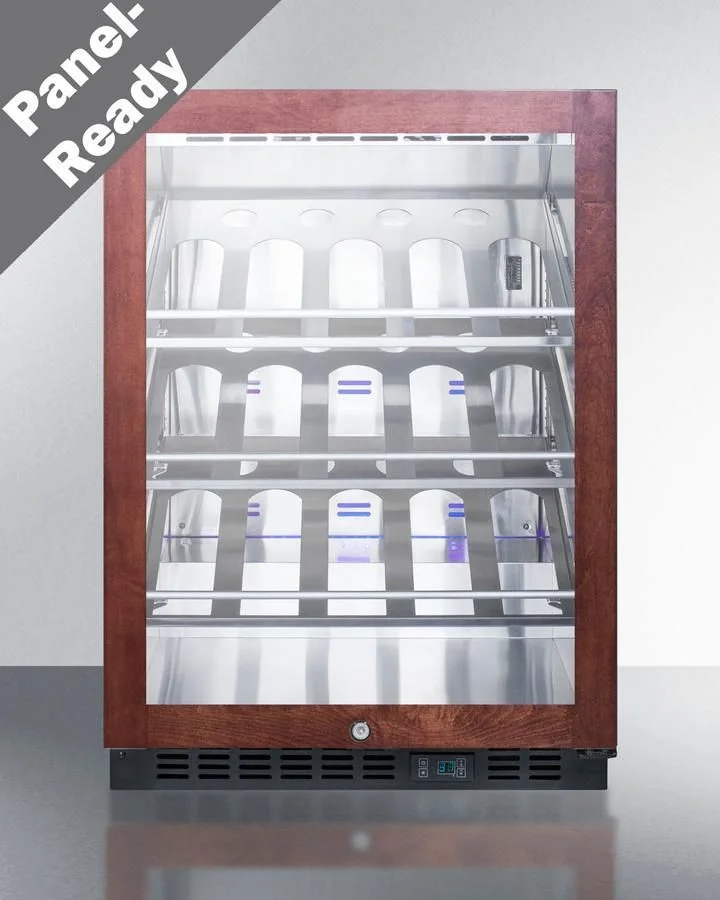

Summit Commercial offers a unique selection of wine cellars designed for optimum storage and bottle presentation. The SCR610BLCHPNR is an undercounter wine cellar built to meet NSF-7 commercial standards. The slim 24 inch footprint takes up minimum floor space, with large 5 cu.ft. interior. This unit features a front-breathing design for built-in installation, with a fully finished black cabinet that also allows freestanding use. The double tempered glass door door features a panel-ready door trim that lets you customize the look to best match adjacent cabinetry (panel dimensions: 29 7/8" H x 23 1/8" W at 3/4" minimum thickness). A factory-installed lock offers additional security. This unit ships with a right hand door swing, but can be ordered to open from the other side by adding option LHD. Users provide their own handle. Inside, the SCR610BLCHPNR includes stainless steel shelving specially designed to hold champagne and sparkling wine bottles at a slight angle, providing a full display of the label. The interior walls and floor are constructed from stainless steel for lasting durability in busy commercial settings. This unit is illuminated through the rear walls with efficient LED lighting in a striking blue hue. Digital controls make it easy to manage the interior. With its unique design and commercial grade construction, the SCR610BLCHPNR is the perfect undercounter option for storing and displaying larger bottles. Additional choices are available for outdoor use, and in larger sizes for higher bottle capacity. Browse our website for more options.

Features

Bottle display

Cantilevered clips are pre-installed so that the shelving can be installed at a slight angle to provide a display of the bottle labels. Clips can be adjusted to a flat position to accommodate more shelves

Commercially approved

ETL-S listed to NSF-7 Standards for use in commercial establishments

Built-in capable

Make the best use of space by installing this unit under the counter and flush with other cabinetry

Champagne racks

Stainless steel shelves are specially sized to store wider wine and champagne bottles

Panel-ready door trim

Door frame can be customized with a custom overlay panel (panel frame dimensions: 29 7/8" H x 23 1/8" W at 3/4" minimum thickness)

Interior LED lighting

Fully lit interior with a striking blue LED hue, providing an attractive and energy efficient view

Double pane tempered glass door

Stainless steel trimmed glass door offers a full display of stored items

Stainless steel interior

Walls are constructed from stainless steel for added strength and easy cleanup

Factory installed lock

Keyed lock for a secure interior

Digital thermostat

Intuitive digital controls ensure easy temperature management

Factory reversible door

Door ships with a right hand door swing. For a left hand version, add option "LHD"

Automatic defrost

Reduced user maintenance with automatic defrost

Fan-forced cooling

Internal fan ensures the interior is evenly cooled from top to bottom

Sealed back

Space saving design with easier cleanability

Fully finished black cabinet

Allows the unit to be used freestanding

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

CARB Compliant

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Specifications

warranty

Parts
1 Year
Labor
1 Year

dimensions & weight

Width
23.63 in.
Height
34 in.
Length
23.5 in.
Weight
140 lbs.

cubic feet measurement & dimensional weight

Cubic Feet Measurement
10.93 ft³
Dimensional Weight
135.83 lbs.
Total of Cubes
10.93 ft³
Total of Dimensional Weight
135.83 lbs.

overview wine cellar

Nominal Height
34.0" (86 cm)
Height of Cabinet
34.0" (86 cm)
Nominal Width
24.0" (61 cm)
Width
23.63" (60 cm)
Nominal Depth
24.0" (61 cm)
Depth
23.5" (60 cm)
Depth with door at 90°
45.5" (116 cm)
Capacity
5.0 cu.ft. (142 L)
Bottles
20 bottles
Defrost Type
Automatic
Door
Glass/Panel-Ready Frame
Cabinet
Black
US Electrical Safety
ETL
Canadian Electrical Safety
ETL-C
Sanitation
ETL-S
Amps
0.8
Voltage/Frequency
115 V AC/60 Hz
Weight
140.0 lbs. (64 kg)
Parts & Labor Warranty
1 Year
Compressor Warranty
5 Years
UPC
761101065502
Number of Zones
1
Door Swing
RHD
Reversible
Factory Reversible
Shelf Type
Steel
Shelf Qty
3
Thermostat Type
Digital
Interior Light
Yes
Fan Type
Interior and Exterior
Refrigerant Type
R600a
Refrigerant Amount
0.99 oz.
High Side PSI
270.0
Low Side PSI
105.0
Interior Height 1
25.0" (64 cm)
Interior Width 1
19.38" (49 cm)
Interior Depth 1
17.38" (44 cm)
Compressor Step Height
3.75" (10 cm)
Compressor Step Width
19.38" (49 cm)
Compressor Step Depth
4.63" (12 cm)
Temperature Range
36 to 43ºF
Sound Level
37.4 dB

features

Bottle display
Commercially approved
Built-in capable
Champagne racks
Panel-ready door trim
Interior LED lighting
Double pane tempered glass door
Stainless steel interior
Factory installed lock
Digital thermostat
Factory reversible door
Automatic defrost
Fan-forced cooling
Sealed back
Fully finished black cabinet
100% CFC free
CARB Compliant

GS1

UPC
761101065502
