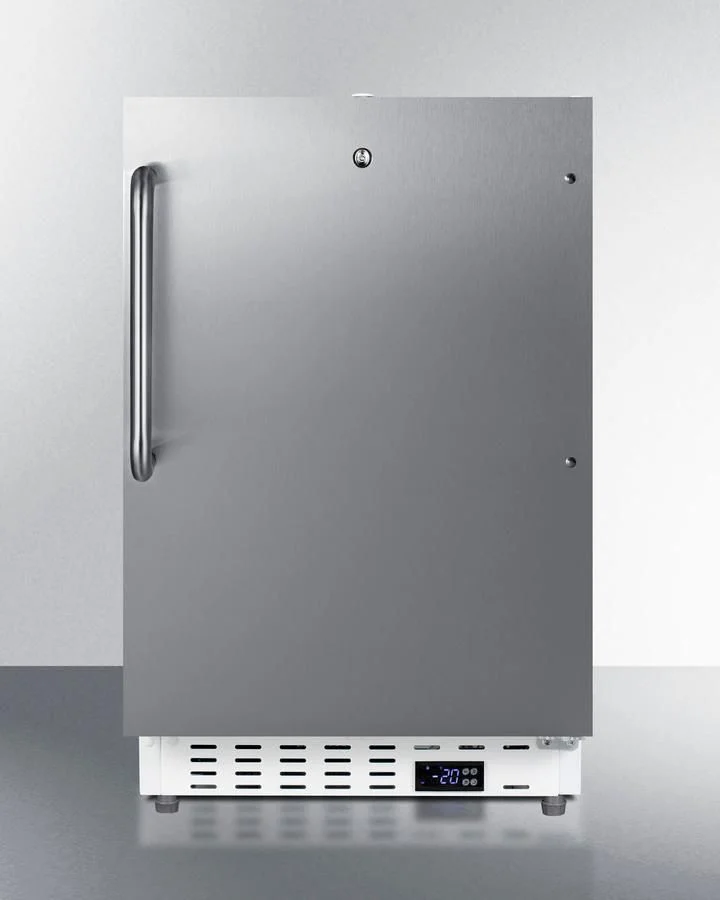

Summit 20" Built-In Upright Freezer, 2.5 cu. ft. Capacity

SKU: SCF505SSTBADA
  • Style: Upright
  • Type: Built-In
  • Width: 19.75"
  • Height: 32.00"
  • Depth: 25.00"
  • Energy Star Rated: no
  • Wi-Fi Connected: No
  • ADA Compliant: Yes
  • Total Capacity: 2.47 cu. ft.
  • Defrost: Manual
Summit |Authorized Dealer
In Stock
$2,050.00
Sign in / Sign up to earn 2,050 points (
$51.25
)

Estimates for:

Protect Your Item

PRODUCT DESCRIPTION

Summit Commercial manufactures a variety of refrigerator and freezer choices for smaller foodservice spaces, with slim-fitting options for undercounter use. Model SCF505SSTBADA is a commercial all-freezer sized at just under 20" wide and 32" high for installation under lower ADA compliant counters. Its front-breathing design and fully finished cabinet allow built-in or freestanding use for versatile placement. This model has a textured white cabinet and 304 grade stainless steel wrapped reversible door with a pro style towel bar handle. A factory-installed lock is located towards the top of the door, ensuring more comfortable access behind the bar. Easy digital controls are located in the kickplate. The temperature can be managed in Fahrenheit or Celsius and is designed to operate between -25(degree) and -15(degree)C. Inside, this freezer includes removable pull-out drawers on fixed wire shelving, with plastic fronts that help to protect contents from warmer ambient temperatures when the door is opened. This unit utilizes static manual defrost cooling for improved temperature stability. Audible open door and high/low temperature alarms help ensure stored contents are properly cooled. These alarms can also be disabled if preferred. The SCF505SSTBADA is ETL-S listed to NSF-7 commercial standards and features hydrocarbon refrigerant for a greener cooling system that meets CARB regulations. To create a matching set, pair with the SCR504SSTBADA all-refrigerator. Additional commercial refrigeration choices are available in more sizes and sizes. Browse the full Summit lineup for shallow depth back bar coolers, commercial wine cellars, clear icemakers, reach-in refrigeration, and much more.

Specifications

Nominal Height

32.0" (81 cm)

Height of Cabinet

31.75" (81 cm)

Height to Hinge Cap

32.0" (81 cm)

Nominal Width

20.0" (51 cm)

Width

19.75" (50 cm)

Width with Door Open

20.25" (51 cm)

Nominal Depth

23.0" (58 cm)

Depth

22.5" (57 cm)

Depth with Handle

25.0" (64 cm)

Depth with door at 90(degree)

40.25" (102 cm)

Capacity

2.47 cu.ft. (70 L)

Defrost Type

Manual

Door

Stainless Steel

Cabinet

White

US Electrical Safety

ETL

Canadian Electrical Safety

ETL-C

Sanitation

ETL-S

Amps

1.1

Voltage/Frequency

115 V AC/60 Hz

Weight

75.0 lbs. (34 kg)

Parts & Labor Warranty

1 Year

Compressor Warranty

5 Years

UPC

761101086149

Door Swing

RHD

Reversible

Yes

Interior Height

23.75" (60 cm)

Interior Width

14.5" (37 cm)

Interior Depth

17.0" (43 cm)

Shelf Type

Drawers

Shelf Qty

3

Thermostat Type

Digital

Fan Type

Exterior

Refrigerant Type

R600a

Refrigerant Amount

1.34 oz.

High Side PSI

180.0

Low Side PSI

80.0

Level Legs

2

Interior Drawers

Yes

Drawers Qty

3

Compressor Step Height

5.75" (15 cm)

Compressor Step Width

14.5" (37 cm)

Compressor Step Depth

6.0" (15 cm)

Temperature Range

-25(degree) to -15(degree)C

GTIN

00761101086149

EAN

0761101086149

UPC

761101086149
