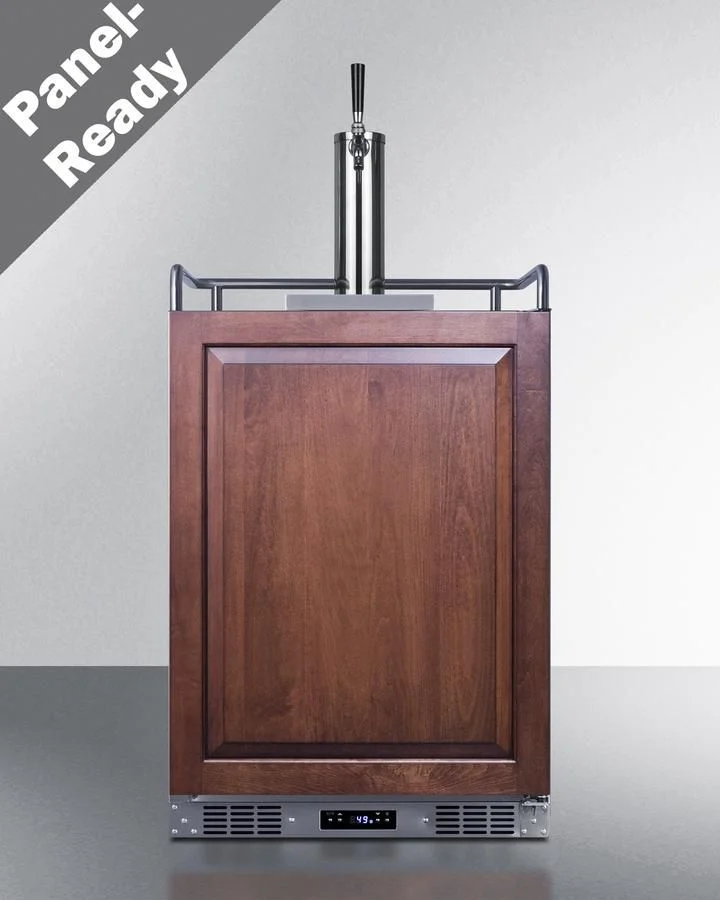

Summit 24" Built-In Beer Dispensers Refrigerator, 5.6 cu. ft. Capacity in Panel Ready
Width: 23.75"
Height: 33.63"
Weight: 120.00 lbs
Total Capacity: 5.60 cu. ft.
Defrost: Automatic
Type: Built-In
Style: Beer Dispensers
Depth: 26.25"
Wi-Fi Connected: No
Sabbath Mode: No
ADA Compliant: No
Icemaker: No
Dispenser: Yes
Refrigerator Capacity: 5.6 cu. ft.
Number of Shelves: 2
RELATED ITEMS
PRODUCT DESCRIPTION
Summit manufactures a complete line of versatile kegerators capable of built-in installation in indoor or outdoor home settings. The SBC682PNR is a full-sized beer dispenser approved for both residential or commercial use. Sized at just 24" wide, it features a front-breathing system for built-in installation and a fully-finished cabinet that also allows freestanding use, with an included caster set for optional mobility. The exterior features 304 grade stainless steel construction for safe, weatherproof use in the outdoors. The door is designed to accept overlay panels (sized at 29 3/4" H x 23 5/16" W at a 3/4" thickness) to allow you to create a custom look to best suit your own kitchen design. This unit ships with a right hand door swing. For a left hand version, add option "LHDHinge." Additional features include a removable two-piece stainless steel drip tray to collect spills and a chrome guard rail to help keep glasses and mugs in place. This unit has a sealed rear for added protection from the elements. Inside, the 5.6 cu. ft. interior can accommodate a full half or quarter keg, or up to three Cornelius or sixth barrel kegs. We include a complete commercial grade tap kit for dispensing your favorite beer, including a Sankey tap system and single tap draft tower, along with a CO2 tank and regulator. A tap cool system keeps your beer cold as it goes through your tower, and a Velcro strap holds the tank in place. The floor is constructed from stainless steel for added protection when loading and removing kegs. Two chrome shelves, with six placement options, allow the kegerator to also function as a beverage refrigerator. A digital thermostat makes it easy to manage the wide range temperature, while the external digital display has a readout in Celsius or Fahrenheit. Automatic defrost operation ensures minimal user maintenance. The Memory IC function recovers the unit's last settings in the case of a power outage or disruption. With its solid construction, user-friendly features, and attractive design, the SBC682PNR is the perfect beer dispenser for indoor or outdoor kitchens. Additional choices are available with alternate tapping options, including choices to dispense wine and coffee. Browse the full Summit line to explore all of your options.
Specifications
overview
21 items
Nominal Height
34.0" (86 cm)
Height of Cabinet
33.63" (85 cm)
Nominal Width
24.0" (61 cm)
Width
23.75" (60 cm)
Nominal Depth
25.0" (64 cm)
Depth
24.75" (63 cm)
Depth with door at 90(degree)
46.75" (119 cm)
Capacity
5.6 cu.ft. (159 L)
Defrost Type
Automatic
Door
Panel-Ready
Cabinet
Stainless Steel
US Electrical Safety
ETL
Canadian Electrical Safety
ETL-C
Sanitation
ETL-S
Energy Usage/Year
305.0kWh/year
Amps
1.25
Voltage/Frequency
115 V AC/60 Hz
Weight
120.0 lbs. (54 kg)
Parts & Labor Warranty
1 Year
Compressor Warranty
5 Years
UPC
761101083957
kegerator
21 items
Door Swing
RHD
Reversible
Reversible w/ Optional Hinge
Tap Kit
Yes
Height with Tap
51.5" (131 cm)
Number of Taps
1
Adjustable Shelves
Yes
Shelf Type
Chrome
Shelf Qty
2
Thermostat Type
Digital
Fan Type
Interior
Refrigerant
R600a
Refrigerant Amount
1.06 oz.
High Side PSI
150.0
Low Side PSI
50.0
Inter Height
26.75" (68 cm)
Interior Width
20.0" (51 cm)
Interior Depth
19.0" (48 cm)
Level Legs Qty
4
Wheel Qty
4
Temperature Range
34(degree)F to 68(degree)F (1(degree)C to 20(degree)C)
