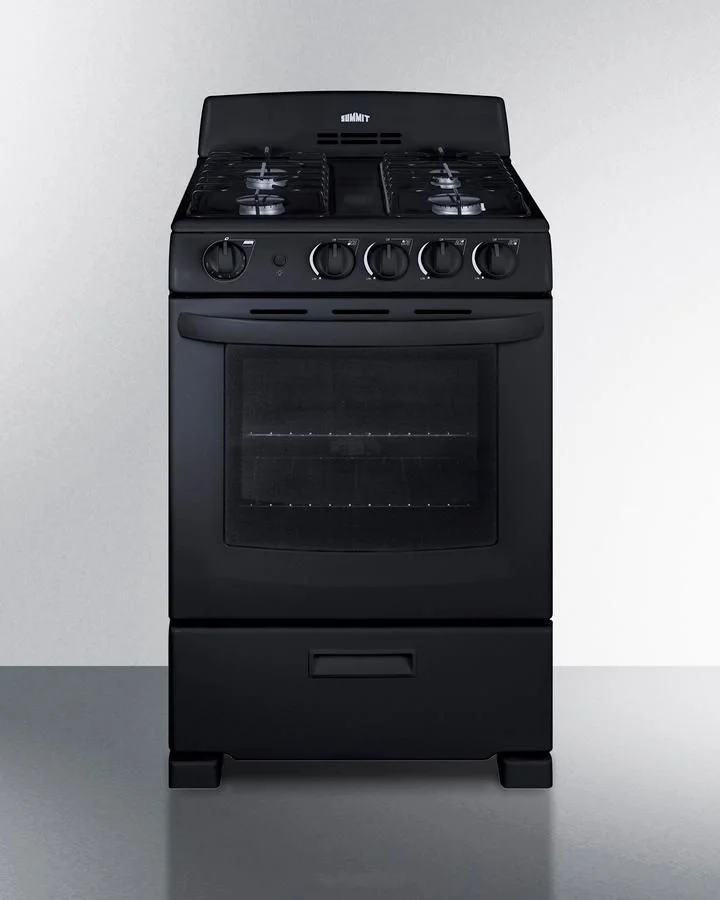

Summit 24" Freestanding Gas Range, 2.9 cu. ft. Capacity

Nominal Height

42.0" (107 cm)

Height of Cabinet

42.0" (107 cm)

Nominal Width

24.0" (61 cm)

Width

23.5" (60 cm)

Nominal Depth

24.0" (61 cm)

Depth

23.5" (60 cm)

Depth with Handle

25.75" (65 cm)

Depth with door at 90(degree)

43.25" (110 cm)

Door

Black

Cabinet

Black

US Electrical Safety

CSA

Canadian Electrical Safety

CSA-C

Amps

5.0

Voltage/Frequency

115 V AC/60 Hz

Weight

130.0 lbs. (59 kg)

Parts & Labor Warranty

1 Year

UPC

761101103778

Ignition

Spark

LP Convertible

Yes

Oven Capacity

2.9 cu.ft

Cooktop Surface

Metal

Burner Type

Sealed

Number of Burners

4

Burner #1 BTU

12000.0

Burner #2 BTU

9500.0

Burner #3 BTU

9500.0

Burner #4 BTU

5000.0

Burner Controls

Dial

Oven Controls

Dial

Oven Light

Yes

Backguard

Yes

Cleaning Type

Manual

Oven Rack Qty

2

Oven Window

Yes

Oven Interior Height

15.25" (39 cm)

Oven Interior Width

19.0" (48 cm)

Oven Interior Depth

17.5" (44 cm)

Broiler Location

Below Oven

GTIN

00761101103778

EAN

0761101103778

UPC

761101103778

Slim-fitting gas range with four sealed burners for easy cooking in apartments and other smaller kitchens

Modern style to suit any kitchen

Four sealed burners with removable cast iron tops ensure safer, cleaner cooking

Unit is set for natural gas but can be converted aftermarket with the included LP kit

Front left burner features 12,500 BTU output for powerful cooking

Two right burners operate at 9,500 BTU to handle most heating needs

Rear left burner reaches maximum of 5,000 BTUs to allow more precise heating of sensitive items

Two sets of enamel grates are removable for easy cleaning, with solid construction to support large pots and pans

Drop-down lower compartment offers the ideal conditions for broiling

Large window makes it easier to monitor your cooking

Interior light included for easy viewing

Safety knobs help prevent accidents from turning on the oven or burners

Added safety with spark ignition system

Sliding racks will stay in your oven with special brake mechanism

Two-piece broiler pan with lid included with each range

Upfront controls and easy-to-operate knobs offer easier accessibility

Solid backing prevents stovetop contents from splashing up or boiling over and staining walls

Standard 3-pronged 115V cord included for the electronic ignition

Made in North America

Included for user installation to help prevent accidents
