SUMMIT RG201B | 20" Freestanding Gas Range, 2.3 cu. ft. Capacity

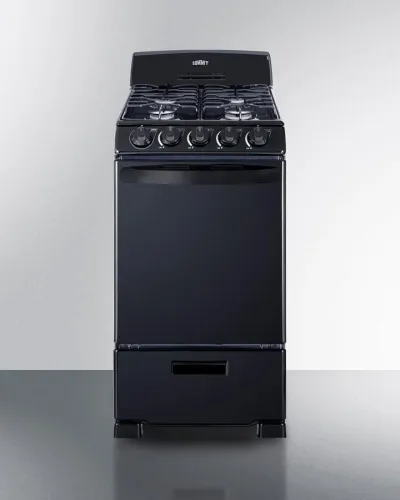

Name: Summit RG201B 20" Freestanding Gas Range, 2.3 cu. ft. Capacity
Brand: Summit
SKU: RG201B
Price: 1175.00 USD
Availability: InStock
Rating: 3.0 (14 reviews)

PRODUCT DESCRIPTION

Summit's line of slim-fitting gas ranges made in North America brings quality and value to space-challenged kitchens. The RG201B is a 20" wide gas range designed for an easy fit in smaller kitchen spaces. The 2.3 cu.ft. oven includes two slide-out racks with a safety brake system, with four position options to let you accommodate all sizes and shapes. The broiler is located in a lower drop-down compartment. The RG201B comes in a jet black finish, with color-matched push-to-turn knobs and an easy-to-grab handle. This model utilizes electronic spark ignition and features four sealed burners for safer, cleaner cooking. One 12,000 BTU burner offers faster cooking for larger vessels, with two standard 9,500 BTU burners and a smaller 5,000 BTU burner for lower heating needs. The high backguard helps to protect your walls from spills, with enamel grates for lasting durability. The unit ships set for natural gas but includes its own LP kit for aftermarket conversion. With its clean look and unique size, the RG201B s the ideal gas range for apartment and small home kitchens. For this unit in a white finish, see model RG200WS.

Specifications

Nominal Height

42.0" (107 cm)

Height of Cabinet

42.0" (107 cm)

Nominal Width

20.0" (51 cm)

Width

19.5" (50 cm)

Nominal Depth

24.0" (61 cm)

Depth

23.5" (60 cm)

Depth with Handle

25.75" (65 cm)

Depth with door at 90(degree)

43.25" (110 cm)

Door

Black

Cabinet

Black

US Electrical Safety

CSA

Canadian Electrical Safety

CSA-C

Amps

5.0

Voltage/Frequency

115 V AC/60 Hz

Weight

130.0 lbs. (59 kg)

Parts & Labor Warranty

1 Year

UPC

761101103761

Ignition

Spark

LP Convertible

Yes

Oven Capacity

2.3 cu.ft

Cooktop Surface

Metal

Burner Type

Sealed

Number of Burners

4

Burner #1 BTU

12000.0

Burner #2 BTU

9500.0

Burner #3 BTU

9500.0

Burner #4 BTU

5000.0

Burner Controls

Dial

Oven Controls

Dial

Backguard

Yes

Cleaning Type

Manual

Oven Rack Qty

2

Oven Interior Height

15.25" (39 cm)

Oven Interior Width

14.5" (37 cm)

Oven Interior Depth

17.5" (44 cm)

Broiler Location

Below Oven

GTIN

00761101103761

EAN

0761101103761

UPC

761101103761

Featuring four sealed burners and a large oven to meet all cooking needs in smaller kitchens

Four sealed burners with removable cast iron tops ensure safer, cleaner cooking

Unit is set for natural gas but can be converted aftermarket with the included LP kit

Front left burner features 12,500 BTU output for powerful cooking

Two right burners operate at 9,500 BTU to handle most heating needs

Rear left burner reaches maximum of 5,000 BTUs to allow more precise heating of sensitive items

Two sets of grates are removable for easy cleaning, with solid construction to support large pots and pans

Drop-down lower compartment offers the ideal conditions for broiling

Safety knobs help prevent accidents from turning on the oven or burners

Added safety with spark ignition system

Sliding racks will stay in your oven with special brake mechanism

Two-piece broiler pan with lid included with each range

Solid backing prevents stovetop contents from splashing up or boiling over and staining walls

Standard 3-pronged 115V cord included for the electronic ignition

Ideal for GSA contracts and other applications requiring a unit to have been manufactured in a TAA designated country

Upfront controls and easy-to-operate knobs offer easier accessibility

Included for user installation to help prevent accidents
