PRODUCT DESCRIPTION
Specifications
Nominal Height
6.0" (15 cm)
Height of Cabinet
5.5" (14 cm)
Nominal Width
20.0" (51 cm)
Width
20.0" (51 cm)
Nominal Depth
20.0" (51 cm)
Depth
20.0" (51 cm)
Cabinet
Stainless Steel
US Electrical Safety
UL
Canadian Electrical Safety
ULC
Amps
1.7
Voltage/Frequency
115 V AC/60 Hz
Weight
11.0 lbs. (5 kg)
Parts & Labor Warranty
1 Year
UPC
761101087054
Installation
Under Cabinet
Venting
Convertible
Controls
Dial
Number of Fan Speeds
2
Maximum Air Movement
270.0 CFM
Sone Rating
6
Duct Shape
3"1/4" x 10" rectangular or 7" round
GTIN
00761101087054
EAN
0761101087054
UPC
761101087054

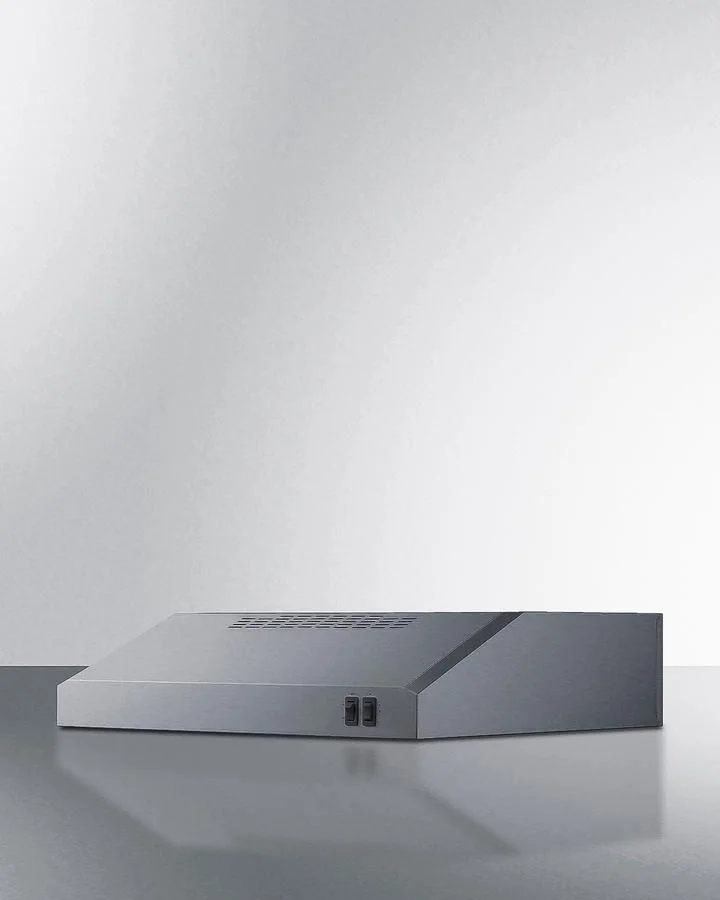

Low profile design offers classic style to finish your kitchen
Sized for use over 20 inch cooking surfaces (additional sizes available)
Can be used for ducted venting to the outside or recirculating ventilation where no external venting is possible
Real stainless steel with a horizontal grain for a clean, professional look
Ships pre-set for recirculating mode but can be converted in a few simple steps
Can operate at 270 CFM to ensure thorough ventilation of your cooking surface
High and low setting to allow proper ventilation of your kitchen as needed
Designed to hold a standard incandescent light bulb with easy installation and no tools required
Aluminum filter includes charcoal filler to absorb smoke, grease, and odors for a cleaner kitchen experience
Snap-in design allows you to easily remove the filter for fast replacing as needed
Front-located on/off and high/low switches make it easy to manage the light and fan
Designed to be hard-wired by a licensed professional
TAA compliant
