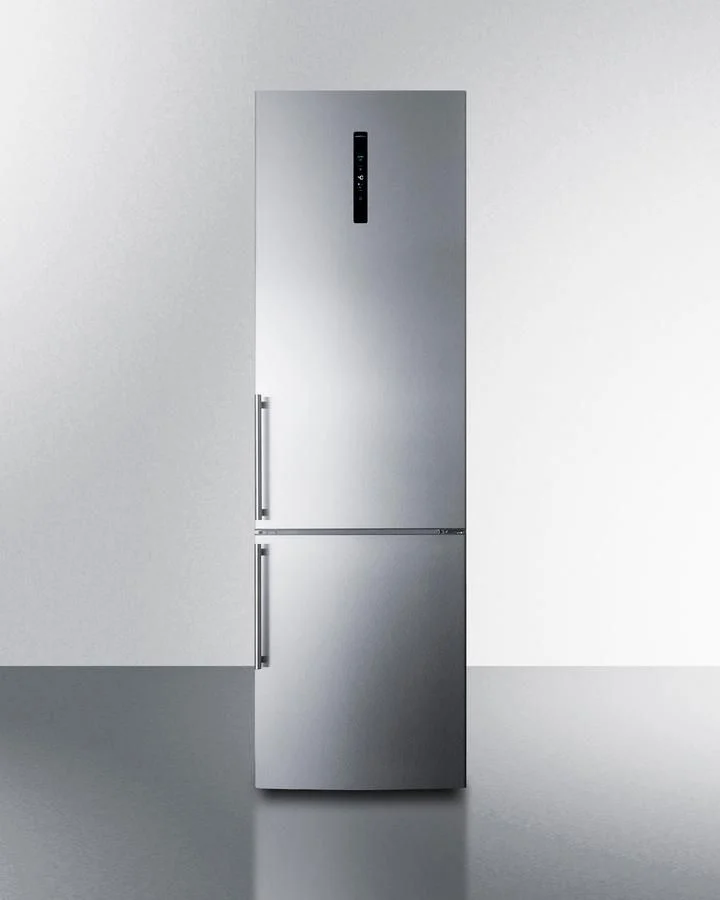

Summit 23" Freestanding Bottom Freezer Refrigerator, 11.7 cu. ft. Capacity

Nominal Height

78.0" (198 cm)

Height of Cabinet

77.88" (198 cm)

Height to Hinge Cap

78.38" (199 cm)

Nominal Width

24.0" (61 cm)

Width

23.38" (59 cm)

Nominal Depth

24.0" (61 cm)

Depth

23.75" (60 cm)

Depth with Handle

25.0" (64 cm)

Depth with door at 90(degree)

45.38" (115 cm)

Capacity

11.7 cu.ft. (331 L)

Defrost Type

Frost-Free/Automatic

Door

Stainless Steel

Cabinet

Platinum

US Electrical Safety

UL

Canadian Electrical Safety

ULC

Energy Usage/Year

380.0kWh/year

Amps

0.6

Voltage/Frequency

115 V AC/60 Hz

Weight

185.0 lbs. (84 kg)

Parts & Labor Warranty

1 Year

Compressor Warranty

5 Years

UPC

761101078755

Door Swing

RHD

Reversible

Factory Reversible

Adjustable Shelves

Yes

Interior Drawers

Yes

Drawer Qty

5

Crisper Qty

2

Crisper Finish

Transparent

Crisper Cover

Glass

Wine Bottle Shelving

Yes

Interior Light

Yes

Refrigerator - Interior Height

41.63" (106 cm)

Refrigerator - Interior Width

19.63" (50 cm)

Refrigerator - Interior Depth

17.63" (45 cm)

Refrigerator - Capacity

8.31 cu.ft

Refrigerator - Shelf Type

Glass and Scalloped

Refrigerator - Shelf Qty

4

Refrigerator - Full Door Shelves

4

Refrigerator - Temperature Range

34 to 46 F

Freezer - Interior Height

27.0" (69 cm)

Freezer - Interior Width

17.25" (44 cm)

Freezer - Interior Depth

14.63" (37 cm)

Freezer - Capacity

3.41 cu.ft

Thermostat Type

Digital

Fan Type

Interior

Refrigerant Type

R600a

Refrigerant Amount

1.13 oz.

Level Legs

2

Condensor Location

Rear of Unit

Freezer - Temperature Range

-6 to 6 F

Compressor Step Height

10.5" (27 cm)

Compressor Step Width

17.25" (44 cm)

Compressor Step Depth

5.38" (14 cm)

Sound Level

32.6 dB

GTIN

00761101078755

EAN

0761101078755

UPC

761101078755

Rated by the DOE to perform with more efficiency than federal standards require, saving your unit energy and you on higher utility costs

Professional look in real stainless steel construction with a vertical grain and gentle curve on the doors

Separate digital controls let you adjust the refrigerator and freezer sections without opening the door

Innovative sensor technology allows the unit to adjust to your habits, reading your patterns to manage the temperature based on the frequency of door openings and grocery loading

Spill-proof safety glass with attractive steel trim ensure durable and easy-to-clean storage that can be rearranged as needed

Four door racks can be adjusted in height to accommodate a variety of sizes

Adjustable scalloped steel rack lets you store wine or other bottles in a space-saving horizontal position

Large crisper drawer allows you to ensure the optimum storage of fruits and vegetables

Slide-out drawer allows you to store meats and other deli items at a slightly colder temperature, or convert to a second crisper using the easy slide control

Automatically illuminates when you open the door

Unique freezer design keeps the cold inside, even when the door is opened

Audible and visual alarm will alert if the doors have been left ajar for over 2 minutes

Audible and visual alarms will alert if the temperature in the refrigerator or freezer compartment is too high

All alarms are both audible and visual, with lamps in the control panel that will illuminate when the alarm is sounded

Frost-free freezer section and automatic defrost refrigerator offer low maintenance operation

Advanced internal fan system helps to ensure even temperature distribution throughout the refrigerator interior

Allows you to rapidly cool the freezer section, ideal for bringing newly loaded groceries to a safer storage temperature

Allows you to run the unit at its most efficient settings

Temperature controls include a locking function to prevent accidental setting changes

32.6 dB for a quiet performance in your kitchen

Space-saving design with no exposed coils for easier cleanability

Unit ships RHD unless ordered reversed in our factory. The doors are not user-reversible

Environmentally friendly design without ozone-damaging chemicals

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
