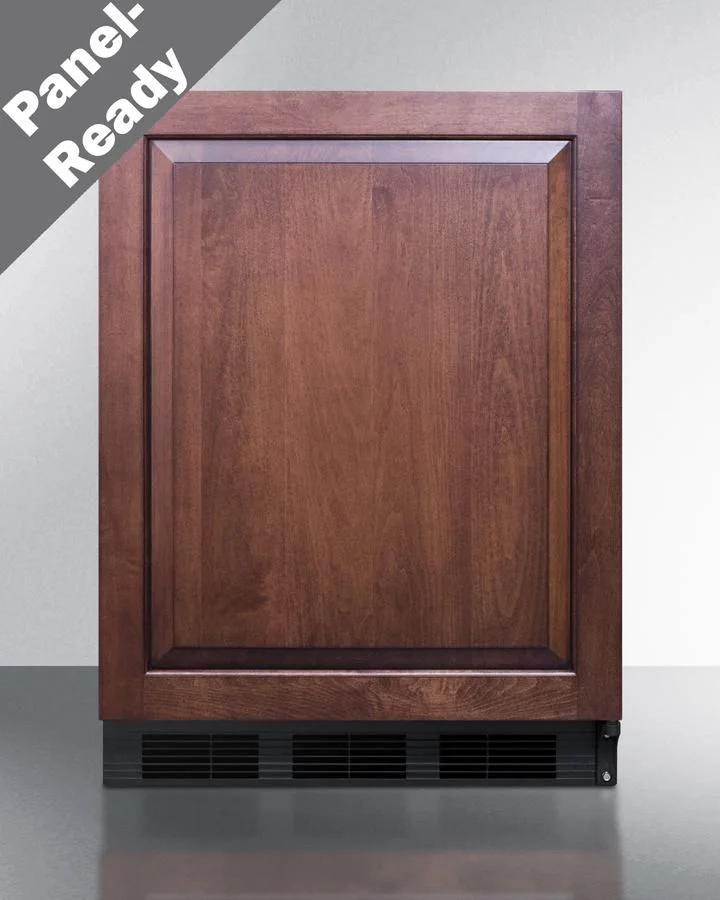

Summit 24" Built-In Compact Refrigerator, 5.5 cu. ft. Capacity

Nominal Height

32.0" (81 cm)

Height of Cabinet

32.0" (81 cm)

Height to Hinge Cap

32.25" (82 cm)

Nominal Width

24.0" (61 cm)

Width

23.63" (60 cm)

Nominal Depth

23.0" (58 cm)

Depth

23.0" (58 cm)

Depth with door at 90(degree)

45.38" (115 cm)

Capacity

5.5 cu.ft. (156 L)

Defrost Type

Automatic

Door

Panel-Ready

Cabinet

Black

US Electrical Safety

ETL

Canadian Electrical Safety

ETL-C

Sanitation

ETL-S

Energy Usage/Year

307.0kWh/year

Amps

1.4

Voltage/Frequency

115 V AC/60 Hz

Weight

100.0 lbs. (45 kg)

Parts & Labor Warranty

1 Year

Compressor Warranty

5 Years

UPC

761101069357

Door Swing

RHD

Reversible

Factory Reversible

Crisper Qty

1

Crisper Finish

Opaque

Crisper Cover

Glass

Shelf Type

Glass

Shelf Qty

3

Full Door Shelf Qty

3

Adjustable Shelves

Yes

Wine Bottle Shelves

Yes

Thermostat Type

Dial

Fan Type

Exterior

Refrigerant Type

R600a

Refrigerant Amount

0.64oz.

High Side PSI

180.0

Low Side PSI

80.0

Interior Light

Yes

Interior Height

26.25" (67 cm)

Interior Width

21.0" (53 cm)

Interior Depth

18.0" (46 cm)

Compressor Step Height

5.5" (14 cm)

Compressor Step Width

21.0" (53 cm)

Compressor Step Depth

6.0" (15 cm)

GTIN

00761101069357

EAN

0761101069357

UPC

761101069357

Front-breathing design lets you make the best use of space by installing your appliance under the counter

Reduced maintenance with auto defrost system

Rearrange the refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up

Store tall bottles and condiments right on the door for convenient access

Removable scalloped wine shelf is included to store champagne and wine bottles

Get the longest life and best taste out of produce by storing greens in a convenient slide drawer

Cold wall design with hidden evaporator creates a seamless, easy to clean interior

Automatically illuminates when you open the door

Dial thermostat located inside for easy temperature management

Allows the unit to be used freestanding

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Environmentally friendly design without ozone-damaging chemicals

32" height to fit under lower ADA compliant counters

Ideal 24" footprint offers full 5.5 cu.ft. storage capacity in a slim fit

Integrated stainless steel door frame allows you to mount full overlay panels over the door to create a custom look that can blend into cabinetry with no exposed frame (panel size: 23 5/16" W x 28 1/4" H and at least 3/4" thick; maximum weight: 10 lbs.)

Easy clean-up with a seamless liner that won't hold a mess in hidden crevices
