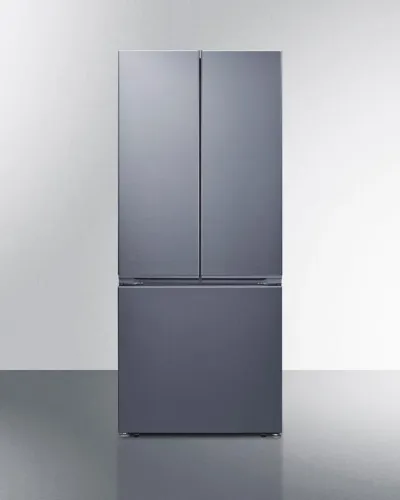

Summit 30" Freestanding French Door Bottom Freezer Refrigerator, 16.1 cu. ft. Capacity in Stainless Steel

Name: Summit FDRD175SSIM 30" Freestanding French Door Bottom Freezer Refrigerator, 16.1 cu. ft. Capacity
Brand: Summit
SKU: FDRD175SSIM
Availability: InStock

SKU: FDRD175SSIM

0 Questions & 0 Answers

Type: Freestanding
Style: French Door/Bottom Freezer
Width: 29.88"
Height: 69.50"
Depth: 27.75"
Energy Star Rated: no
Wi-Fi Connected: No
Sabbath Mode: Yes
ADA Compliant: No
Total Capacity: 16.10 cu. ft.
Defrost: Frost-Free
Icemaker: Yes
Dispenser: No
Counter Depth: Yes
Refrigerator Capacity: 10.89 cu. ft.
Freezer Capacity: 5.22 cu. ft.
Number of Shelves: 6

Summit |Authorized Dealer

Pre-Order

Call to Get a Quote

PRODUCT DESCRIPTION

Summit's fully-featured, bottom-mount refrigerator-freezers are specially designed to bring modern style and true convenience to any kitchen. The ENERGY STAR certified counter depth FDRD175SSIM is conveniently sized at 30" wide. Stainless steel French doors feature an attractive horizontal grain, with a smooth silver cabinet for a stylish, modern look in any kitchen. The sealed back offers added space savings and easier cleanup. Inside, the FDRD175SSIM boasts a generous 16.1 cu.ft of storage space to meet the storage needs of any family, no matter their size. The rear wall is finished in stainless steel for added durability. This model utilizes frost-free operation for low user maintenance. The interior includes three adjustable glass shelves, two half-width produce crisper drawers, and a full-width deli drawer for easy storage of meats and cheeses. The doors include four removable half shelves and two full gallon shelves to safely store bottles and other condiments. An innovative digital system lets you manage the refrigerator and freezer temperature with an intuitive digital thermostat. LED lighting in the side walls of the refrigerator offers an efficient and attractive view inside. The open door alarm alerts with an audio and visual signal when the door is left ajar for over one minute. This unit is equipped with an optional sabbath mode feature that allows you to deactivate certain electrical features for up to 72 hours. The FDRD175SSIM's large drawer freezer section features two interior slide-out drawers for ample storage and easy user access. The top drawer includes a factory-installed icemaker on the left side to ensure a steady supply of cubes. The deep lower drawer offers plenty of room to stack leftovers, ice cream, and other frozen goods. This unit includes a QuickFreeze setting to run the freezer at colder temperatures, ideal for freezing newly loaded groceries. With its ENERGY STAR certified performance, attractive design, and convenient features, the FDRD175SSIM is the ideal choice for kitchens looking for an energy-efficient, user-friendly refrigerator-freezer. For this unit with standard swing doors, see model FFBF174SSIM.

Specifications

Height of Cabinet

69.5" (177 cm)

Width

29.88" (76 cm)

Width with Door Open

30.88" (78 cm)

Depth

27.75" (70 cm)

Depth with door at 90(degree)

47.0" (119 cm)

Capacity

16.1 cu.ft. (456 L)

Defrost Type

Frost-Free

Door

Stainless Steel

Cabinet

Silver

US Electrical Safety

Canadian Electrical Safety

ULC

Energy Usage/Year

525.0kWh/year

Amps

2.0

Voltage/Frequency

115 V AC/60 Hz

Parts & Labor Warranty

1 Year

Compressor Warranty

5 Years

UPC

761101151595

Weight

218.0 lbs. (99 kg)

Door Swing

French

Adjustable Shelves

Yes

Interior Drawers

Yes

Drawer Qty

Crisper Qty

Crisper Finish

Transparent

Crisper Cover

Glass

Interior Light

Yes

Refrigerator - Interior Height

37.75" (96 cm)

Refrigerator - Interior Width

25.25" (64 cm)

Refrigerator - Interior Depth

20.25" (51 cm)

Refrigerator - Capacity

10.89 cu.ft

Refrigerator - Shelf Type

Glass

Refrigerator - Shelf Qty

Refrigerator - Full Door Shelves

Refrigerator - Half Door Shelves

Refrigerator - Temperature Range

33 to 46 F

Freezer - Interior Height

22.0" (56 cm)

Freezer - Interior Width

24.25" (62 cm)

Freezer - Interior Depth

18.5" (47 cm)

Freezer - Capacity

5.22 cu.ft

Gallon Door Storage

Yes

Thermostat Type

Digital

Fan Type

Interior

Refrigerant Type

R600a

Refrigerant Amount

2.12 oz.

Freezer - Temperature Range

-11 to 0 F

Sabbath Mode

Yes

Sound Level

32.7 dB

GTIN

00761101151595

EAN

0761101151595

UPC

761101151595

Full-sized 16.1 cu.ft. French door refrigerator-freezer with a spacious interior to add modern style and true convenience to any kitchen space

Cabinet measures 24 1/2" deep for an ideal fit, with the overall depth with doors measuring 27 3/4"

Rated by the DOE to perform with more efficiency than federal standards require, saving your unit energy and you on higher utility costs

Convenient design keeps all refrigerated storage at eye level for easier use

Freezer section is equipped with a pre-installed icemaker that keeps a steady supply of ice

Easy freezer access and ample storage with a tall lower drawer and slide-out top drawer

ETL/ETL-C and NRCAN registered for use in Canada

16.1 cu.ft. interior offers generous storage space

Stainless steel doors with a horizontal grain offer a professional look for any kitchen

No-frost convenience requires no manual defrosting

Innovative control panel located inside the refrigerator makes it easy to manage the refrigerator and freezer temperature at the touch of a button

Designed with enhanced cool air circulation to help preserve the freshness of deli items, including meats and cheeses

Get the longest life and best taste out of produce by storing it in two convenient slide drawers

Two deep racks accept full gallon-sized containers

Rearrange your refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up

Four door racks can be adjusted in height to accommodate a variety of sizes

Audible and visual alarm will alert if the doors have been left ajar for over 2 minutes

Energy efficient lighting located inside the walls to provide a better view of the interior

This setting is ideal for freezing fresh foods quickly. Function overrides current thermostat controls to ensure compressor operates continuously

This unit is equipped with an optional sabbath mode feature that allows you to deactivate certain electrical features for up to 72 hours

Space-saving design with no exposed coils in the rear offers easy cleanability

Variable compressor ensures a quiet performance measured at just 32.7 dB

Environmentally friendly design without ozone-damaging chemicals

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Complies with California Health and Safety Code 116876 lead leaching requirements per NSF NSF/ANSI/CAN 61-2022 standard, as well as with lead content requirements for lead free plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act Section 1417(d) per NSF/ANSI/CAN 372-2022 standard
