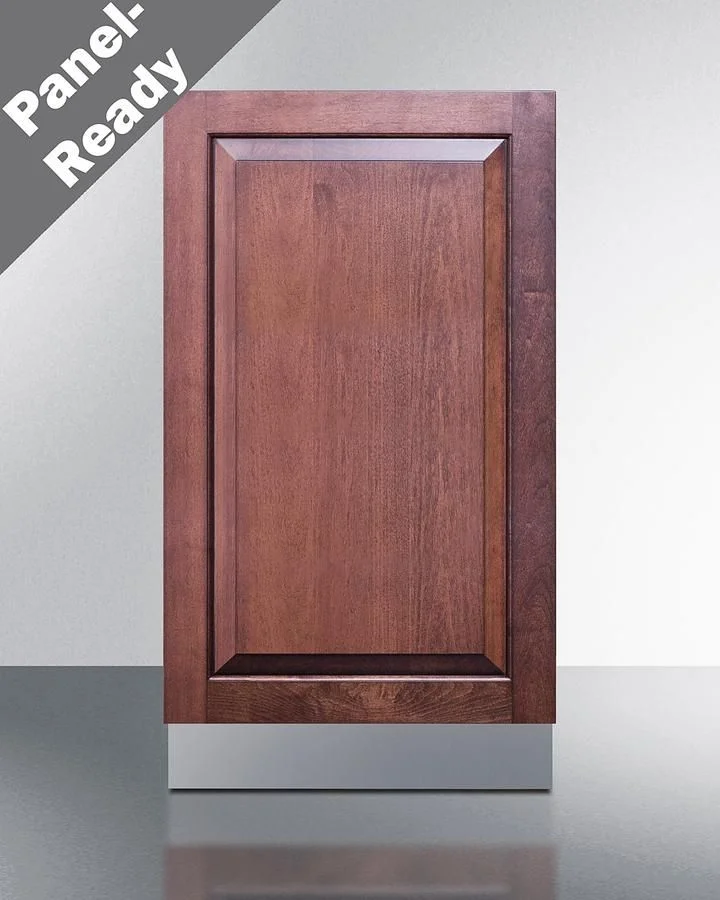

Summit 18" Fully Integrated Built-In Dishwasher, 8 Place Setting Capacity in Panel Ready

SKU: DW186NTADA
  • Width: 17.50"
  • Height: 32.25"
  • Depth: 24.25"
  • Energy Star Rated: yes
  • Wi-Fi Connected: No
  • Sabbath Mode: No
  • ADA Compliant: Yes
  • Stainless Steel Tub: Yes
  • Fully Integrated Controls: Yes
  • Tall Tub: No
  • Decibel Level: 47.0 db
  • Cycles Count: 8
  • Style: Fully Integrated/Panel Ready
Summit | Authorized Dealer
Pre-Order

Estimates for:

Protect Your Item

$1,220.00
EARN 1,220 POINTS (sign in / sign up for free)

Protect Your Item

PRODUCT DESCRIPTION

Summit's European dishwashers offer true efficiency for the home, with ultra quiet operation. Model DW186NTADA is an 18" wide dishwasher sized at 32.25" high for an easy fit under lower ADA compliant counters. The leveling legs allow you to raise the height up to 34". We include an extra kickplate that covers the front for a cleaner look and to help prevent dirt from going under the unit. This is a fully integrated dishwasher with an unfinished door designed to accept user-provided panels to create a seamless look that blends into your cabinetry. Users also provide their own handle. The control panel is located on top of the door to help ensure a seamless look with your kitchen. Advanced sound absorption ensures a quiet performance at just 47 dB. This unit offers eight wash programs to accommodate all of your cleaning needs, from an "intensive plus" setting for tough stains to a delicate function to safely handle fragile items. Five auxiliary functions let you further customize the wash and dry settings, with options that include sanitize, extra fast, extra dry, high temperature, and half load for added efficiency. The control panel features easy touch buttons and a digital display for intuitive operation. Additional features include a pause function, 19-hour delay start option, and indicators for rinse aid, water cutoff, and overflow. Inside, the DW186NTADA features stainless steel construction for true durability. Two spray arms help to ensure your full load is thoroughly washed. The upper slide-out rack can be set in two positions, allowing you to adjust the setup if washing particularly tall items. Side flaps can be used to stack smaller cups, keep glasses in place, or hold long utensils. The lower rack includes two fold-down tines that let you better accommodate oversized pots as needed. We include a removable cutlery basket to make it easier to load and unload silverware. In addition to this dishwasher, Summit offers a stainless steel version (model DW185SSADA) as well as additional styles with front controls. Browse the full line to explore our assortment.

Specifications

Nominal Height

32.0" (81 cm)

Height of Cabinet

32.25" (82 cm)

Nominal Width

18.0" (46 cm)

Width

17.5" (44 cm)

Nominal Depth

23.0" (58 cm)

Depth

22.5" (57 cm)

Depth with Handle

24.25" (62 cm)

Depth with door at 90(degree)

45.5" (116 cm)

Dishwasher

Standard

Door

Panel-Ready

Cabinet

Stainless Look

US Electrical Safety

UL

Canadian Electrical Safety

ULC

Energy Usage/Year

234.0kWh/year

Amps

12.0

Voltage/Frequency

115 V AC/60 Hz

Weight

95.0 lbs. (43 kg)

Parts & Labor Warranty

1 Year

UPC

761101089386

Number of Cycles

8

Number of Racks

2

Rack Material

Wire

Silverware Basket

Yes

Delayed Start

Yes

China Setting

Yes

Interior Finish

Stainless Steel

Interior Height

24.75" (63 cm)

Interior Width

15.25" (39 cm)

Interior Depth

20.0" (51 cm)

Decibel Rating

47.0 dBA

Number of Options

8

Leveling Legs

Yes

Place Settings

8

GTIN

00761101089386

EAN

0761101089386

UPC

761101089386

Slim fit with full dishwashing capability for a great addition to any small kitchen

Uses less energy and water than national standards require to ensure more efficiency and lower utility bills

Advanced sound absorbing construction operates at 47 dB

Intuitive button controls with a digital display to ensure you select the proper cycle

Touch controls are located on the top of the door, providing a cleaner look to better integrate into your kitchen

Unfinished door is designed to accept your own panel and handle, creating a seamless look to blend into your kitchen cabinetry

Durable interior ensures long-lasting use

Two easy-gliding racks for easy loading and long-lasting durability

The upper rack can be repositioned to help accommodate taller items

Top rack includes side pieces that help to keep tall glasses safely in place, or alternatively, allow you to maximize capacity by stacking smaller cups or holding longer items

Lower rack includes two tines that can be folded down to make room for larger items, or raised to hold dishes in place

Convenient basket makes it easy to arrange your silverware, and is also removable to open up more space if washing larger pots or pans

Improved design to ensure both racks are properly cleaned

Combine additional functions with your wash programs, including Sanitize, Extra Fast, Extra Dry, Hi-Temp, and Half Load

Can be combined with any wash program to operate more efficiently for smaller loads of dishes

Increases the water temperature in the final rinse for a cleaner wash

Conveniently located inside towards the top of the door, with a push button release for easy loading

Unit will self-adjust to the detergent type for optimum performance

Allows you to program a wash cycle for up to 19 hours in advance

Display screen will show when softening rinse aid needs to be adjusted

Washing will stop if the machine detects an issue with the water supply or inlet tap

Alert will flash if the dishwasher is taking in too much water or sensing a leak

If food particles build up in the bottom filter, it can easily be removed and emptied as needed

Includes a pre-installed power cord with 3-pronged plug

32.25" high to fit under lower counters following ADA guidelines

Settings include Regular, Auto, Intensive, Intensive Plus, Daily, Delicate, Super, & Rinse

Includes three leveling legs that let you raise the unit to a standard 34" counter height, with an taller kickplate included to cover extra space
