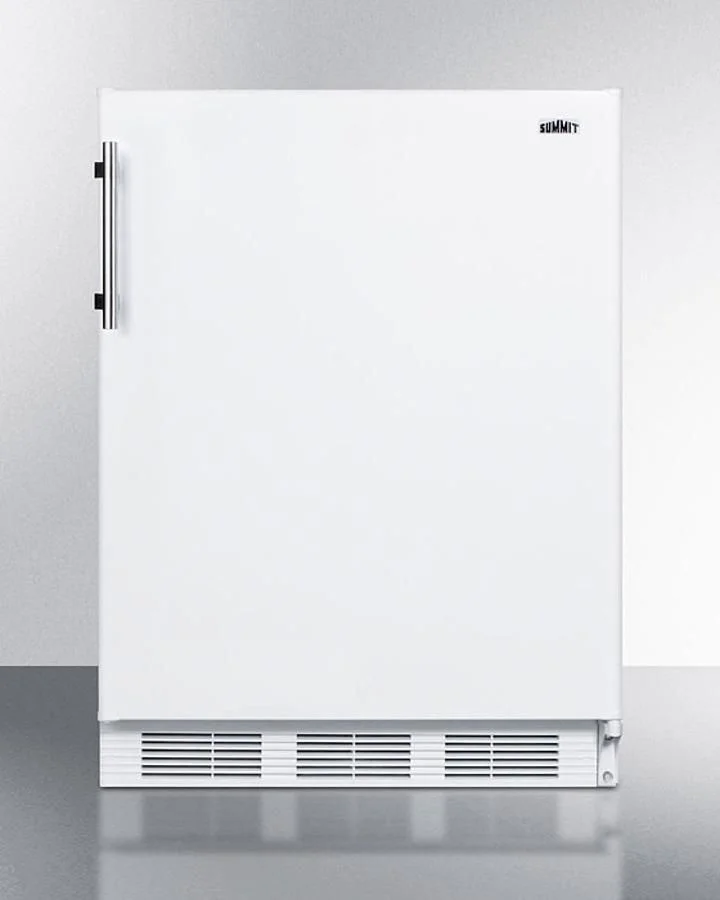

Summit 24" Built-In Undercounter Refrigerator, 5.1 cu. ft. Capacity

Nominal Height

33.0" (84 cm)

Height of Cabinet

32.63" (83 cm)

Nominal Width

24.0" (61 cm)

Width

23.63" (60 cm)

Nominal Depth

23.0" (58 cm)

Depth

23.0" (58 cm)

Depth with Handle

24.63" (63 cm)

Depth with door at 90(degree)

45.38" (115 cm)

Capacity

5.04 cu.ft. (143 L)

Defrost Type

Cycle

Door

White

Cabinet

White

US Electrical Safety

UL

Canadian Electrical Safety

ULC

Energy Usage/Year

330.0kWh/year

Amps

1.2

Voltage/Frequency

115 V AC/60 Hz

Weight

100.0 lbs. (45 kg)

Parts & Labor Warranty

1 Year

Compressor Warranty

5 Years

UPC

761101067490

Door Swing

RHD

Reversible

Yes

Adjustable Shelves

Yes

Crisper Qty

1

Crisper Finish

Transparent

Crisper Cover

Glass

Wine Bottle Shelving

Yes

Interior Light

Yes

Refrigerator - Interior Height

18.0" (46 cm)

Refrigerator - Interior Width

21.0" (53 cm)

Refrigerator - Interior Depth

18.0" (46 cm)

Refrigerator - Capacity

4.5 cu.ft

Refrigerator - Shelf Type

Glass

Refrigerator - Shelf Qty

2

Refrigerator - Full Door Shelves

3

Freezer - Interior Height

5.25" (13 cm)

Freezer - Interior Width

19.0" (48 cm)

Freezer - Interior Depth

11.5" (29 cm)

Freezer - Capacity

0.6 cu.ft

Thermostat Type

Dial

Refrigerant Type

R600a

Refrigerant Amount

0.92 oz.

Level Legs

2

Compressor Step Height

5.5" (14 cm)

Compressor Step Width

21.0" (53 cm)

Compressor Step Depth

6.0" (15 cm)

Sound Level

32.6 dBa

GTIN

00761101067490

EAN

0761101067490

UPC

761101067490

Includes a full refrigerator and freezer section for undercounter use

Rated by the DOE to perform with more efficiency than federal standards require, saving your unit energy and you on higher utility costs

Allows the unit to be used freestanding

This system utilizes user-friendly automatic defrost operation in the fresh food section and efficient manual defrost operation in the freezer compartment

Our unique and efficient design separately cools the refrigerator while maintaining a lower temperature in the freezer compartment by utilizing two evaporators

Rearrange your refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up

Get the longest life and best taste out of produce by storing it in a convenient slide drawer

Store tall bottles and condiments right on the door for convenient access

Removable scalloped wine shelf is included to store champagne and wine bottles

Automatically illuminates when you open the door

Cold wall design with hidden evaporator creates a seamless, easy to clean interior

Dial thermostat located inside for easy temperature management

User-reversible door swing for added flexibility

Environmentally friendly design without ozone-damaging chemicals

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
