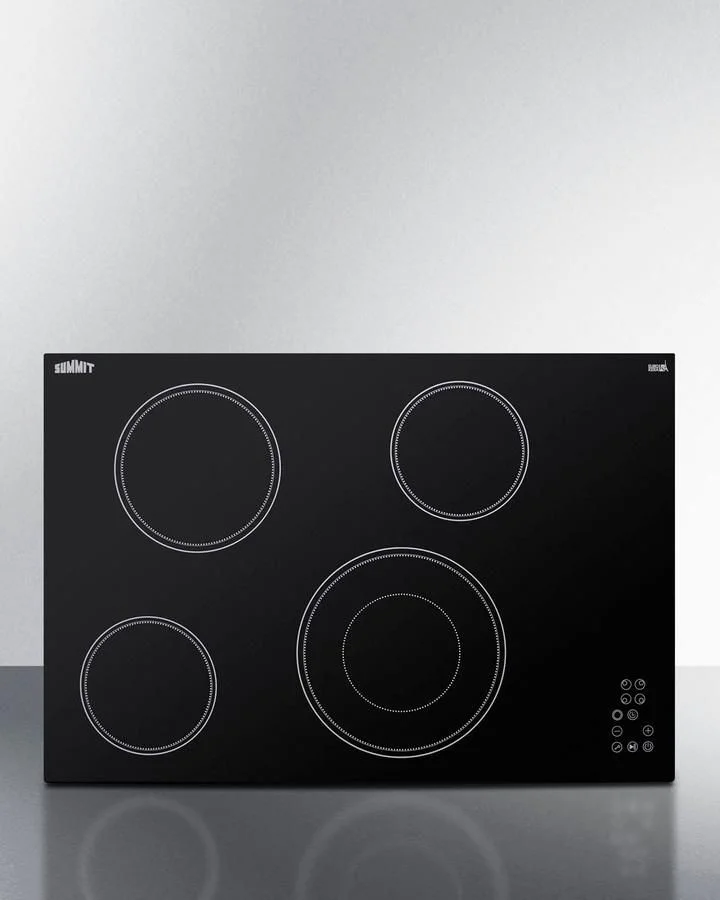

Summit 30" Electric Cooktop, 4 Elements in Black

Nominal Height

2.13" (5 cm)

Height of Cabinet

2.13" (5 cm)

Nominal Width

31.0" (79 cm)

Width

30.25" (77 cm)

Nominal Depth

21.0" (53 cm)

Depth

20.5" (52 cm)

Cabinet

Black

US Electrical Safety

ETL

Canadian Electrical Safety

ETL-C

Amps

25.0

Voltage/Frequency

240 V AC/60 Hz

Weight

28.0 lbs. (13 kg)

Parts & Labor Warranty

1 Year

UPC

761101078793

Heating Type

Radiant

Surface

Glass

Element Type

Glasstop

Number of Elements

4

Controls

Digital

Cooking Timer

Yes

Countertop Cutout Height

3.2" (8 cm)

Countertop Cutout Width

29.5" (75 cm)

Countertop Cutout Depth

19.63" (50 cm)

Element #1 Size

6.5" (17 cm)

Element #1 Wattage

1200.0

Element #2 Size

8.0" (20 cm)

Element #2 Wattage

1800.0

Element #3 Size

6.5" (17 cm)

Element #3 Wattage

1200.0

Element #4 Size

9.75" (25 cm)

Element #4 Wattage

2500.0

Power Cord Included

No

GTIN

00761101078793

EAN

0761101078793

UPC

761101078793

Elegant style on a smooth, jet black glass surface for a contemporary look that is easier to clean

Easy operation with a digital control panel and digital display, located upfront but towards the side to help prevent any unintended adjustments when cooking

Select and adjust your heating levels at the touch of a button

Allows you to program either burner to heat at a specified level for up to 99 minutes and either turn off when finished or display a countdown with an audible alert when the time is up

Indicator shows when the surface is still hot to touch

Upfront controls meet ADA guidelines for easier accessibility

Safety feature lets you lock the cooktop to prevent unsupervised heating

If the cooktop on/off switch is touched but no power level is selected within one minute, the cooktop automatically turns off

If a cooking zone is in use for over two hours with no changes to the control setting, the burner will automatically turn off to prevent unsupervised heating

Requires professional hardwired installation (cord not included)
