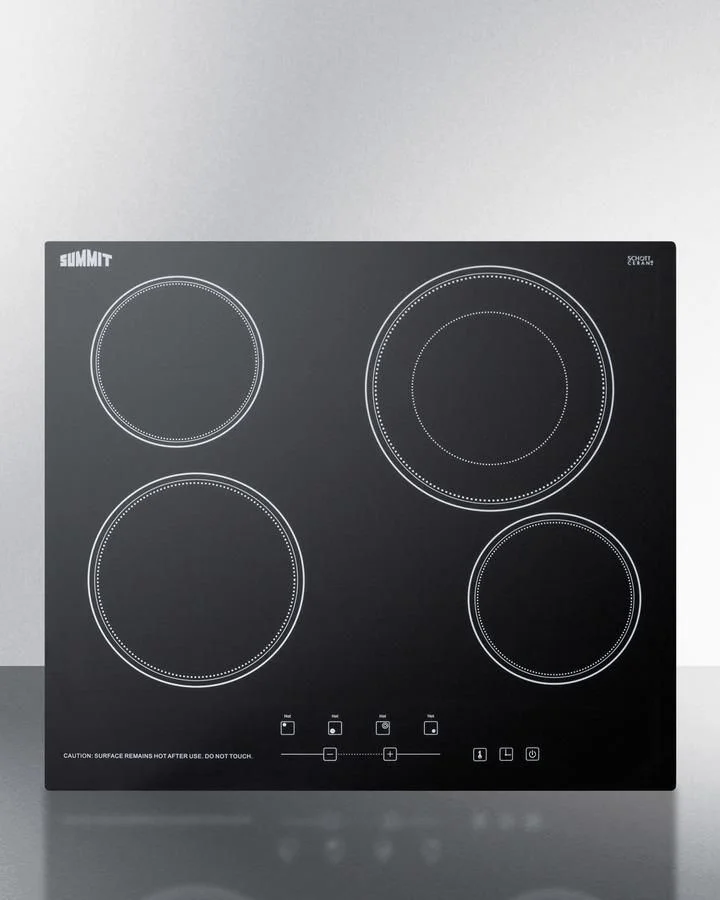

Summit 23" Electric Smoothtop Drop-In Frameless Cooktop in Black

SKU: CR4B23T5B
  • Fuel Type: Electric
  • Width: 23.25"
  • Height: 2.00"
  • Depth: 20.50"
  • Wi-Fi Connected: No
  • Sabbath Mode: No
  • ADA Compliant: Yes
  • Downdraft Ventilation: No
  • Style: Smoothtop
  • Type: Drop-In/Frameless
Summit

Authorized

Dealer

In Stock
$750.00
or
750
Financing loading...
Sign in / Sign up to earn 750 points (
$18.75
)

Estimates for:

Protect Your Item

PRODUCT DESCRIPTION

Summit's collection of smooth-top radiant cooktops offers an easy-to-clean design with modern style built for smaller kitchen spaces. The CR4B23T5B is a 24" wide 230V radiant cooktop designed to fit popular 22" W x 19 1/2" D counter cutouts. Its surface is made of jet black glass for a contemporary look that's easier to clean. This unit does not ship with a power cord and must be hard-wired by a professional. Unlike many other 24" wide cooktops, the CR4B23T5B includes an extra large 2200W 8" element to accommodate large cooking vessels and offer faster heating when boiling water. For added versatility, this dual zone element can also be used at a 5" diameter for smaller pots and pans. The front right and rear left 5 1/2" elements cook at 1200W, while the front left zone is 7" wide with an 1800W operation to handle larger meals. The digital touch controls are located in the front for easier accessibility, preventing users from reaching over hot burners when cooking. The temperature is easy to adjust at the touch of a button, with 9 power levels for each burner. This unit also includes a timer function that lets you program a power level and cook time (up to 99 minutes). The burner turns off automatically when the cooking duration has finished. Safety features include a child lock function, automatic shutoff after two hours, and residual heat indicators for all four elements. With its attractive design, smartly designed burner configuration, and intuitive touch controls, the CR4B23T5B brings a user-friendly cooking performance with reliable safety to small kitchen spaces.

Specifications

overview

Nominal Height
2.0" (5 cm)
Height of Cabinet
2.0" (5 cm)
Nominal Width
24.0" (61 cm)
Width
23.25" (59 cm)
Nominal Depth
21.0" (53 cm)
Depth
20.5" (52 cm)
Cabinet
Black
US Electrical Safety
ETL
Canadian Electrical Safety
ETL-C
Amps
30.0
Voltage/Frequency
230 V AC/60 Hz
Weight
20.0 lbs. (9 kg)
Parts & Labor Warranty
1 Year
UPC
761101053257

electric cooktop

Heating Type
Radiant
Surface
Glass
Element Type
Glasstop
Number of Elements
4
Controls
Digital
Countertop Cutout Height
3.2" (8 cm)
Countertop Cutout Width
22.0" (56 cm)
Countertop Cutout Depth
19.5" (50 cm)
Element #1 Size
5.5" (14 cm)
Element #1 Wattage
1200.0
Element #2 Size
8.1" (21 cm)
Element #2 Wattage
2200.0
Element #3 Size
5.5" (14 cm)
Element #3 Wattage
1200.0
Element #4 Size
7.0" (18 cm)
Element #4 Wattage
1800.0
Power Cord Included
No

GS1

GTIN
00761101053257
EAN
0761101053257
UPC
761101053257
