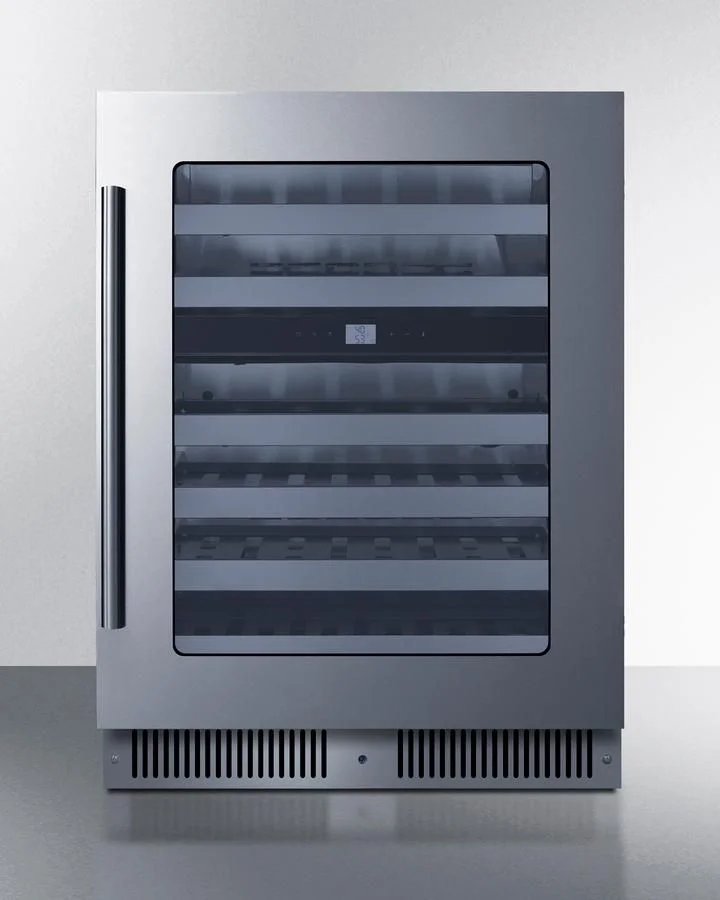

Summit 23" Built-In Dual Zone Wine Cooler

Height of Cabinet

33.75" (86 cm)

Width

23.38" (59 cm)

Depth

22.88" (58 cm)

Depth with Handle

24.63" (63 cm)

Depth with door at 90(degree)

45.63" (116 cm)

Bottles

48 bottles

Defrost Type

Automatic

Door

Glass

Cabinet

Black

US Electrical Safety

ETL

Canadian Electrical Safety

ETL-C

Sanitation

ETL-S

Amps

3.0

Voltage/Frequency

115 V AC/60 Hz

Weight

117.0 lbs. (53 kg)

Parts & Labor Warranty

1 Year

Compressor Warranty

5 Years

UPC

761101145242

Number of Zones

2

Door Swing

RHD

Reversible

Yes

Adjustable Shelves

Yes

Shelf Type

Steel

Shelf Qty

6

Thermostat Type

Digital

Interior Light

Yes

Fan Type

Interior and Exterior

Refrigerant Type

R600a

Refrigerant Amount

1.38 oz.

Interior Height 1

8.5" (22 cm)

Interior Width 1

19.25" (49 cm)

Interior Depth 1

15.0" (38 cm)

Compressor Step Height

3.75" (10 cm)

Compressor Step Width

19.25" (49 cm)

Compressor Step Depth

5.0" (13 cm)

Temperature Range

Upper zone: 41 to 50 F; Lower zone: 50 to 64 F

Interior Height 2

15.5" (39 cm)

Interior Width 2

19.25" (49 cm)

Interior Depth 2

15.0" (38 cm)

Sabbath Mode

Yes

Sound Level

32.4 dB

GTIN

00761101145242

EAN

0761101145242

UPC

761101145242

Premium dual zone built-in undercounter wine cooler for residential and commercial storage

Front-breathing design lets you make the best use of space by installing your appliance under the counter

ETL-S listed to NSF-7 Standards for use in commercial establishments

Attractive glass door provides a complete but protected display of stored contents

Single-piece stainless steel door trim offers a more deluxe look

European style hinge design ensures a flush fit and allows for a smoother opening

Stainless steel look for added elegance

Keyed lock located in the kickplate for added security as needed

Universal collection design allows you to pair this unit with our 24" wide deluxe beverage center, model CL24BV1, or our 15" wide beverage center, model CL156BV1, depending on your need

Upper zone operates between 41 and 50 F for chilled white and sparkling wine storage, while the lower zone can be set between 50 and 64 F to best preserve red wine

Each shelf can hold up to 8 Burgundy or Bordeaux style bottles for an overall 48-bottle capacity to meet your storage needs (NOTE: capacity may vary depending on specific bottle style)

Removable flat steel shelves in a black finish with stainless steel trim for an elegant but modern look

Six shelves on ball-bearing glides glide out smoothly for easier loading and optimum capacity

Shelf design makes it easier to store cans and other styles of beverages

Inverter compressor ensures minimal vibration to uphold and protect the integrity of each bottle

Stainless steel rear wall protects the unit's integrity and is easier to clean

Rotate your presentation style with a choice of blue, white, or amber LED lighting

Easy-to-use digital controls allow for precise temperature settings, which is crucial for maintaining the ideal storage temperature

Temperature readout can be shown in Celsius or Fahrenheit

This function provides consistent temperature and humidity distribution, mimicking a natural wine cellar environment

Reduces vibration disturbances by slowing down and pausing the cooling unit's operation

No-frost operation for minimum user maintenance

Complete luxury down to the toe kick

Bracket (included) helps prevent tipping for added safety

Inverter compressor ensures a whisper quiet operation, measured in our testing facilities at just 32.2 dB

User-reversible door swing for added flexibility to best accommodate your setting

Environmentally friendly design with no ozone-damaging chemicals

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
