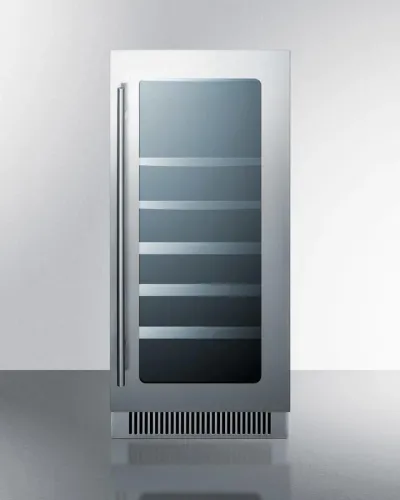

Summit 15" Wide Built-in Wine/beverage Center

Nominal Height

35.0" (89 cm)

Height of Cabinet

34.5" (88 cm)

Nominal Width

15.0" (38 cm)

Width

15.0" (38 cm)

Nominal Depth

24.0" (61 cm)

Depth

23.38" (59 cm)

Depth with Handle

25.0" (64 cm)

Depth with door at 90(degree)

37.25" (95 cm)

Capacity

3.2 cu.ft. (91 L)

Bottles

34 bottles

Defrost Type

Automatic

Door

Glass

Cabinet

Black

US Electrical Safety

ETL

Canadian Electrical Safety

ETL-C

Amps

1.5

Voltage/Frequency

115 V AC/60 Hz

Weight

77.0 lbs. (35 kg)

Parts & Labor Warranty

1 Year

Compressor Warranty

5 Years

UPC

761101056142

Number of Zones

1

Door Swing

RHD

Reversible

Yes

Adjustable Shelves

Yes

Shelf Type

Wire and Wood

Shelf Qty

5

Thermostat Type

Digital

Interior Light

Yes

Fan Type

Interior and Exterior

Refrigerant Type

R600a

Refrigerant Amount

1.06 oz.

High Side PSI

277.0

Low Side PSI

103.0

Interior Height 1

26.0" (66 cm)

Interior Width 1

12.0" (30 cm)

Interior Depth 1

18.0" (46 cm)

Compressor Step Height

4.5" (11 cm)

Compressor Step Width

12.0" (30 cm)

Compressor Step Depth

5.75" (15 cm)

Level Legs

2

Temperature Range

41(degree)F to 64(degree)F

GTIN

00761101056142

EAN

0761101056142

UPC

761101056142

Make the best use of space by installing your appliance under the counter

Allows the unit to be used freestanding

Gently tinted glass provides a full view of stored wine while protecting your collection with energy efficient low-e glass

Glass is framed by seamless 304 grade stainless steel

Electronic controls for precise temperature management

Temperature readout can be shown in Celsius or Fahrenheit

Black wooden shelves feature stainless steel trim for an added touch of elegance

Spill-proof glass shelves make it easy to store and display craft beer bottles and cans

Unique white light offers elegant illumination for the jet black interior

Vertically mounted handle in brushed stainless steel features a sleek 16mm diameter that suits many popular styles of cabinetry

User-reversible door swing allows for more flexibility in placing the unit

Completes the professional look down to the toe kick

Audibly alerts if the interior temperature rises or falls out of the recommended wine storage range

Audible alarm will sound if the door is left ajar

Internal fan ensures the interior is evenly cooled from top to bottom

Reduced maintenance and steady temperature performance

Space saving design with easier cleanability

Lets you disable some of the electrical features to save on energy use

Unit will retain its last settings when power is restored in the event of power loss

Environmentally friendly design with no ozone-damaging chemicals

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
