Summit Turnkey Caldera Kitchen, ADA-compliant

Name: Summit CALDERAWH33I Turnkey Caldera Kitchen, ADA-compliant
Brand: Summit
SKU: CALDERAWH33I
Price: 5340.00 USD
Availability: InStock

SKU: CALDERAWH33I

0 Questions & 0 Answers

Energy Star Rated: no
Defrost: Cycle
Number of Burners: 2

Summit |Authorized Dealer

In Stock

$5,340.00

$133.50

)

Estimates for:

Protect Your Item

2 Year $215.99

3 Year $335.99

4 Year $389.99

5 Year $489.99

Decline

30-Days Free Returns or Exchanges

PRODUCT DESCRIPTION

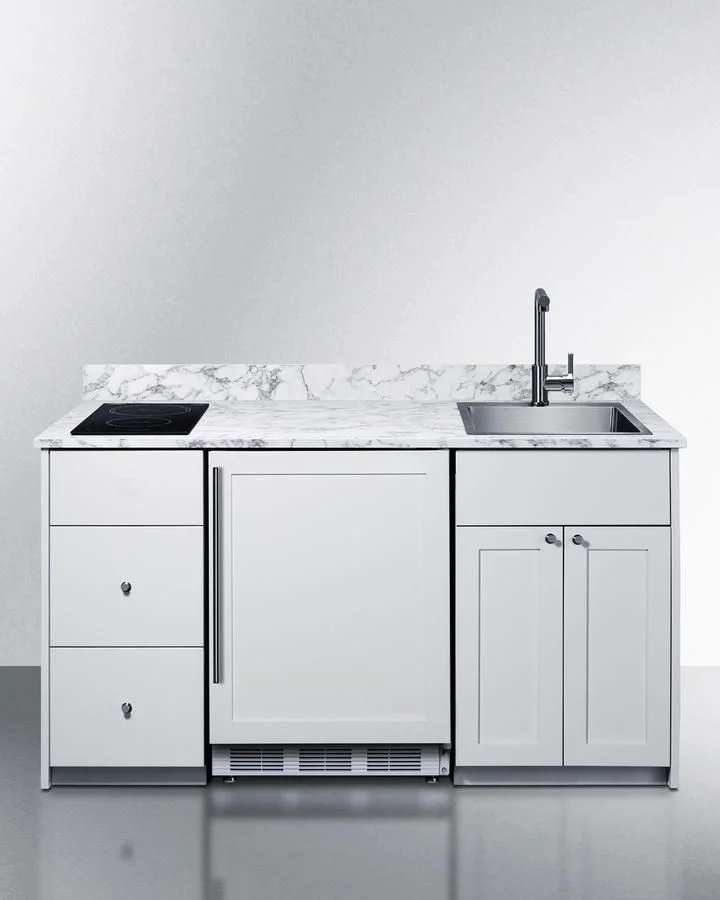

Summit's Turnkey Kitchens & Bars feature pre-installed cabinetry and matching appliances to bring effortless style & instant living to home bars, ADUs, tiny houses, rental properties, office break rooms, and hospitality settings. The Caldera is a 63" wide kitchenette in a classic white finish, sized just under 34" to comply with ADA guidelines for lower counter height. It features hardwood construction and a countertop made from a water-resistant laminate material with a marble look, with a pre-installed 2-burner induction cooktop included. We include a stainless steel sink with faucet and 5 cu.ft. refrigerator-freezer for food storage. For dry storage, this model has a two-door cabinet and two soft-close drawers. We also supply the door knobs in an attractive brushed nickel finish. The cabinetry comes in a classic shaker style. For this unit with the sink located on the left side, see model CALDERAWH33ISINKL. Model CALDERAWH33I includes Summit's CT661WIFADA, a 24" wide ENERGY STAR certified refrigerator-freezer that utilizes automatic defrost operation in the fresh food section and manual defrost operation in the freezer to ensure items stay frozen. Inside, the CT661WIFADA includes adjustable glass shelves for spill-proof storage and easier cleaning, as well as a scalloped wine shelf to hold wine and champagne bottles safely in place. Door racks offer additional convenience for tall bottles and condiments and a clear crisper drawer ensures your produce is kept under the ideal conditions. This model includes automatic interior lighting and an adjustable dial thermostat. The door comes with a pre-installed stainless steel handle and wood panel to seamlessly blend into the cabinet. This kitchenette also features Summit's SINC2B115, an ENERGY STAR certified 12" wide 2-zone induction cooktop. The pre-installed cord includes a 3-prong NEMA 5-15P plug for fast setup. The surface is made of jet black glass for a contemporary look that's easier to clean. The rear 1800W element is sized at 8 1/4", while the front element is 1/4" wide and 1300W . POWER NOTE: Due to the 115V operation, a power management function limits the overall output to 1800W. The CALDERAWH33I is shipped in two boxes on one pallet. Setup involves unpacking the unit and setting into place. A professional can install the sink and connect your plumbing. Then slide the refrigerator into the cabinetry, plug into a standard 115V outlet, plug the cooktop into a separate outlet, and enjoy your new kitchen. We recommend your installation team watches the unboxing video before setup (summitappliance.com/turnkey-installation). Overall shipping dimensions are 73" H x 77" W x 31" D. Cabinetry's packaged dimensions (with refrigerator removed) is 40" H x 67.5" W x 29.5" D. Unpackaged, the final product dimensions are 33.75" H x 62.5" W x 25.5" D. With its classic design, ADA-compliant height, and easy plug-and-play setup, the CALDERAWH33I is the perfect solution to complete any home bar or hospitality space. For this unit in a midnight navy finish, see model CALDERAMN33I. For this unit in a standard 36" counter height, see model CALDERAWH35I. Summit s Turnkey collection also features fully assembled dry bars and wet bars designed for easy and elegant beverage service. Explore the entire Turnkey Kitchens & Bars collection at summitappliance.com

Specifications

Height of Cabinet

33.75" (86 cm)

Width

62.5" (159 cm)

Depth

25.75" (65 cm)

Depth with door at 90(degree)

47.88" (122 cm)

Defrost Type

Cycle

Door

Glass

Cabinet

White

US Electrical Safety

ETL

Canadian Electrical Safety

ETL-C

Amps

16.2

Voltage/Frequency

115 V AC/60 Hz

Weight

355.0 lbs. (161 kg)

Parts & Labor Warranty

1 Year

Compressor Warranty

5 Years

UPC

761101153858

Refrigerator Included

CT661WIFADA

Refrigerator Door Swing

RHD

Reversible

Adjustable Shelves

Yes

Shelf Type

Glass and Scalloped

Shelf Qty

Crisper Qty

Crisper Finish

Transparent

Crisper Cover

Glass

Full Door Shelves

Wine Bottle Shelving

Yes

Thermostat Type

Dial

Interior Light

Yes

Refrigerant Type

R600a

Refrigerant Amount

0.92 oz.

High Side PSI

180.0

Low Side PSI

80.0

Cooking Type

Induction

Number of Burners

Cooktop Controls

Digital

Sink Height

7.0" (18 cm)

Sink Width

16.0" (41 cm)

Sink Depth

17.63" (45 cm)

GTIN

00761101153858

EAN

0761101153858

UPC

761101153858

The Caldera Kitchen series includes sleek, functional, and fully assembled kitchenettes, featuring a European refrigerator-freezer, a 115V powered induction cooktop, and a stainless steel sink complete with a faucet

Shaker-style cabinetry with laminate countertop ships in one piece

Set your cabinet in place, have a plumber install and connect your sink, and slide in the refrigerator to create your very own one-piece kitchenette

Countertop is just under 34" high to comply with ADA guidelines

Hardwood cabinetry for lasting durability

This unit's shaker-style cabinetry comes in a classic white finish to elevate the aesthetic of any space

Swivel gooseneck faucet in brushed nickel with 17.63" L x 16" W x 7" D sink in18 gauge stainless steel equipped with SoundSHIELD technology to reduce noise

Solid laminate countertop in a marble look

Includes a 2-door cabinet under the sink, with a removable shelf for flexible storage

Two hardwood storage drawers with soft-close glides are perfect for holding menus, kitchen accessories, and other needed extras

Cabinet and drawer knobs in brushed nickel finish packaged inside for easy installation

Both appliances are rated by the DOE to perform with more efficiency than federal standards require, saving your unit energy and you on higher utility costs

This unit includes model CT661WIFADA, a 24" wide cycle-defrost refrigerator-freezer

Refrigerator-freezer comes with a pre-installed wood panel and stainless steel handle for an uninterrupted cabinetry design

This system utilizes user-friendly automatic defrost operation in the fresh food section and efficient manual defrost operation in the freezer compartment

Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup

Dial thermostat located inside for easy temperature management

Automatically illuminates when you open the door

This unit includes model SINC2B115, a 12" wide 2-zone induction cooktop

Cooktop includes a pre-installed 3-prong NEMA 5-15 plug for standard 115V wall outlets

Electromagnetic heating technology where heat is generated inside your cookware, ensuring a more efficient process with less energy waste, faster heating, and a safer cooking experience

Two cooking elements sized at 6 1/4" and 8 1/4" covers most general cooking needs

If the cooktop on/off switch is touched but no power level is selected within one minute, the cooktop automatically turns off

Indicator shows when the surface is still hot to touch

Matching backguard is packaged with the unit for optional use

Browse the CABWH lineup to complete your setup

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Environmentally friendly design with no ozone-damaging chemicals

Cabinetry and refrigerator are individually boxed and packaged together on one pallet for one-piece shipping. Once received, follow the written or video instructions to safely unpack. Overall shipping dimensions are 73" H x 77" W x 31" D. Cabinetry's packaged dimensions (with refrigerator removed) is 40" H x 67.5" W x 29.5" D.
