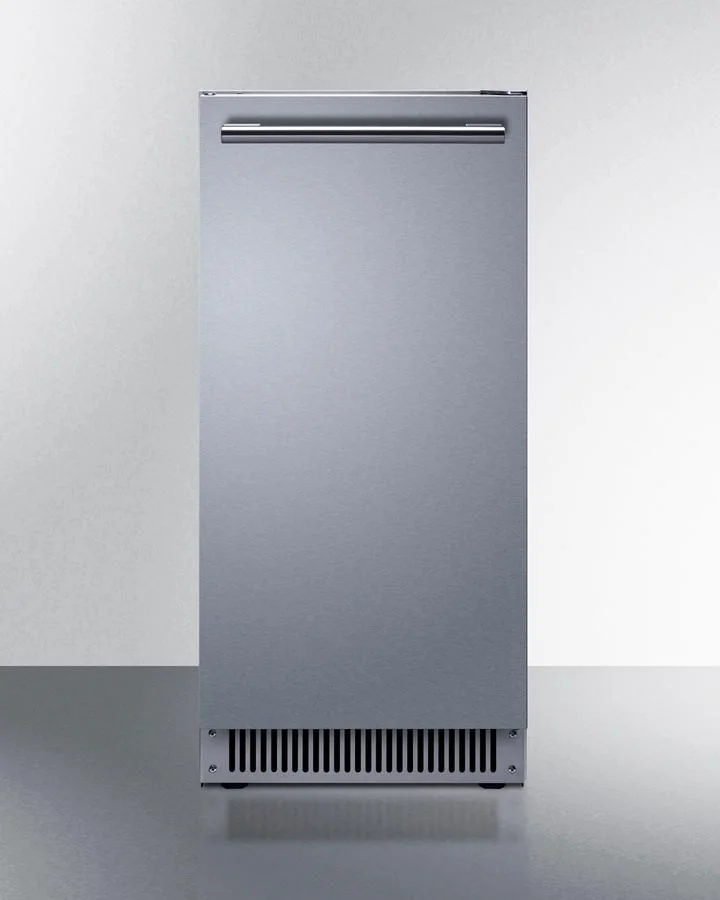

Summit 68 Lb. Outdoor Clear Icemaker, ADA Compliant

Height of Cabinet

32.0" (81 cm)

Width

14.75" (37 cm)

Depth

22.75" (58 cm)

Depth with Handle

24.75" (63 cm)

Depth with door at 90(degree)

38.13" (97 cm)

Defrost Type

Automatic

Door

Stainless Steel

Cabinet

Stainless Steel

US Electrical Safety

ETL

Canadian Electrical Safety

ETL-C

Sanitation

ETL-S

Amps

6.0

Voltage/Frequency

115 V AC/60 Hz

Weight

100.0 lbs. (45 kg)

Parts & Labor Warranty

1 Year

Compressor Warranty

5 Years

UPC

761101156231

Door Swing

LHD

Reversible

No

Height Adjustable

Yes

Drain Required

Yes

Daily Ice Production

68.0 lbs. (31 kg)

Ice Storage Capacity

26.0 lbs. (12 kg)

Ice Shape

Top hat

Size of Cube

1 1/4" H x 1 1/8" W x 1 1/8" D

Number of Ice Cube Sizes

3

Refrigerant Type

R600a

Refrigerant Amount

1.58 oz.

Interior Height

19.75" (50 cm)

Interior Width

12.25" (31 cm)

Interior Depth

15.5" (39 cm)

Level Legs

4

GTIN

00761101156231

EAN

0761101156231

UPC

761101156231

Built-in undercounter outdoor icemaker ideal for installation in kitchens, wet bars, break rooms, and other settings

Durable stainless steel construction for safe installation in outdoor spaces

Front-breathing design lets you make the best use of space by installing your appliance under the counter

32" height allows installation under lower ADA-compliant counters

Leveling legs can be extended up to 2", with a slide-out kickplate that allows you to raise the overall height from 32" up to 34 1/4" if used under higher cabinets

Internal pump allows more flexibility in placing the unit

ETL-S listed to NSF-7 Standards for use in commercial establishments

High capacity production to keep clear gourmet ice on hand

Unique clear ice shape for an upscale presentation, while its dense structure means it melts slower, making it ideal for cocktails where dilution needs to be controlled

Allows for seamless integration with other appliances

Horizontally mounted handle in stainless steel

Provides easy operation of the unit with indicator lights for each stage of the production process

Function allows users to choose from small, medium, or large clear ice cubes

Clean mode allows you to periodically clean the system as needed with a neutral detergent

Control panel light will flash 180 days after each cleaning cycle as a reminder to run that process

Mode memory function allows the icemaker to its last setting in the event of a power interruption

Optional setting lets you disable the lighting and alarms during periods of religious observance

Ice scoop included for added convenience, with an interior hook to keep it in place inside

Space-saving design with no exposed coils that offers easier cleanability

Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

For this unit with the door opening from the other side, see model BIM63OSADA

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Environmentally friendly design with no ozone-damaging chemicals

Complies with California Health and Safety Code 116876 lead leaching requirements per NSF NSF/ANSI/CAN 61-2022 standard, as well as with lead content requirements for lead free plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act Section 1417(d) per NSF/ANSI/CAN 372-2022 standard
