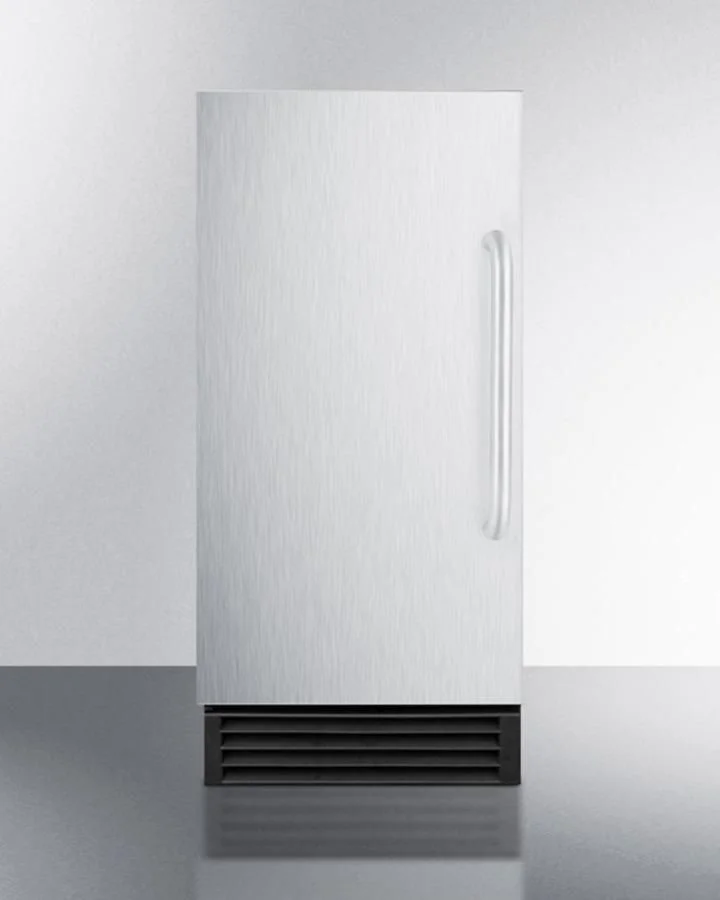

Summit Built-in 45 Lb. Clear Icemaker, ADA Compliant in Stainless Steel

Nominal Height

32.0" (81 cm)

Height of Cabinet

31.88" (81 cm)

Height to Hinge Cap

32.0" (81 cm)

Nominal Width

15.0" (38 cm)

Width

14.63" (37 cm)

Nominal Depth

24.0" (61 cm)

Depth

22.5" (57 cm)

Depth with Handle

24.5" (62 cm)

Depth with door at 90(degree)

36.25" (92 cm)

Defrost Type

Automatic

Door

Stainless Steel

Cabinet

Black

US Electrical Safety

UL

Canadian Electrical Safety

ULC

Sanitation

ETL-S

Amps

2.5

Voltage/Frequency

115 V AC/60 Hz

Weight

100.0 lbs. (45 kg)

Parts & Labor Warranty

1 Year

Compressor Warranty

5 Years

UPC

761101021959

Plug Type

NEMA 5-15P

Door Swing

LHD

Reversible

Yes

Drain Required

Yes

Daily Ice Production

45.0 lbs. (20 kg)

Ice Storage Capacity

25.0 lbs. (11 kg)

Ice Shape

Cube

Size of Cube

7/8" x 7/8" x 7/8"

Number of Ice Cube Sizes

1

Fan Type

Exterior

Refrigerant Type

R290

Refrigerant Amount

1.87 oz.

High Side PSI

286.0

Low Side PSI

110.0

Interior Height

18.75" (48 cm)

Interior Width

11.25" (29 cm)

Interior Depth

15.5" (39 cm)

Interior Light

Yes

Level Legs

4

GTIN

00761101021959

EAN

0761101021959

UPC

761101021959

Efficient performance for commercial use

NSF listed for use in commercial establishments

Internal pump allows more flexibility in placing the unit

Simplify appliance care by letting your icemaker defrost itself

Keep your options flexible with a reversible door that is easy to switch when your arrangement changes; Unit ships LHD but can be reversed in our factory or by the user

Make the best use of space by installing your icemaker under the counter

Professional styling with lasting durability

A curved handle in brushed stainless steel offers an easy grip

Allows the icemaker to be used as a freestanding model

Ice stays solid longer in this cold-protected bin

Clear cubes offer the perfect cooling of your beverages; NOTE: ice is produced in sheets and can easily be broken into cubes using the provided scoop

Included for your convenience

Environmentally friendly design without ozone-damaging chemicals

Complies with California Health and Safety Code 116876 lead leaching requirements per NSF NSF/ANSI/CAN 61-2022 standard, as well as with lead content requirements for lead free plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act Section 1417(d) per NSF/ANSI/CAN 372-2022 standard

32 3/8" height fits under lower ADA compliant counters (note: if installing under a counter, you must add a notch for the hinge that reaches 32 9/16")
